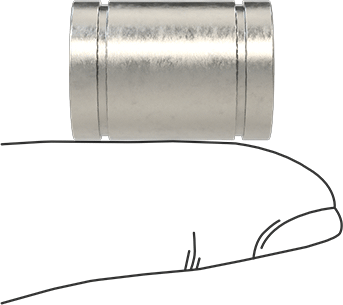

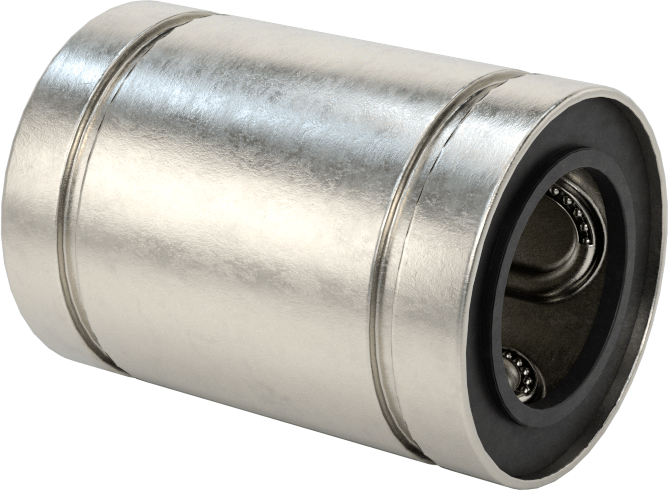

Fixed Alignment Ball Linear Bearing
440C Stainless Steel Bearing with Stainless Steel Ball, for 3/8" Shaft Diameter
Alignment Style | Fixed |
Material | |
Bearing | 440C Stainless Steel |
Ball | Stainless Steel |
For Shaft Diameter | 3/8" |
Overall Length | 7/8" |
OD | 5/8" |
OD Tolerance | -0.0005" to 0" |
For Housing ID | 0.6250" to 0.6255" |
With Retaining Ring Grooves | Yes |
Retaining Ring Groove End-to-End Length | 0.64" |
With End Seals | Yes |
Load Capacity | |
Dynamic | 50 lb. |
Static | 70 lb. |
Temperature | |
Minimum | -4° F |
Maximum | 248° F |
For Shaft Material | Stainless Steel, Steel |
Bearing Type | Ball |
For Minimum Shaft Hardness | |
Steel | Rockwell C56 |
Stainless Steel | Rockwell C56 |
For Shaft Type | Round |
ID | 0.375" |
ID Tolerance | -0.0004" to 0" |
Linear Bearing Component | Bearing |
Lubrication | Required |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5012 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
Bearings are for use with round end-supported shafts. To install, slide bearings into a housing (not included).
Fixed Alignment—Fixed-alignment bearings are for use where shaft misalignment is unlikely.
Stainless Steel Ball—Bearings with stainless steel balls are more corrosion resistant than bearings with steel balls.
With Retaining Ring Grooves—For bearings with retaining ring grooves, secure with two retaining rings (sold individually).
With End Seals—Bearings with end seals keep lubricant in and dust out.

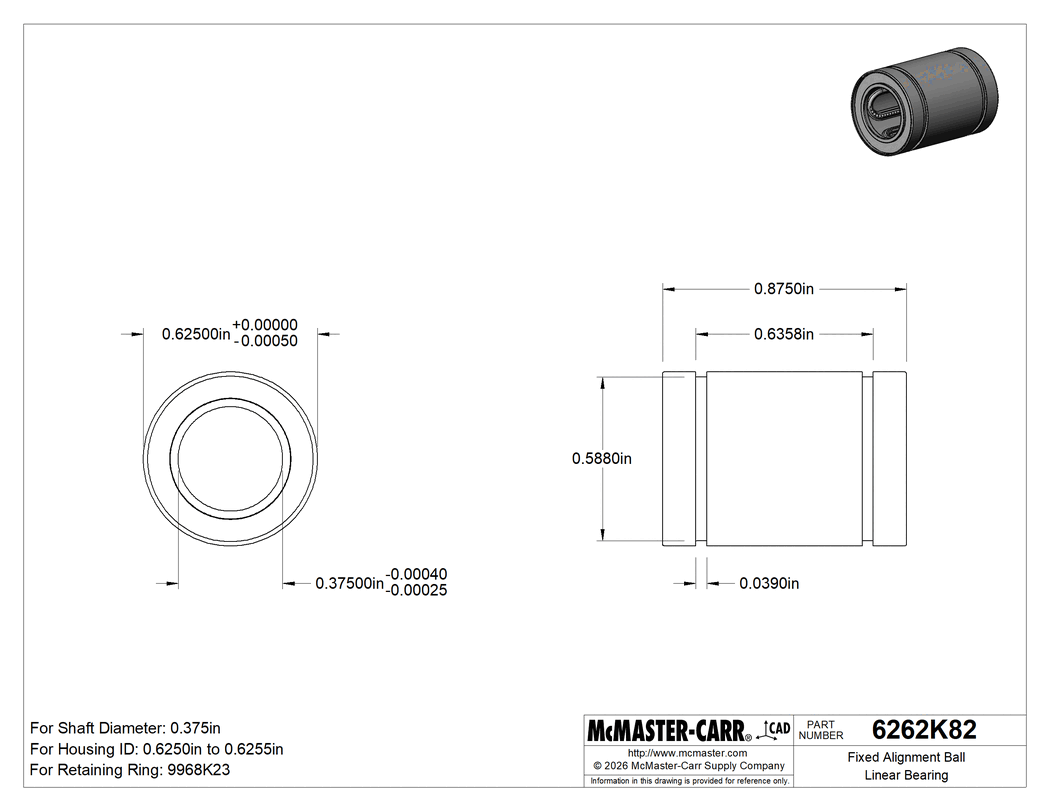

The information in this 3-D model is provided for reference only.
