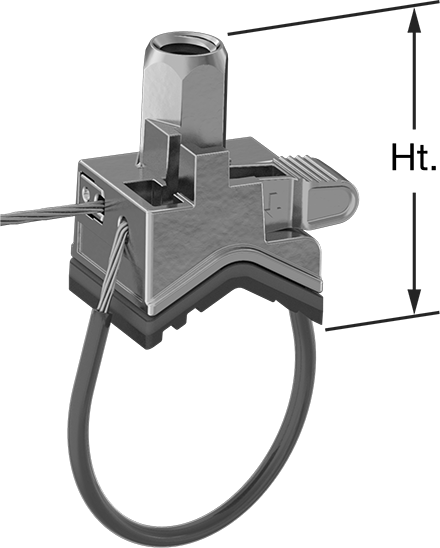

Adjustable Clamping Hanger
Adjustable Clamping Hanger
Hanger Type | Clamp |
Material | Zinc |
ID | |
Inch | 7/8" to 6 5/8" |
Metric | 22 mm to 168 mm |
For Pipe Size | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6 |
For Thread Size | 3/8"-16 |
Weight Capacity | 170 lb. |
Cushion | |
Material | EPDM |
Color | Black |
Certification | UL Listed |
Closure Method | Pull Through |
For Conduit Trade Size | |
EMT | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6 |
IMC | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6 |
Rigid | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6 |
For Copper Tube Size | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6 |
Height | 1 5/8" |
Includes | Quick-Release Key |
Length | 1 3/16" |
Load Location | Bottom |
Mount Type | Through Hole |
Mounting Location | Threaded Rod, Overhead |
Performance | Adjustable |
Sleeve Material | Nylon |
Specifications Met | ANSI/MSS SP-58 Type 36 |
Temperature | -40° F to 230° F |
UL File Number | E251132 |
Width | 1 1/8" |
Wire Rope | |
Material | Steel |
Diameter | 5/64" |
Length | 2 ft. |
Class | 7 × 7 |
Country of Origin | United Kingdom |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Fit a range of line sizes without any cutting, then easily adjust after they're installed. Feed the wire rope through the hanger until it's the size you need. The hanger clicks as you pull the wire so you know it's locked in place, just like a cable tie. Press the quick-release key to loosen the hanger, such as to add insulation, or to remove the hanger and install it elsewhere.

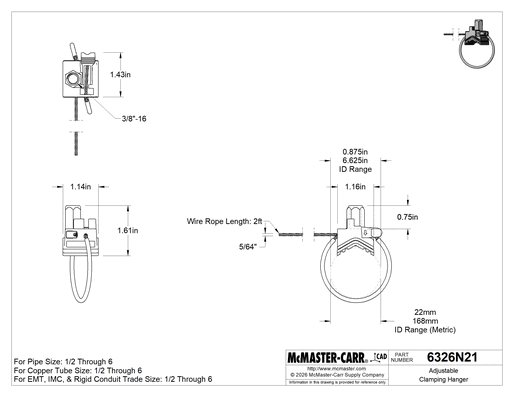

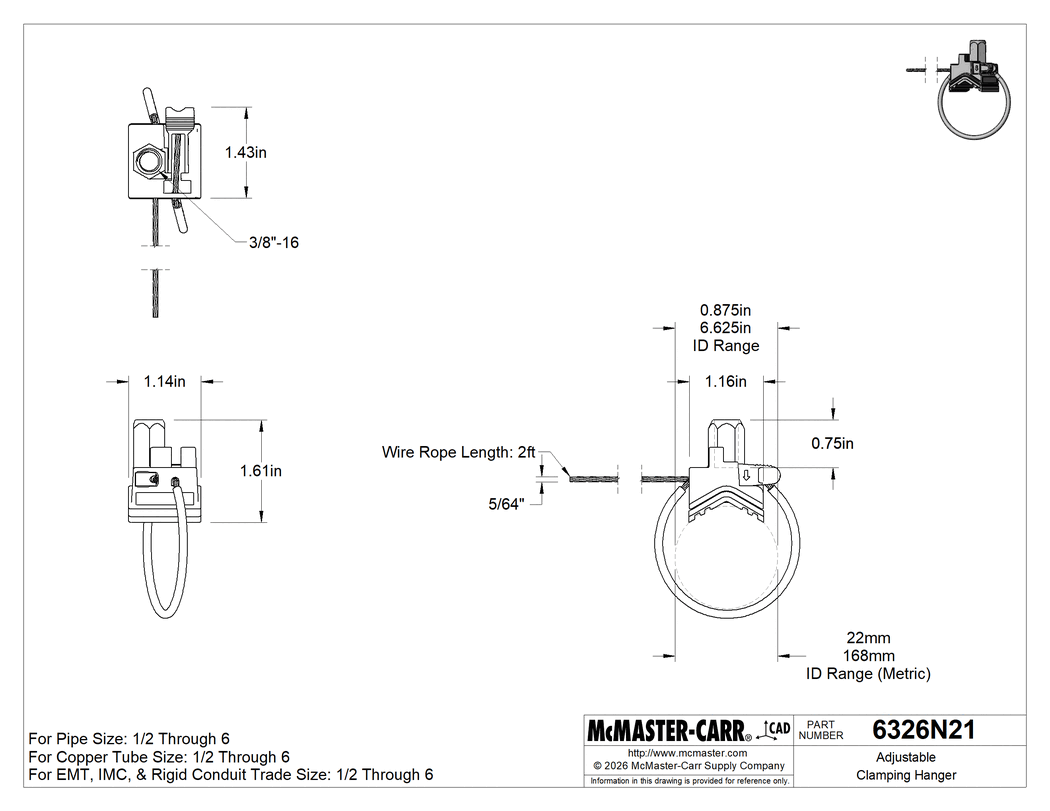

The information in this 3-D model is provided for reference only.
