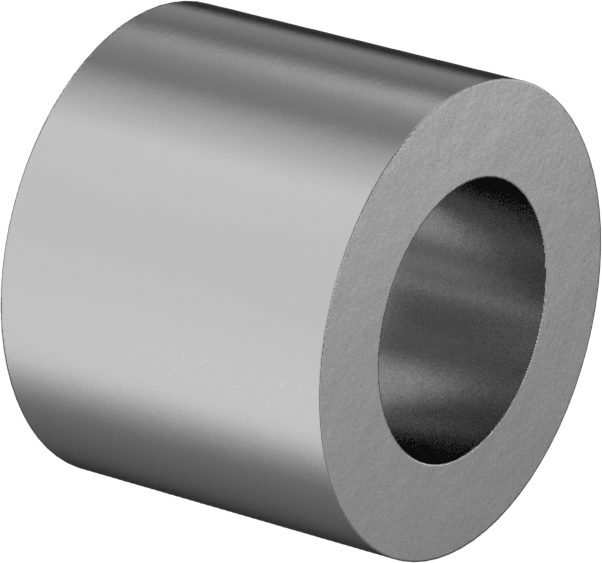

High-Strength 932 Bearing Bronze Sleeve Bearing
for 3/16" Shaft Diameter and 5/16" Housing ID, 1/4" Long
Lubrication | Required |
Performance | Corrosion Resistant, High Load, High Temperature, Low Temperature |
Material | 932 Bearing Bronze |
For Shaft Diameter | 3/16" |
For Housing ID | 5/16" |
Length | 1/4" |
Length Tolerance | -0.005" to 0.005" |
Dynamic Radial Load Capacity @ Speed | 185 lb. @ 120 rpm |
Temperature Range | -350° F to 450° F |
Bearing Type | Plain |
For Load Direction | Radial |
For Shaft Type | Round |
ID | 0.1875" |
ID Tolerance | -0.001" to 0.001" |
OD | 0.3145" |
OD Tolerance | 0" to 0.001" |
P Max | 4,000 psi |
Plain Bearing Type | Sleeve |
PV Max | 75,000 |
Shaft Mount Type | Slip Fit |
System of Measurement | Inch |
V Max | 750 sfpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These bearings don’t come with a lubricant, so you can select the oil that meets the needs of your application. You’ll need to refill the oil, so make sure the bearing is located where you can access it. All are fabricated and inspected in the U.S.
With no moving parts, sleeve bearings are the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.
High-Load 932 Bearing Bronze—These bearings are strong enough for sudden starts and stops, plus they resist wear and tear. They are cast from an alloy of leaded tin bronze for uniform rigidity and strength. Also known as 660 leaded bronze bearings.

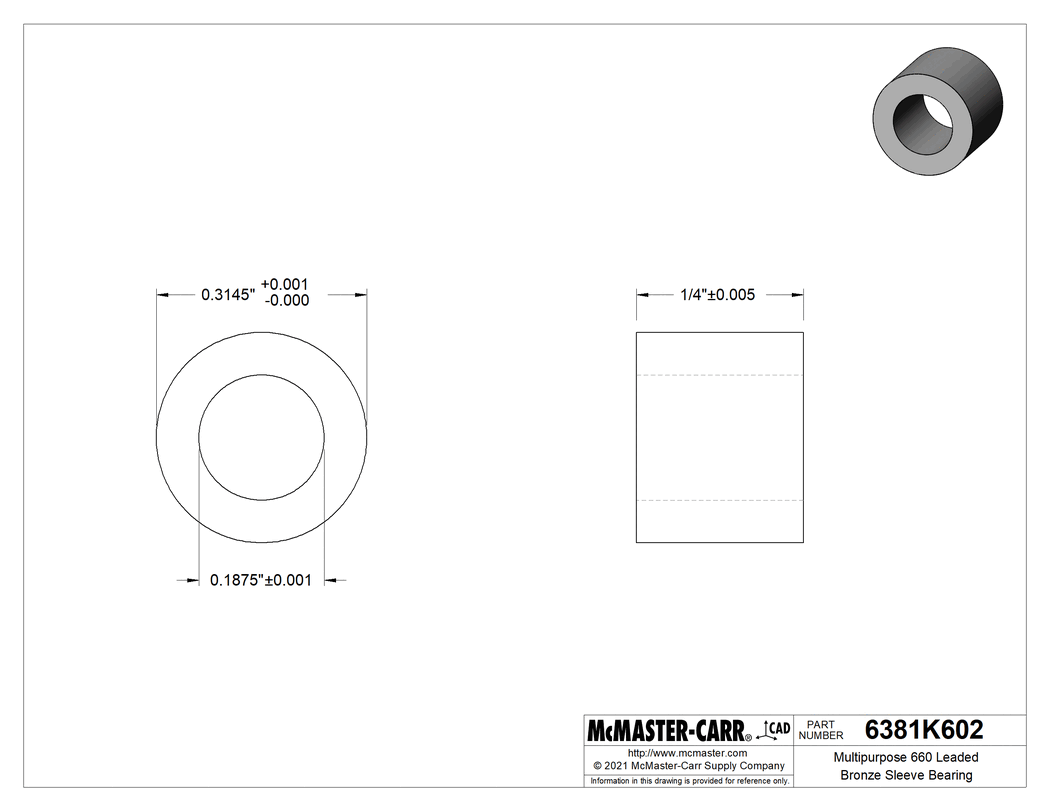

The information in this 3-D model is provided for reference only.
