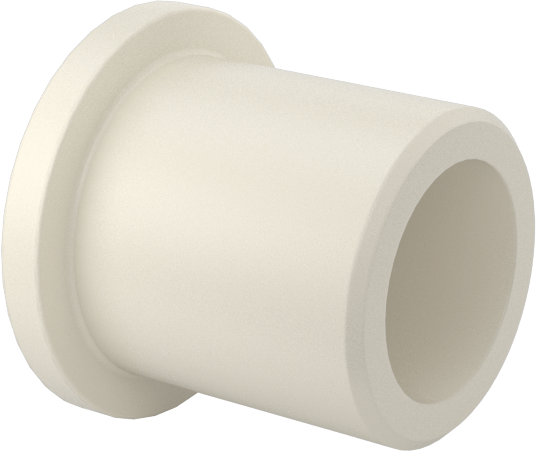

Dry-Running Nylon Sleeve Bearing
Flanged, for 5/16" Shaft Diameter and 7/16" Housing ID, 1/2" Long
Lubrication | Not Required |
Performance | Dry Running |
Material | Nylon |
For Shaft Diameter | 5/16" |
For Housing ID | 7/16" |
Length | 1/2" |
Length Tolerance | -0.015" to 0.015" |
Flange OD | 9/16" |
Flange Thickness | 1/16" |
Dynamic Radial Load Capacity @ Speed | 47 lb. @ 120 rpm |
Dynamic Thrust Load Capacity @ Speed | 29 lb. @ 120 rpm |
Color | White |
Temperature Range | -20° F to 250° F |
Bearing Type | Plain |
For Load Direction | Combined Radial and Thrust |
For Shaft Type | Round |
ID | 0.3125" |
ID Tolerance | 0" to 0.005" |
OD | 0.4375" |
OD Tolerance | 0" to 0.005" |
P Max | 400 psi |
Plain Bearing Type | Flanged Sleeve |
PV Max | 3,000 |
Shaft Mount Type | Slip Fit |
System of Measurement | Inch |
V Max | 350 sfpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.5040 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made of naturally slippery plastic so you’ll never have to add lubricant. They’re ideal for clean environments where you need to prevent oil drips or graphite flakes. Compared to metal bearings, they are lighter and will never rust.
Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.
Nylon—The most popular choice, nylon is wear resistant yet economical. Keep in mind, though, that it will swell and weaken when exposed to moisture.
Secure
Reduce friction

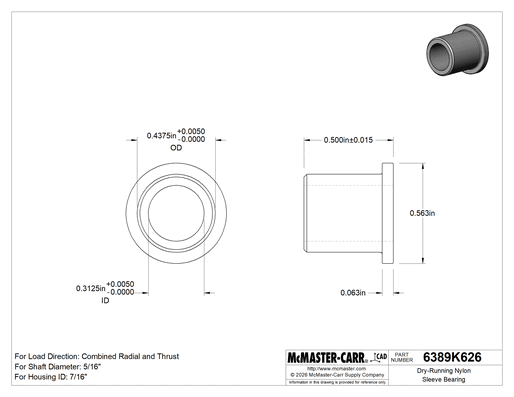

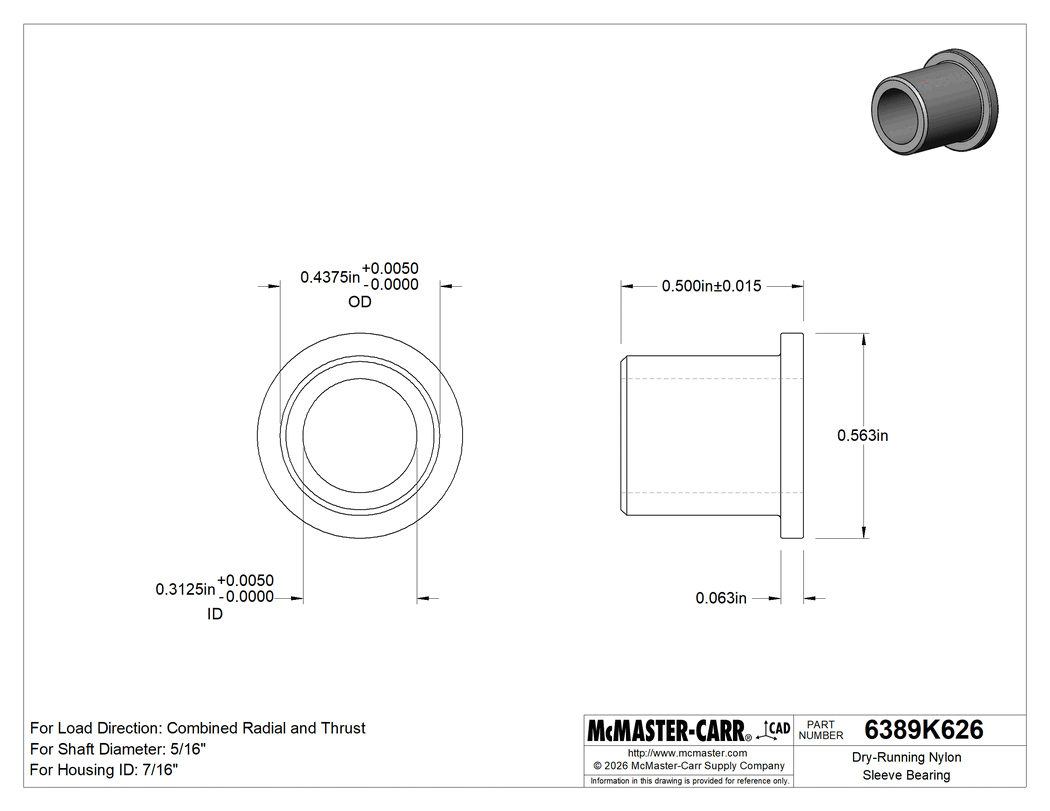

The information in this 3-D model is provided for reference only.
