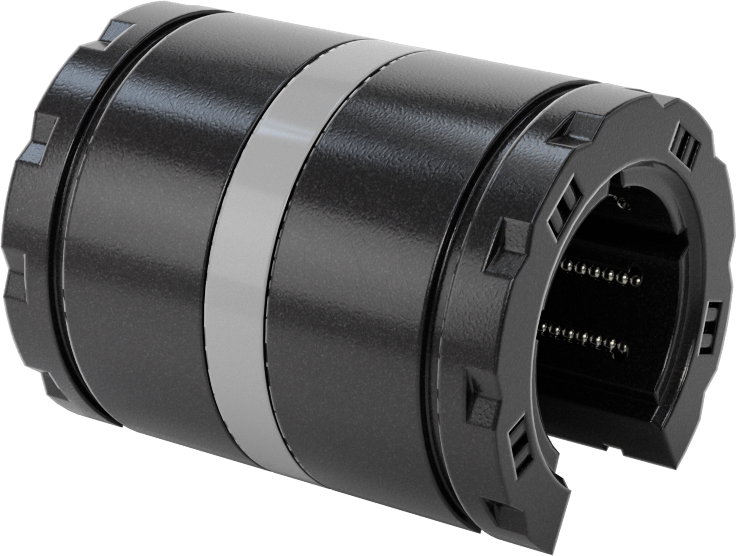

Self Aligning Ball Linear Bearing
for Support Rail Shafts with 3/4" Diameter, High-Load, Steel Ball
Alignment Style | Self-Aligning |
Misalignment Capability | 0.5° |
Material | |
Bearing | Acetal |
Ball | Steel |
For Shaft Diameter | 3/4" |
Overall Length | 1 5/8" |
OD | 1 1/4" |
OD Tolerance | 0" to 0.001" |
Width | 13/32" |
For Housing ID | 1.2500" to 1.2505" |
With Retaining Ring Grooves | Yes |
Retaining Ring Groove End-to-End Length | 1.285" |
With End Seals | Yes |
Dynamic Load Capacity | 1,100 lb. |
Maximum Temperature | 176° F |
For Shaft Material | Stainless Steel, Steel |
Bearing Type | Ball |
For Minimum Shaft Hardness | |
Steel | Rockwell C50 |
Stainless Steel | Rockwell C50 |
For Shaft Type | Round with Support Rail |
ID | 0.750" |
ID Tolerance | -0.0005" to 0" |
Linear Bearing Component | Bearing |
Lubrication | Required |
Performance | High Load |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5012 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
Designed for heavy loads, these bearings have higher load capacities than comparable standard linear ball bearings for support rails. Use them for applications that require maximum rigidity. All are self-aligning to compensate for shaft misalignment. To install, slide bearings into a housing (not included). For bearings with retaining ring grooves, secure with two retaining rings (sold individually).
With End Seals—Bearings with end seals keep lubricant in and dust out.

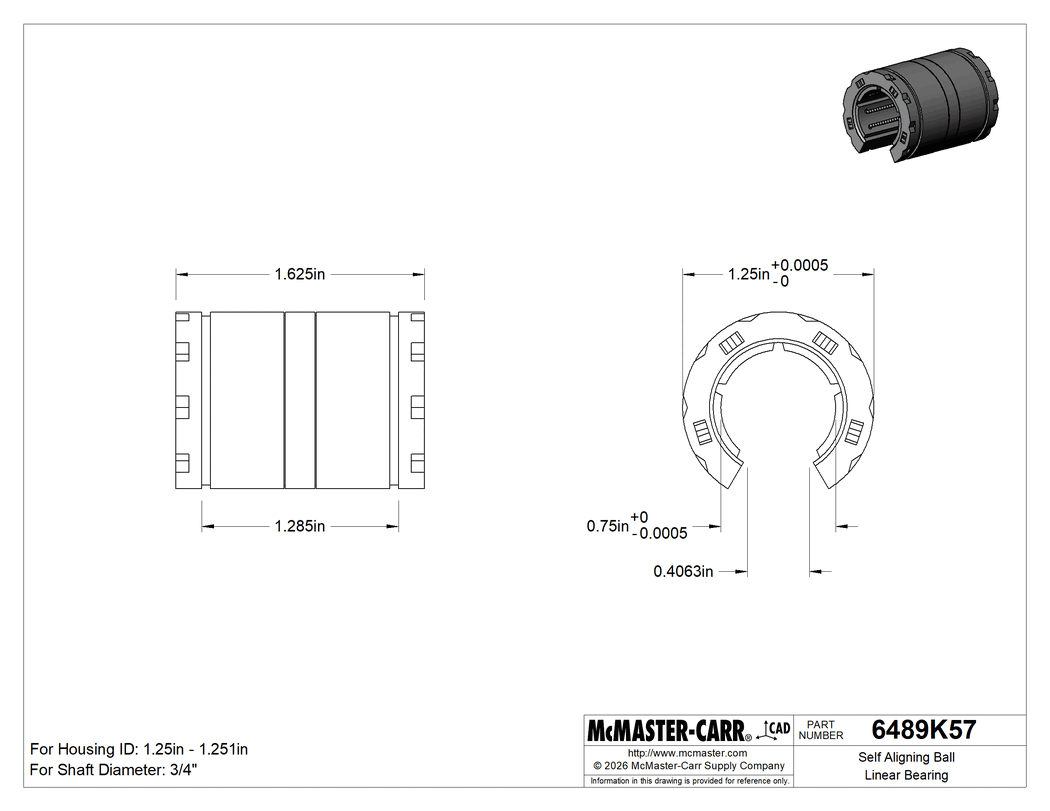

The information in this 3-D model is provided for reference only.
