    303 Stainless Steel Sight

    for Clear Liquid, 1 NPT Male

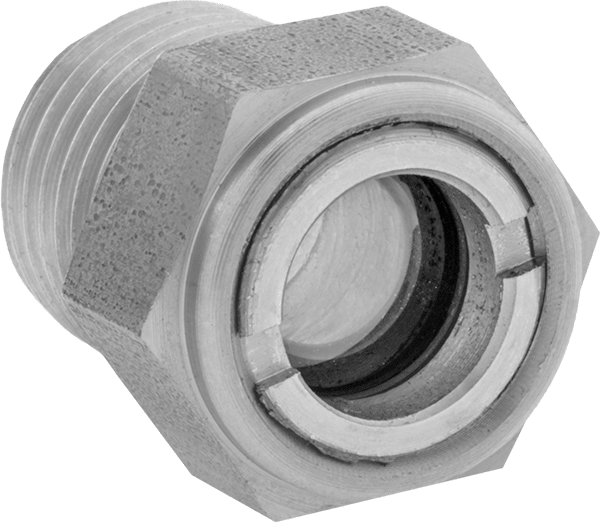

    Image of Product. Front orientation. 303 Stainless Steel Sight, for Clear Liquid, 1 NPT Male.

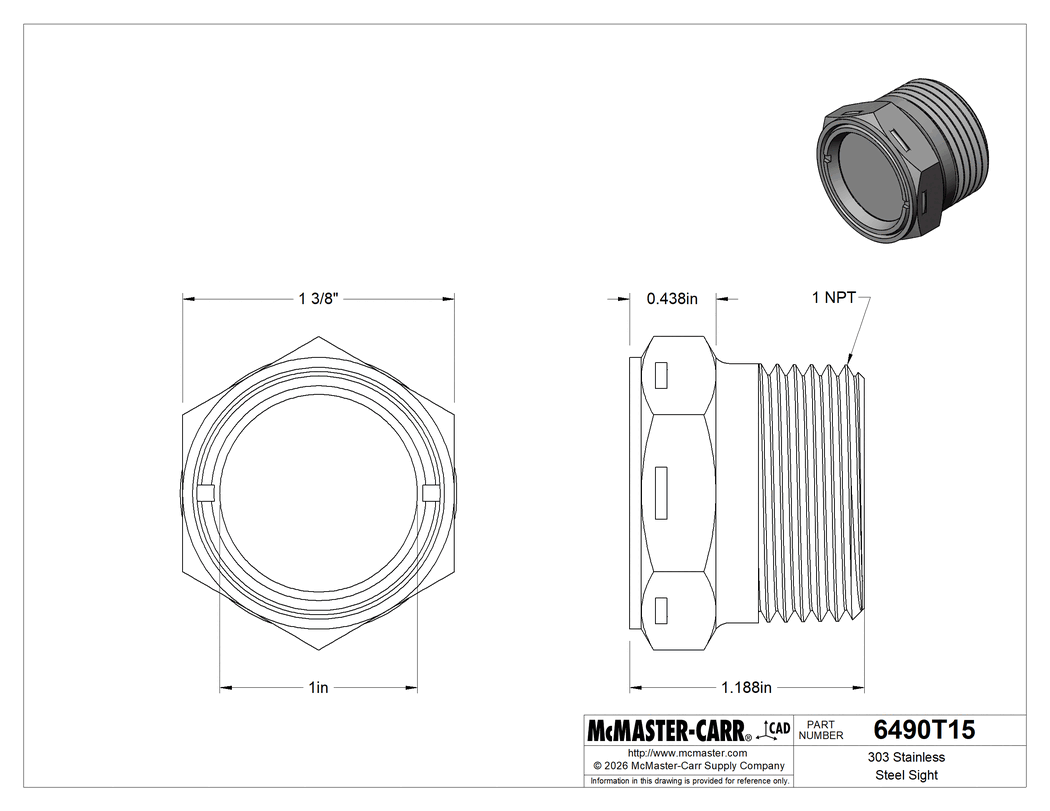

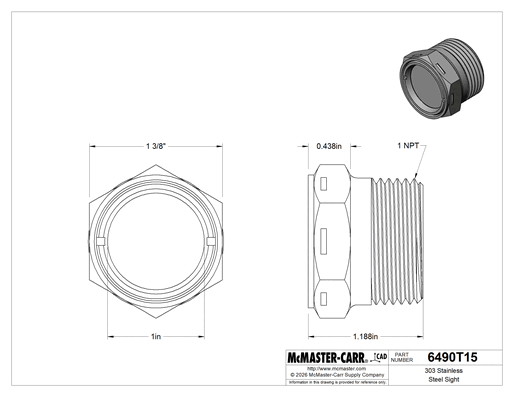

    Technical Drawing of 303 Stainless Steel Sight, for Clear Liquid, 1 NPT Male.
    2-D PDF
    000000 each
    6490T15
    In stock
    6490T15
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    303 Stainless Steel

    Window

    Diameter

    1"

    Material

    Glass

    Thread Type

    NPT

    Gender

    Male

    For Liquid Appearance

    Clear

    Pipe Size

    1

    Hex Size

    1 3/8"

    Maximum Pressure @ Temperature

    100 psi @ 70° F

    Temperature Range

    0° F to 225° F

    For Use With

    Water, Diesel Fuel, Hydraulic Fluid (Petroleum Based)

    Seal Material

    Buna-N

    Connection

    Connects To

    Pipe

    Fitting Connection

    Threaded

    Mount Type

    Screw In

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    702000.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These sights have a glass window. Screw them into threaded holes on tanks, gear cases, bearing housings, and mixers to see inside.

    303 Stainless Steel—303 stainless steel sights are more corrosion resistant than brass, steel, and aluminum sights.

    The information in this 3-D model is provided for reference only.
