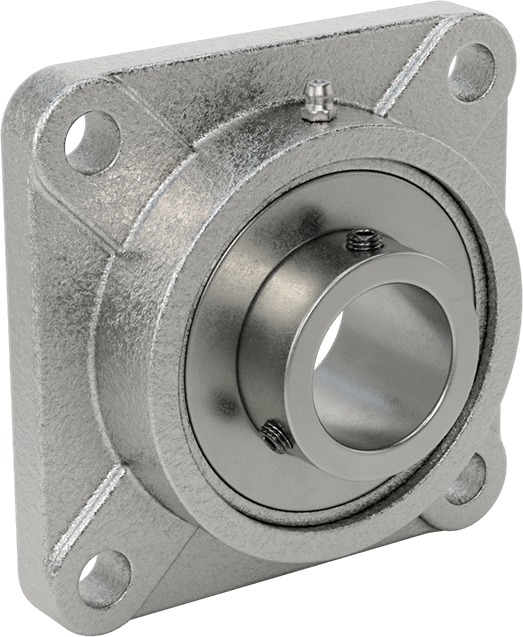

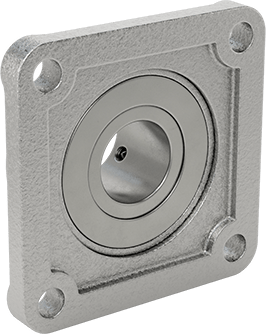

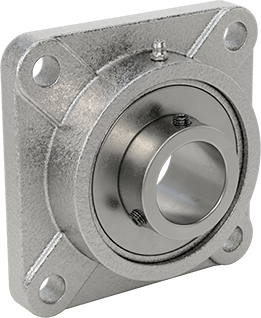

Mounted Ball Bearing with Nickel-Plated Iron Housing
Four-Bolt Flange, Set Screw Mount, for 1-1/2" Shaft Diameter
Mounted Bearing Type | Four-Bolt Flange Mount |
Bearing Type | Ball |
Housing Material | Nickel-Plated Cast Iron |
Shaft Mount Type | Set Screw |
For Shaft Diameter | 1 1/2" |
Overall | |
Height | 5 1/8" |
Length | 5 1/8" |
Width | 2 1/32" |
Flange Thickness | 19/32" |
Dynamic Radial Load Capacity | 6,540 lb. |
Maximum Rotation Speed | 3,000 rpm |
Bearing Material | Steel |
Bearing Seal Type | Sealed |
Misalignment Capability | 1.5° |
Manufacturer | McMaster-Carr Approved |
ABEC Rating | 1 |
Alignment Style | Self-Aligning |
For Load Direction | Radial |
For Shaft Type | Round |
Grease Fitting Included | Yes |
Grease Fitting Thread Size | 1/4"-28 |
Grease Fitting Thread Type | UNF |
ID | 1.5" |
ID Tolerance | -0.0005" to 0" |
Lubricant | Grease with Lithium Thickener |
Lubrication | Lubricated |
Mounting Hole | |
Hole Diameter | 35/64" |
Hole Center-to-Center | 4 1/64" |
Fasteners Included | No |
Number of Set Screws Included | 2 |
Performance | Corrosion Resistant |
Set Screw Thread Size | 5/16"-24 |
Static Radial Load Capacity | 4,000 lb. |
System of Measurement | Inch |
Temperature | 0° F to 210° F |
Weight | 4.2 lb. |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C999 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848320.0010 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Smoother than smooth—the balls inside these bearings roll nearly friction-free. The four-bolt flange supports shafts with a stronger connection to the mounting surface than two-bolt alternatives.
Lubricate regularly to keep your bearing in tip-top shape. Bearings with seals keep lubricants in and contaminants out, and come packed with grease. Open bearings require initial lubrication and offer less protection against dust and debris.
Nickel-Plated Cast Iron Housing—Combine the strength of iron with the corrosion resistance of stainless steel at an affordable price point. Nickel-plated iron is also unlikely to chip.
Set Screw—Turn the screw to lock your shaft in place. A simple, reliable choice, set screws grip tightly, but they can mar shaft surfaces.
Misalignment Capability—Bearings compensate for as much shaft misalignment as the degree listed. This extends the life of the bearing and protects against wear if shafts are slightly askew.

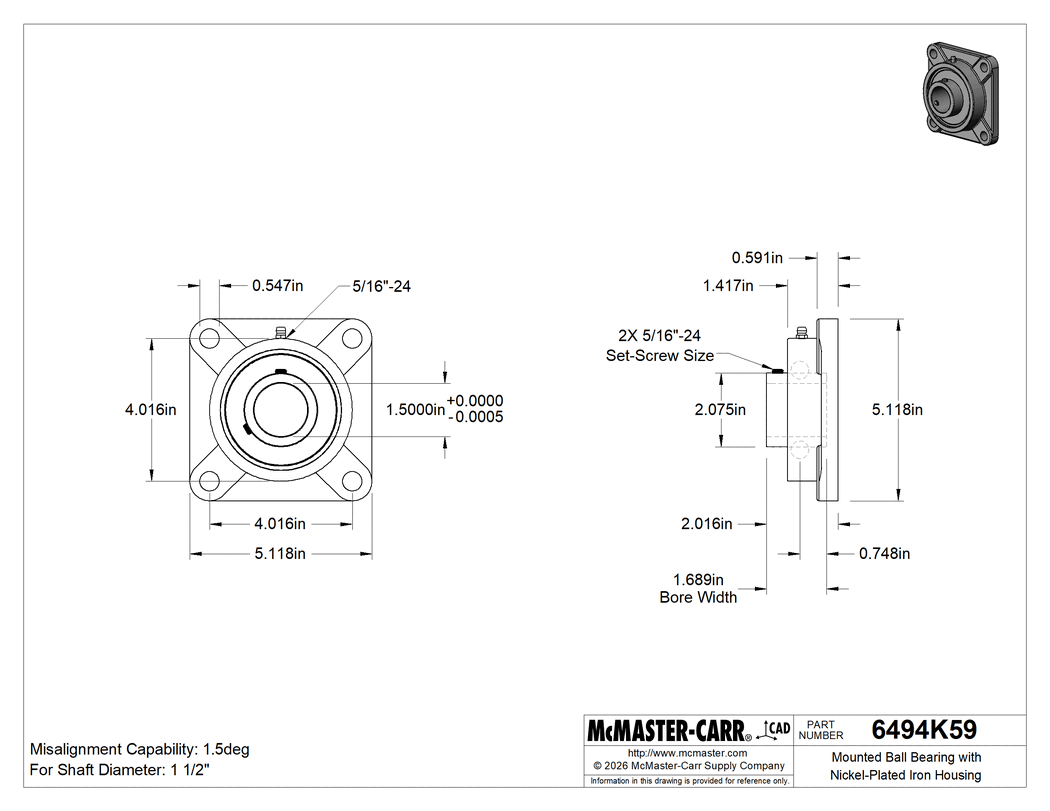

The information in this 3-D model is provided for reference only.
