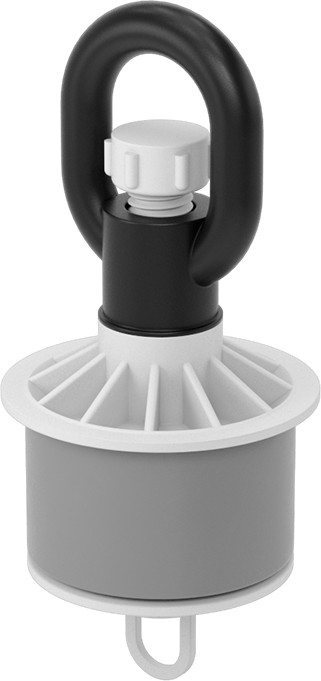

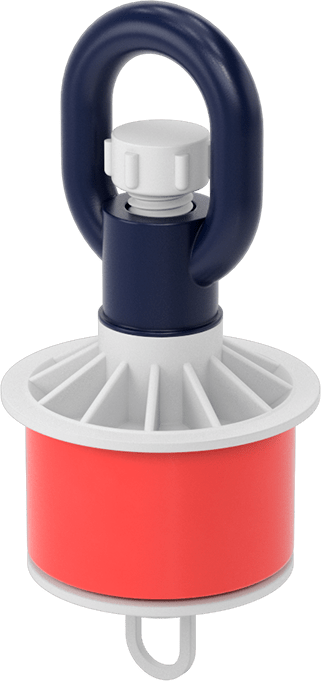

    Expansion Plug

    for Conduit Trade Size 3

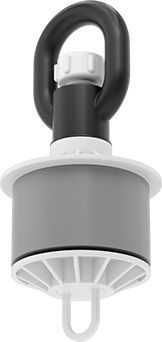

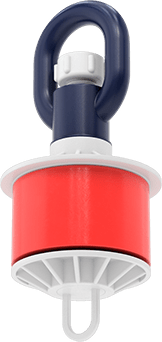

    Image of Product. Bottom orientation. Expansion Plug, for Conduit Trade Size 3.

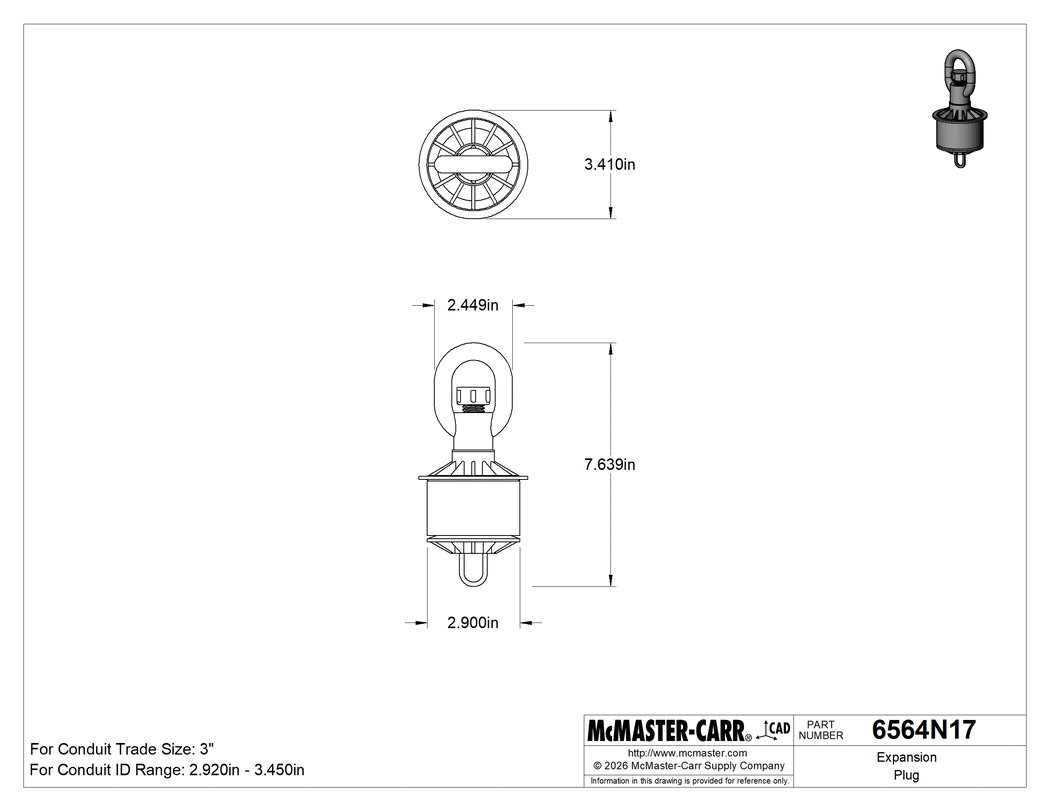

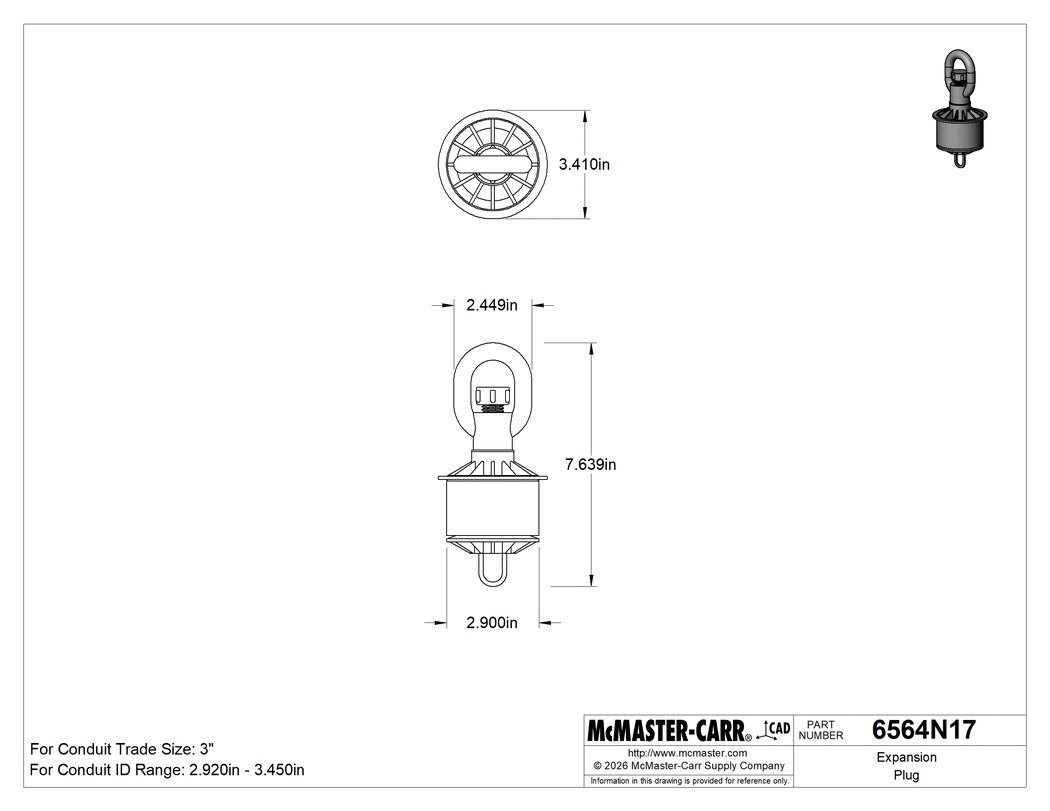

    Technical Drawing of Expansion Plug, for Conduit Trade Size 3.

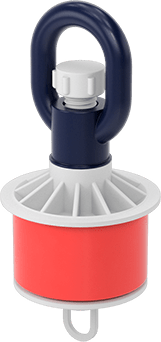

    Image of Product. Bottom orientation. Expansion Plug, for Conduit Trade Size 3.

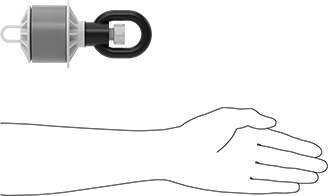

    Image of Product. Side1 orientation. Contains SizingReference. Expansion Plug, for Conduit Trade Size 3.
    2-D PDF
    000000 each
    6564N17
    In stock
    6564N17
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Expansion Plug Type

    Loop Nut

    Material

    Seal

    Synthetic Rubber

    Loop

    Plastic

    Plate

    Plastic

    For Conduit

    Trade Size

    3

    ID

    2.92" to 3.45"

    Overall Height

    7 5/8"

    Features

    Internal Eyebolt

    Minimum Temperature

    Not Rated

    Maximum Temperature

    Not Rated

    Sealing Location

    End of Conduit

    With Bypass

    No

    Country of Origin

    Mexico

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392350.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Seal conduit openings to keep water, dirt, and animals from damaging your wiring. When you twist the nut on top of these plugs, a rubber seal expands to close off the end of your conduit. Tie a rope or pull line to the loop at either end of these plugs to hold them in place during installation.
