Swivel Leveling Mount
with Square Bracket, 303 Stainless Steel Base, 1/2"-13 Size 304 Stainless Steel Stud
Mount Movement | Swivel |
Mount Type | Bracket |
Base Material | 303 Stainless Steel |
Stud Material | 304 Stainless Steel |
Bracket Type | Square |
With Cushion | No |
Thread Size | 1/2"-13 |
Thread Length | 3" |
Capacity per Mount | 500 lb. |
Swivel Range of Motion | 25° |
Base | |
Diameter | 1 7/8" |
Shape | Round |
Overall Height | 4 5/16" |
Bracket | |
Length | 3" |
Width | 3" |
Height | 1 1/16" |
Material | Stainless Steel |
Mounting Holes | |
Number of | 4 |
Diameter | 5/16" |
Center-to-Center Length | 2 3/8" |
Fasteners Included | No |
Hex Nut | |
Material | 302 Stainless Steel |
Width | 3/4" |
Includes | Locknut |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Thread Type | UNC |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |

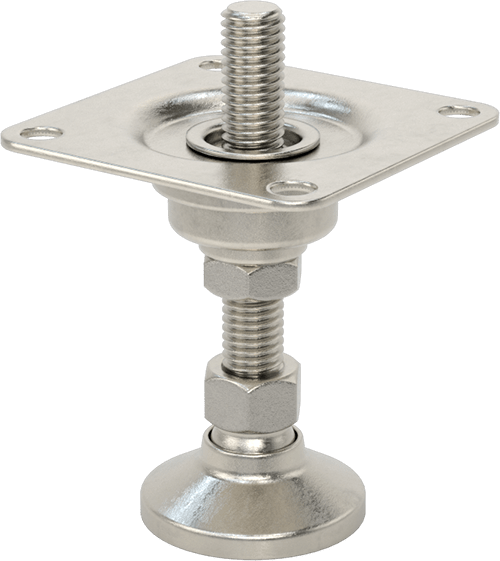

Install these mounts on the bottom of equipment without feet using the heavy duty bracket. They have a ball-and-socket joint in the base that swivels to compensate for slightly sloped and pitted floors. You can also use the bracket to make your equipment mobile by replacing the mount with a caster that has a threaded stem.
303 Stainless Steel Base—The choice for most wet locations, these mounts can withstand repeated washdowns without corroding. However, they won't hold up to cleaning solutions that contain harsh chemicals like 316 stainless steel can.

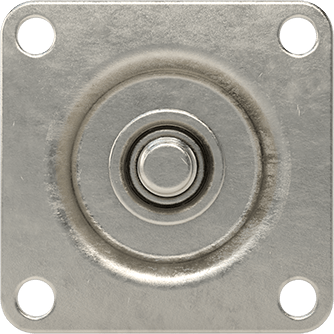

Square Bracket—Fasten these mounts to the bottom of flat surfaces such as storage cabinets and lockers.
Support load
Connect

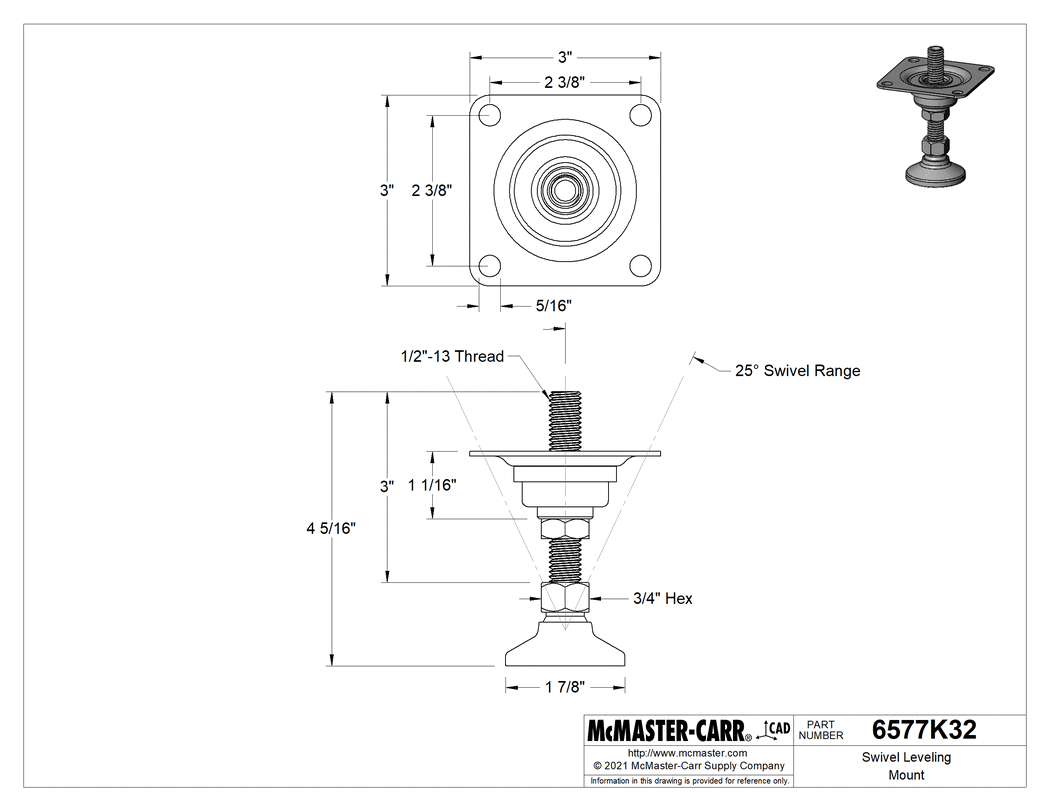

The information in this 3-D model is provided for reference only.
