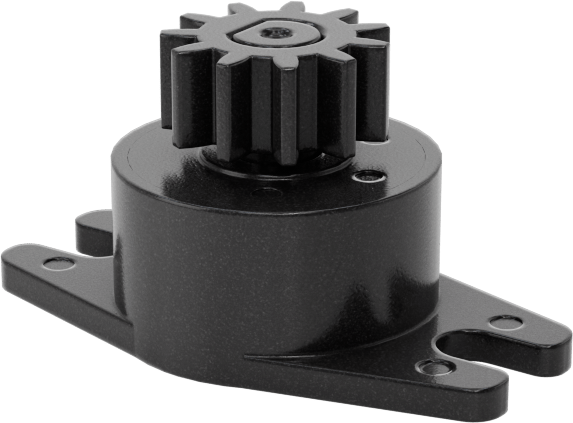

Rotary Speed Limiter
Geared, 360 Degree Clockwise, 2.88 in.-oz. Torque
Shaft | |
Diameter | 0.16" |
Length | 0.18" |
Type | Geared |
Style | A |
Rotation | |
Angle | 360° |
Direction | Clockwise |
Torque | 2.88 in·ozf |
Torque Tolerance Range | -0.8 in·ozf to 0.8 in·ozf |
Overall | |
Length | 1.08" |
Width | 0.59" |
Height | 0.55" |
Gear Module | 0.8 |
Gear Pitch Diameter | 8.8 mm |
Gear Material | Acetal |
Temperature Range | 32° F to 122° F |
Maximum Cycles per Minute | Not Rated |
Maximum Rotation Speed | 50 rpm |
Material | Polycarbonate |
Mounting Holes | |
Diameter | 0.13" |
Center-to-Center | 0.83" |
Number of | 2 |
Fasteners Included | No |
Adjustability | Fixed |
Force Mechanism | Oil |
Gear Type | Spur |
Maximum Cycles | 50,000 |
Maximum Torque Tolerance | 0.8 in·ozf |
Minimum Torque Tolerance | -0.8 in·ozf |
Mounting Position | Any Angle |
Number of Teeth | 11 |
Pressure Angle | 20° |
Refillable | No |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Install these rotary speed limiters at the hinges of small lids, doors, and access panels for smooth, quiet motion. They're often used in electronics applications.
Geared Shaft—Speed limiters with a geared shaft must be used with gears that have the same 20° pressure angle and module.
360° Rotation—Speed limiters with a 360° rotation angle are often used to move small hoods, flaps, and fans. A cycle is one shaft rotation.
Clockwise Rotation—Clockwise and counterclockwise speed limiters dampen motion in the listed direction, moving freely in the opposite direction. Use them in processes that require returning a part to its original position.

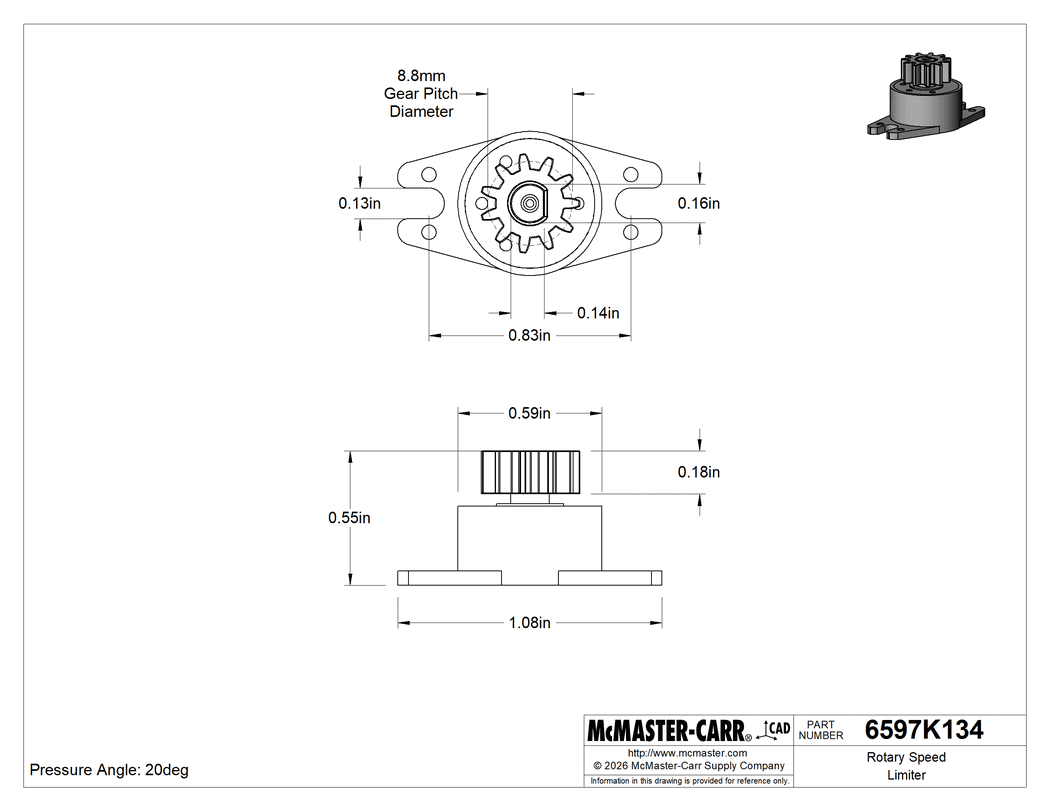

The information in this 3-D model is provided for reference only.
