    303 Stainless Steel Adjustable Handle

    with M10 x 1.5 mm Thread Size x 60 mm Long Stud, 58 mm Projection

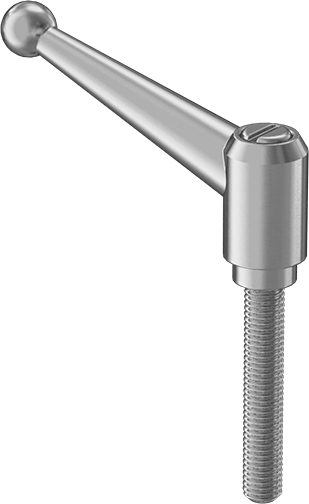

    Image of Product. Front orientation. 303 Stainless Steel Adjustable Handle, with M10 x 1.5 mm Thread Size x 60 mm Long Stud, 58 mm Projection.

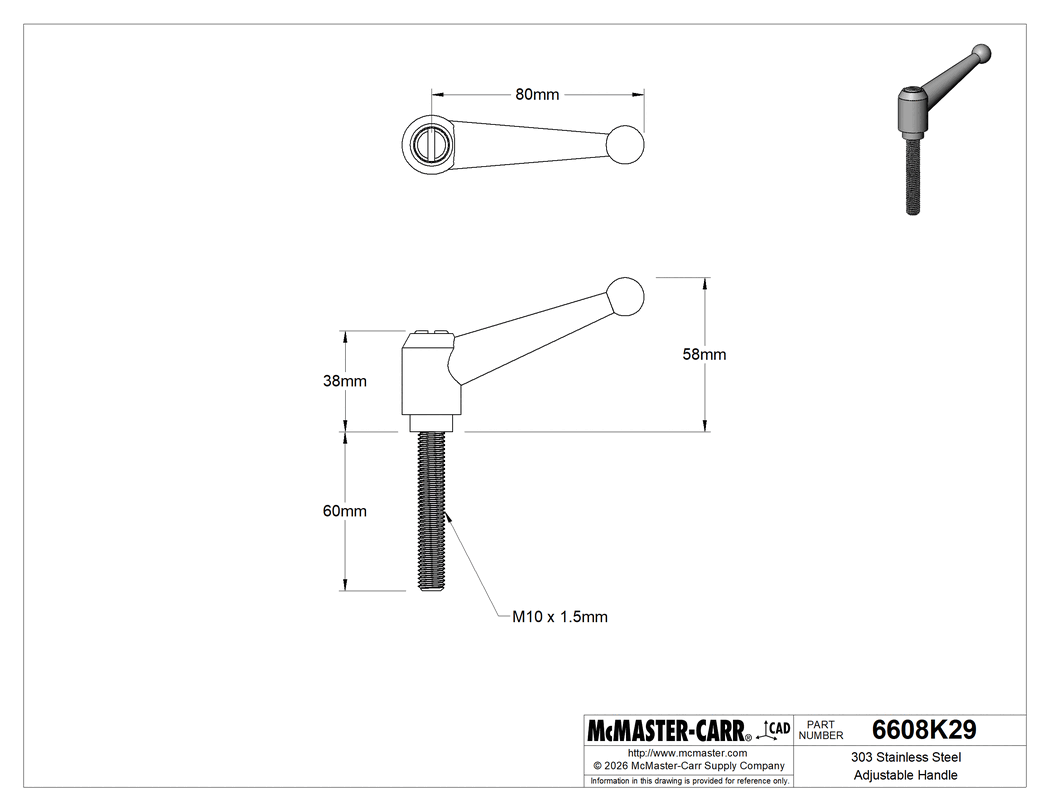

    Technical Drawing of 303 Stainless Steel Adjustable Handle, with M10 x 1.5 mm Thread Size x 60 mm Long Stud, 58 mm Projection.
    Image of Attribute. Front orientation. Contains Annotated. 303 Stainless Steel Adjustable Handle, with M10 x 1.5 mm Thread Size x 60 mm Long Stud, 58 mm Projection.
    2-D PDF
    000000 each
    6608K29
    In stock
    6608K29
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Style

    3

    Mount Type

    Threaded Stud

    Material

    303 Stainless Steel

    Thread

    Size

    M10 x 1.5 mm

    Stud Length

    60 mm

    Handle Length

    80 mm

    Projection

    58 mm

    Hub Projection

    38 mm

    Handle Style

    Adjustable

    Stud Material

    303 Stainless Steel

    System of Measurement

    Metric

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848790.0080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Also known as clamping handles, use these standard adjustable handles for applications involving frequent positioning, tightening, and holding adjustments. Lift the handle to rotate freely; then release the handle to engage and tighten.

    Threaded-Stud Mount—Threaded-stud handles mount into a threaded hole.

    303 Stainless Steel—303 stainless steel handles have excellent corrosion resistance, making them the best choice for harsh environments. They also have good chemical resistance.

    303 Stainless Steel Stud—303 stainless steel studs are more corrosion resistant than steel studs.
