    Tool Balancer

    without Cable Lock, 4.5 to 8 lb. Capacity

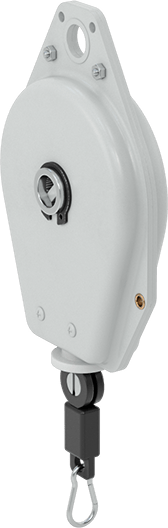

    Image of Product. Top orientation. Tool Balancer, without Cable Lock, 4.5 to 8 lb. Capacity.

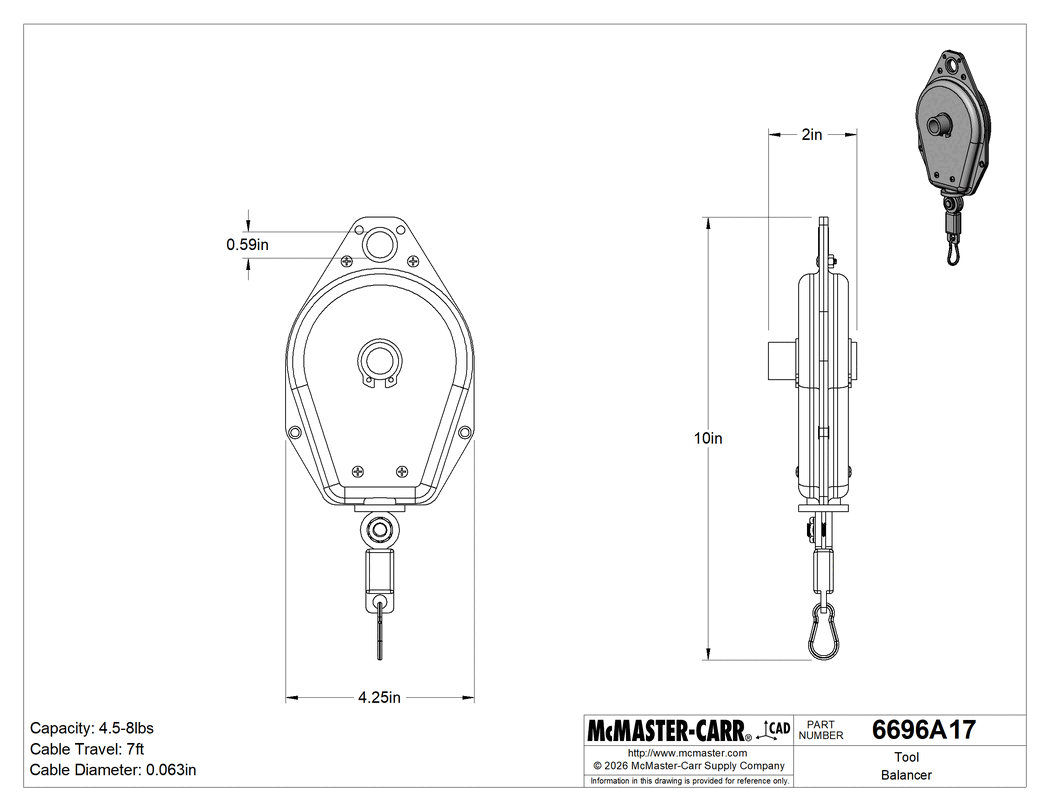

    Technical Drawing of Tool Balancer, without Cable Lock, 4.5 to 8 lb. Capacity.
    Image of Product. Bottom orientation. Tool Balancer, without Cable Lock, 4.5 to 8 lb. Capacity.
    Image of Product. Side1 orientation. Contains SizingReference. Tool Balancer, without Cable Lock, 4.5 to 8 lb. Capacity.
    2-D PDF
    0000000 each
    6696A17
    In stock
    6696A17
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Cable

    Travel

    7 ft.

    Diameter

    1/16"

    Material

    Plastic-Coated Steel

    Tension Adjustability

    Adjustable

    With Lock

    No

    Tool Attachment Type

    Spring-Latch Clip

    Weight Capacity

    Minimum

    4.5 lb.

    Maximum

    8 lb.

    Hanger

    Type

    Fixed Ring

    Opening Size

    5/8"

    Height When Retracted

    10"

    Housing Material

    Steel

    Features

    Adjustable Cable Stop

    Housing Depth

    2"

    Housing Width

    4 1/4"

    Mount Type

    Hanging

    Reel Type

    Enclosed

    Retraction Method

    Automatic

    Weight

    2 lb.

    Country of Origin

    Italy

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    847989.9900

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Suspend your tool for a weightless feel and movement with minimal effort. Tool balancers are good for minimizing fatigue in applications that require continuous tool use. Choose a load capacity that is sufficient for the total load you'll place on the tool balancer. This includes the tool plus any fittings, hose, or power cords.

    The information in this 3-D model is provided for reference only.
