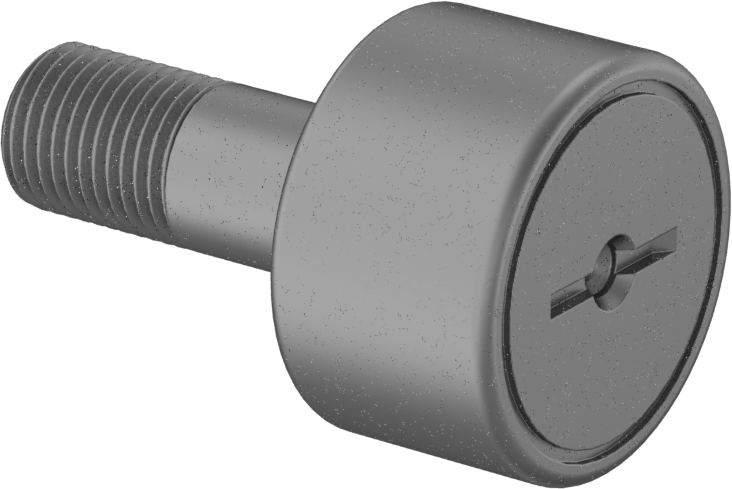

Extreme-Temperature Threaded Track Roller
1-1/4" Roller Diameter, 3/4" Roller Width
Roller Material | Steel |
Roller Profile | Flat |
With Seal | Yes |
Drive Style | Slotted |
Drive Location | Roller Head |
Roller | |
Diameter | 1 1/4" |
Width | 3/4" |
Stud | |
Diameter | 1/2" |
Length | 1 1/4" |
Thread | |
Size | 1/2"-20 |
Length | 5/8" |
Maximum Rotation Speed | 100 rpm |
Load Capacity | |
Static Radial | Not Rated |
Dynamic Radial | 90 lb. |
Temperature | |
Minimum | -450° F |
Maximum | 750° F |
Bearing Type | Plain |
For Load Direction | Radial |
Guide Roller Type | Track |
Lubricant | Graphite |
Lubricant Type | Solid |
Lubrication | Lubricated |
Lubrication Method | Embedded |
Roller Mount Type | Threaded Stud |
Stud Material | Steel |
Track Roller Type | Round |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Lubricated with graphite, these rollers can handle temperatures from -450° to 750° F—the widest temperature range of any track roller in our offering. Also known as cam followers, track rollers support loads while guiding and positioning work. Thread the stud directly into a component or secure with a nut for through-hole mounting. All rollers have end seals to protect rolling elements from dirt and contamination.

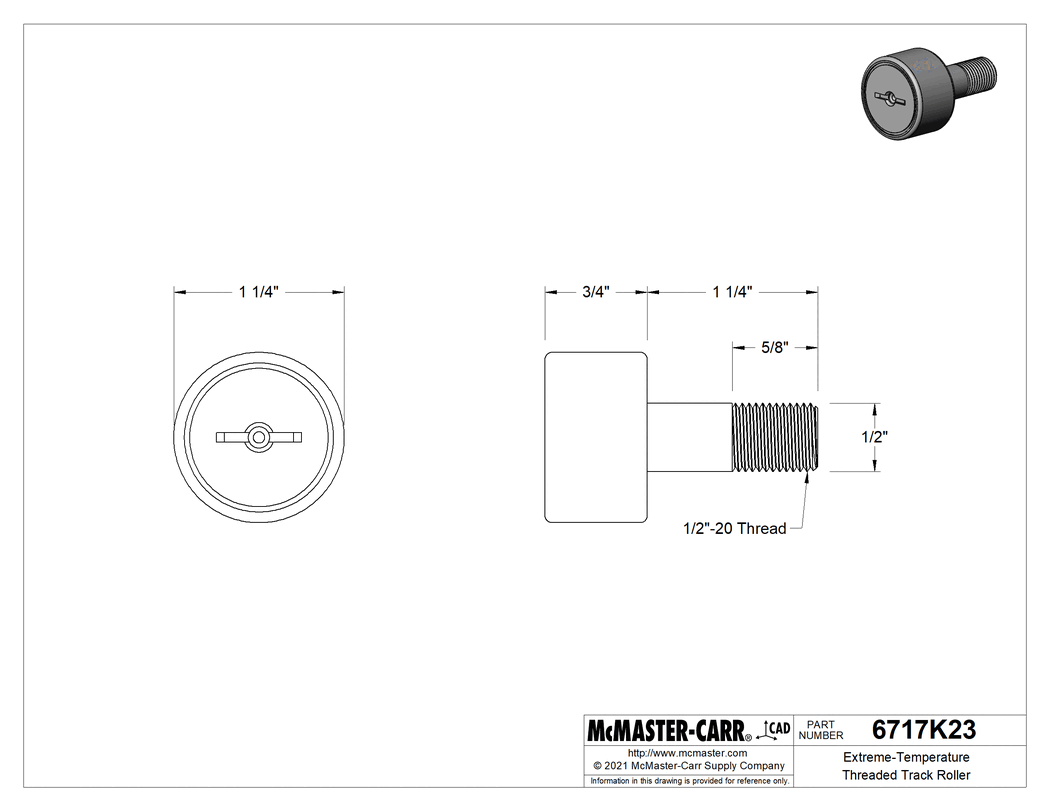

The information in this 3-D model is provided for reference only.
