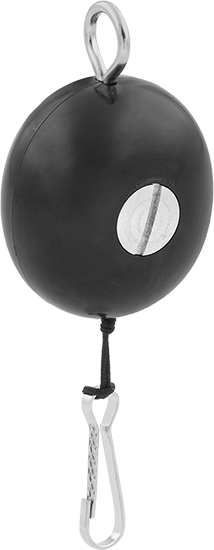

Manual-Return Hanging Tool Retractor
1 to 10 lb. Capacity
Cable | |
Travel | 4 1/2 ft. |
Diameter | 1/16" |
Material | Nylon |
With Lock | Yes |
Tension Adjustability | Adjustable |
Reel Type | Enclosed |
Tool Attachment Type | Spring-Latch Clip |
Weight Capacity | |
Minimum | 1 lb. |
Maximum | 10 lb. |
Hanger | |
Type | S-Hook |
Opening Size | 1/2" |
Height When Retracted | 8 1/2" |
Housing | |
Width | 2 1/2" |
Depth | 1 1/2" |
Material | Plastic |
Features | Adjustable Cable Stop |
Mount Type | Hanging |
Retraction Method | Manual |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 842519.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Hang a tool or object overhead, pulling it down when you need it. To move it out of the way, lift the tool back up until the cable retracts into the housing. You can lock the cable at set positions to avoid accidental adjustments using the adjustable cable stop. Tug on the cable to release the lock. Choose a load capacity that is sufficient for the total load you'll place on the retractor. This includes the tool plus any fittings, hose, or power cords.

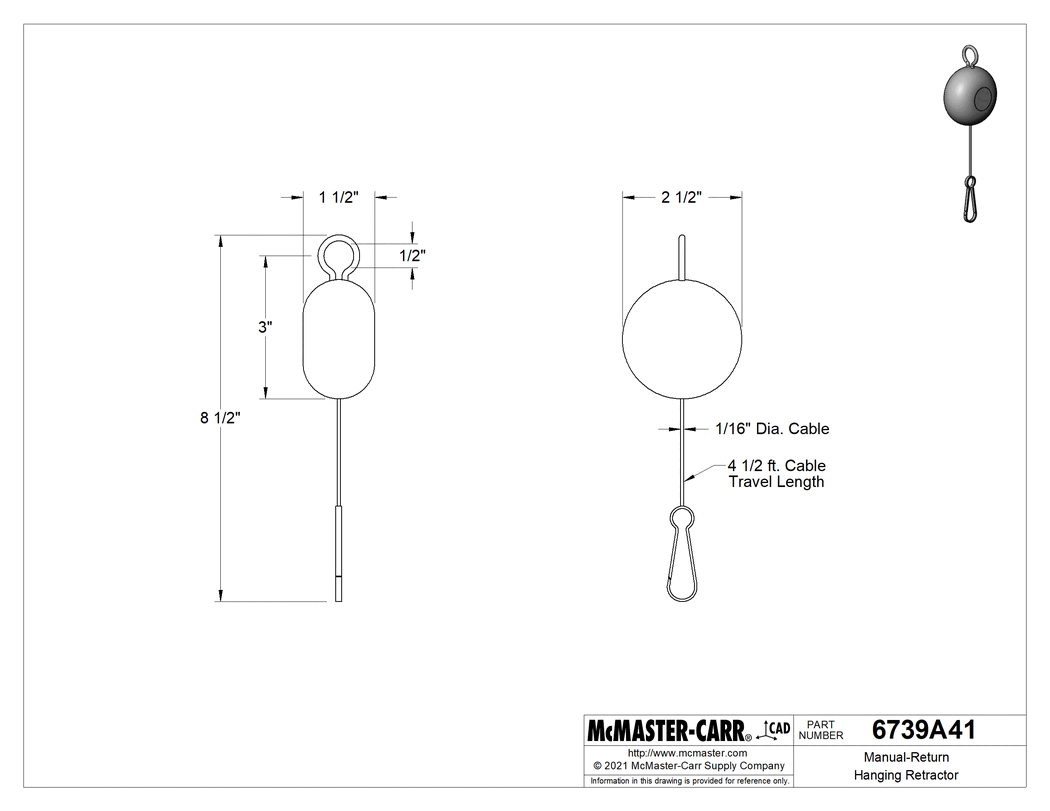

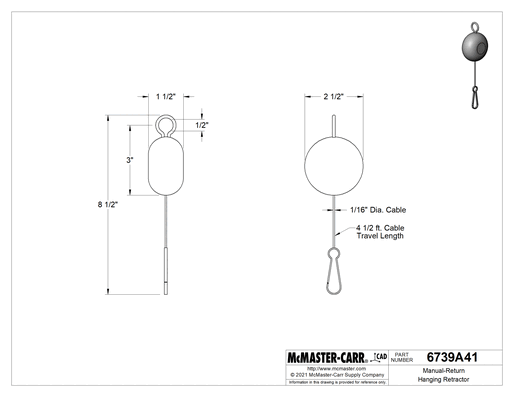

The information in this 3-D model is provided for reference only.
