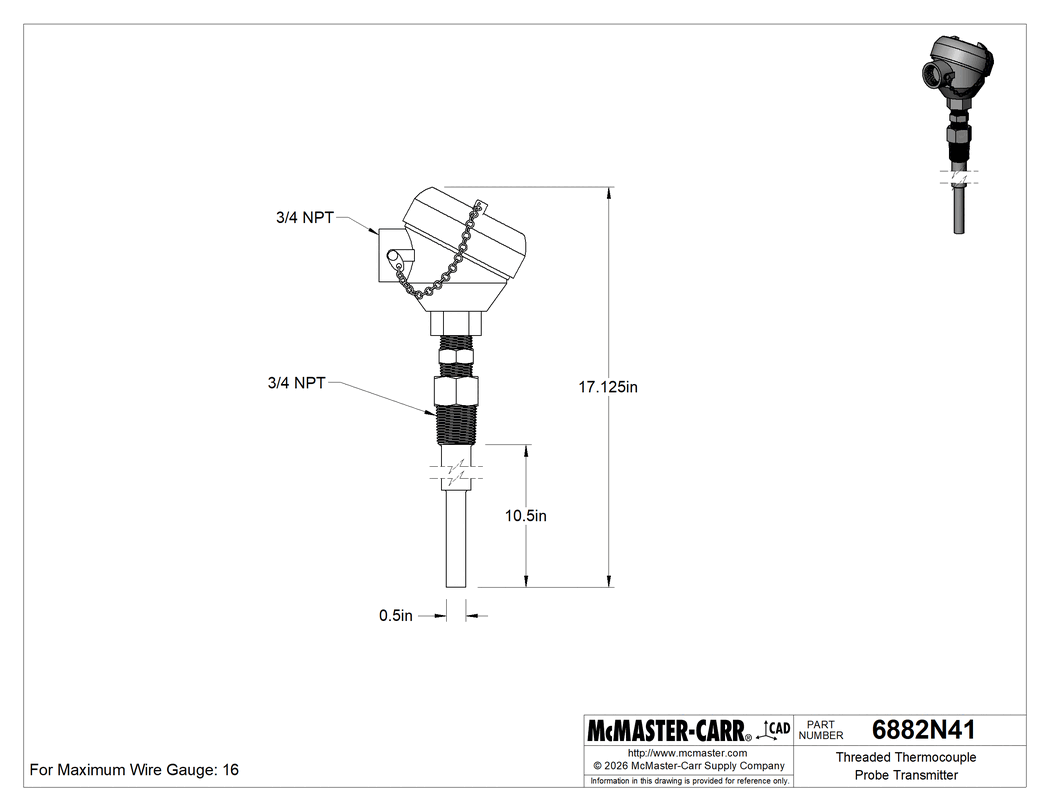

Threaded Thermocouple Probe Transmitter
with Thermowell for Liquid and Gas, Type J, 10-1/2" Long Probe
Thermocouple Type | J |
Thermowell Material | 316 Stainless Steel |
Probe | |
Length | 10 1/2" |
Diameter | 1/2" |
Movement | Spring Loaded |
Response Time | 5 sec. |
Temperature Range | 0° F to 500° F |
Accuracy @ Temperature | Not Rated Below 32° F |
Overall Length | 17 1/8" |
Sensor Type | Ungrounded |

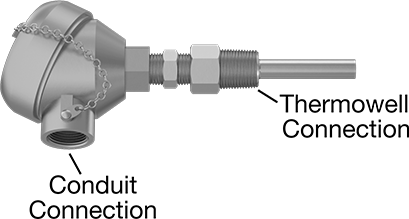

Thermowell Connection | |
Pipe Size | 3/4 |
Thread Type | NPT |
Gender | Male |
Conduit Connection | |
Pipe Size | 3/4 |
Thread Type | NPT |
Gender | Female |
Output Current Range | 4 mA to 20 mA |
Voltage Range | 8V DC to 35V DC |
Component | Probe |
Enclosure Rating | IP68, NEMA 4X |
Environment | Corrosive, Dusty, Outdoor, Submersible, Washdown, Wet |
For Maximum Wire Gauge | 16 |
For Use With | Liquids, Gas |
Insulation | Insulated |
Material | |
Insulation | Magnesium Oxide |
Fitting | 316 Stainless Steel |
Head | Aluminum |
Probe | 316 Stainless Steel |
Maximum Pressure @ Temperature | Not Rated |
Mount Type | Threaded |
Output Signal Type | Analog |
Thermocouple Sensor Connection | Screw Terminal |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902590.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
As the probe on these transmitters measures temperature, the included thermowell shields it from vibration, impacts, and shock. Made of either stainless steel or nickel, the thermowell resists corrosion when immersed in liquids or gases. It acts as a barrier, so you can replace the probe sensor without stopping flow or draining your system. For accurate readings, a spring pushes the probe tip forward, keeping the tip in constant contact with the thermowell. A layer of magnesium oxide protects the wiring inside the probe.
These transmitters convert readings to analog signals and send them to remote displays, programmable logic controllers (PLCs), and other devices. Rated NEMA 4X and IP68, the head stands up to wet, dusty, and corrosive environments and even brief submersion. It has a removable cap for easy access to sensor connections.
These transmitters are manufactured to conform to ASTM E230 for accuracy. Accuracy is how far off the reported value is from the actual temperature.
The information in this 3-D model is provided for reference only.
