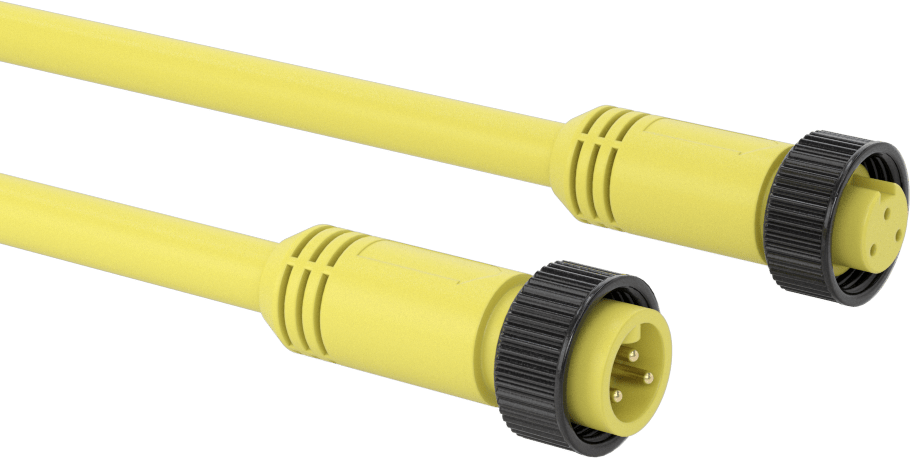

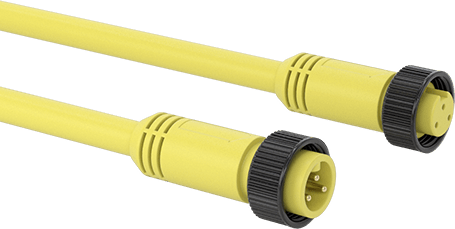

Mini Cord
Plug x Straight Socket, Internal Threads, 3 Poles, 6' Long
Plug | |
Electrical Connection | M22 |
End Shape | Straight |
Gender | Male |
Housing Connection Method | Screw Together |
Housing Thread Location | Internal |
Housing Thread Size | 7/8"-16 |
Housing Thread Type | UNS |
Socket | |
Electrical Connection | M22 |
End Shape | Straight |
Gender | Female |
Housing Connection Method | Screw Together |
Housing Thread Location | Internal |
Housing Thread Size | 7/8"-16 |
Housing Thread Type | UNS |
Number of Poles | 3 |
Face Diameter | 0.55" |
Length | 6 ft. |
Current | 13 amp |
Voltage | 600V AC/600V DC |
American Wire Gauge (AWG) | 16 |
Cord | |
OD | 0.41" |
Insulation Material | PVC |
Color | Yellow |
Temperature | |
Minimum | 0° F |
Maximum | 220° F |
Enclosure Rating | IP67 |
Shielding | Unshielded |
Certification | UL Recognized Component, CSA Certified |
Environment | Dusty, Submersible |
Flexibility | Flexible |
Signal Type | Control, Power |
Wire Lead Color | Black, Green/Yellow, White |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 854442.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With a higher maximum current than nano M8 and micro M12 cords, these mini cords are often used with automated systems, motors, and pumps. A threaded housing securely mates with other mini connections and won’t shake loose from vibration. They have a standard pole layout and housing thread size to reduce the chance you’ll mis-mate connectors. These cords are unshielded, so they’re best for use where signal interference is not a concern.
When mated, these cords meet IP or NEMA ratings.
IP67 Enclosure Rating—IP67 rated cords protect against dust and temporary submersion.

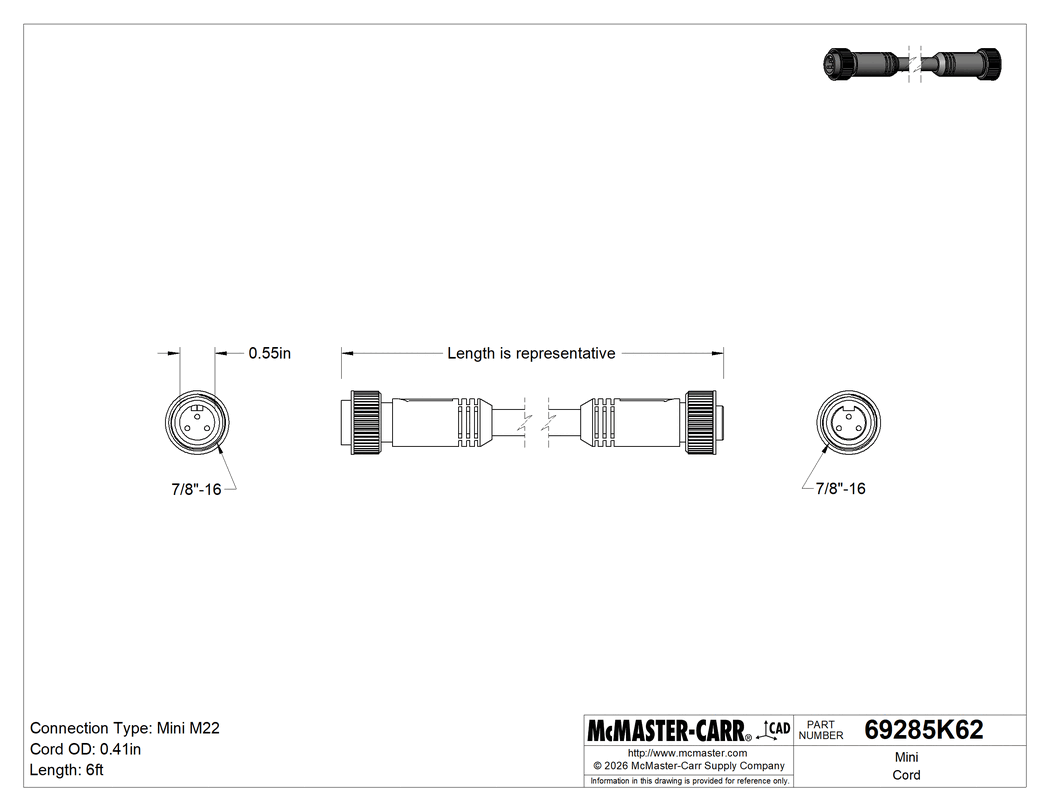

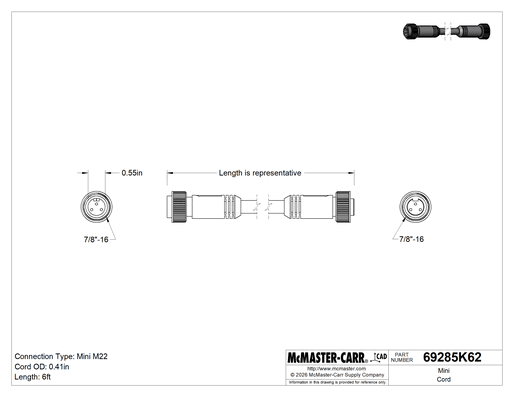

The information in this 3-D model is provided for reference only.
