    Mini Connector

    Panel-Mount Male Receptacle, 5 Poles, 6' Long Wire Leads

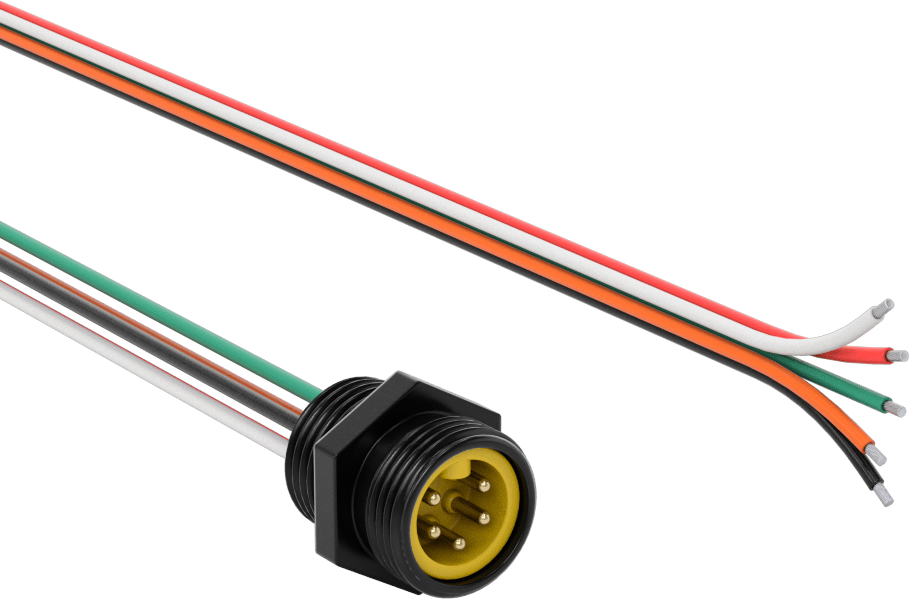

    Image of Product. Front orientation. Mini Connector, Panel-Mount Male Receptacle, 5 Poles, 6' Long Wire Leads.

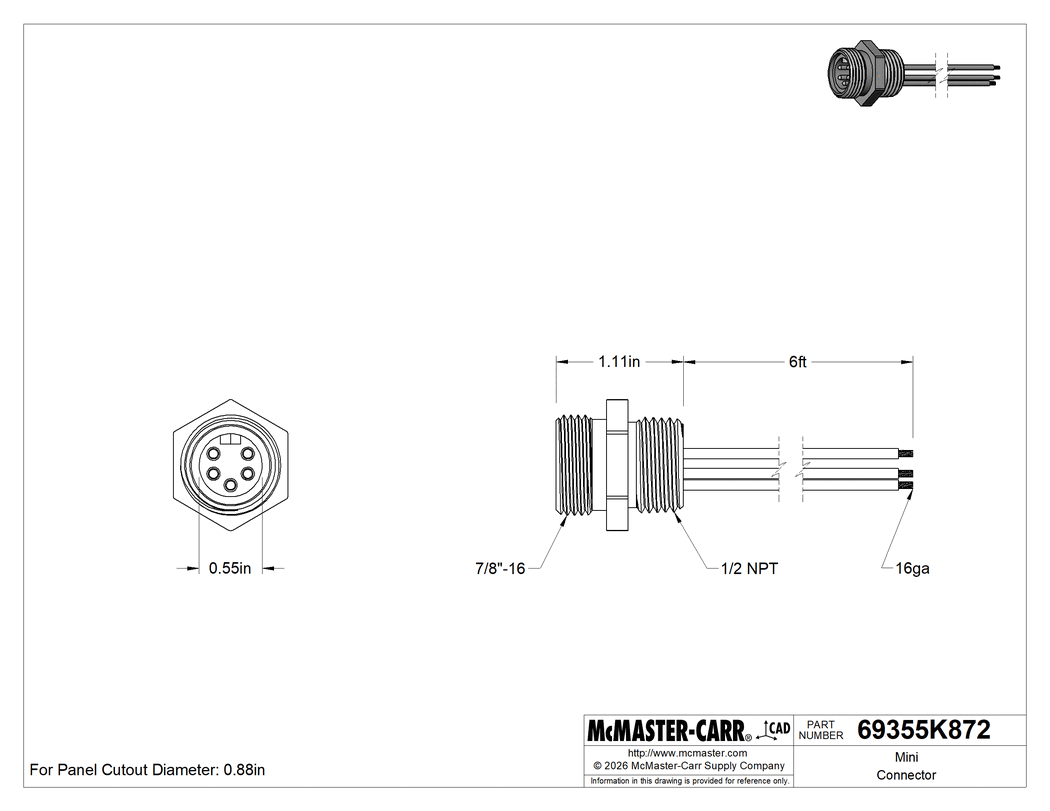

    Technical Drawing of Mini Connector, Panel-Mount Male Receptacle, 5 Poles, 6' Long Wire Leads.
    Image of Specification. Front orientation. Contains Annotated. Mini Connector, Panel-Mount Male Receptacle, 5 Poles, 6' Long Wire Leads.
    2-D PDF
    000000 each
    69355K872
    In stock
    69355K872
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Gender

    Male

    Mounting Location

    Panel

    Electrical Connector Component

    Receptacle

    Wire Connection

    Wire Leads

    Housing Thread

    Size

    7/8"-16

    Type

    UNS

    Location

    External

    Wire Lead Length

    6 ft.

    Number of Poles

    5

    Face Diameter

    0.55"

    Voltage

    600V AC/600V DC

    Current

    8 amp

    Wire Lead Gauge (AWG)

    16

    Color

    Black

    Housing Material

    Epoxy-Coated Zinc Alloy

    Mounting

    Pipe Size

    1/2

    Thread Type

    NPT

    For Panel Cutout Diameter

    0.88"

    Temperature

    Minimum

    0° F

    Maximum

    220° F

    Enclosure Rating

    IP67

    Certification

    UL Recognized Component, CSA Certified

    Electrical Connection

    M22

    Environment

    Dusty, Submersible

    Housing Connection Method

    Screw Together

    Shape

    Straight

    Signal Type

    Power/Control

    Wire Insulation Material

    PVC

    Wire Lead Color

    Black, Green/Yellow, Orange, Red, White

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    854442.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Often used to send power and signal to automated systems, motors, and pumps, these mini connectors carry higher currents than M5, M8, and M12 connectors. A threaded housing securely mates with other mini connectors and won’t come loose from shaking or vibration. They have a standard pole layout and housing thread size to reduce the chance you’ll mis-mate connectors.

    When mated, these connectors meet IP or NEMA ratings.

    Receptacles—Receptacles thread into panels and walls, so they work well in stationary or permanent installations.

    Epoxy-Coated Zinc Alloy Housing—Receptacles with epoxy-coated zinc alloy housing resist corrosion and weld-slag for use in harsh environments.

    IP67 Enclosure Rating—IP67 rated connectors protect against dust and temporary submersion.

    The information in this 3-D model is provided for reference only.
