    Grounding Strap

    for 1/2" to 1" Pipe OD, Galvanized Steel

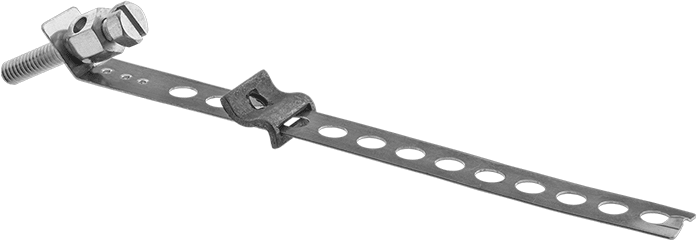

    Image of Product. Front orientation. Grounding Strap, for 1/2" to 1" Pipe OD, Galvanized Steel.

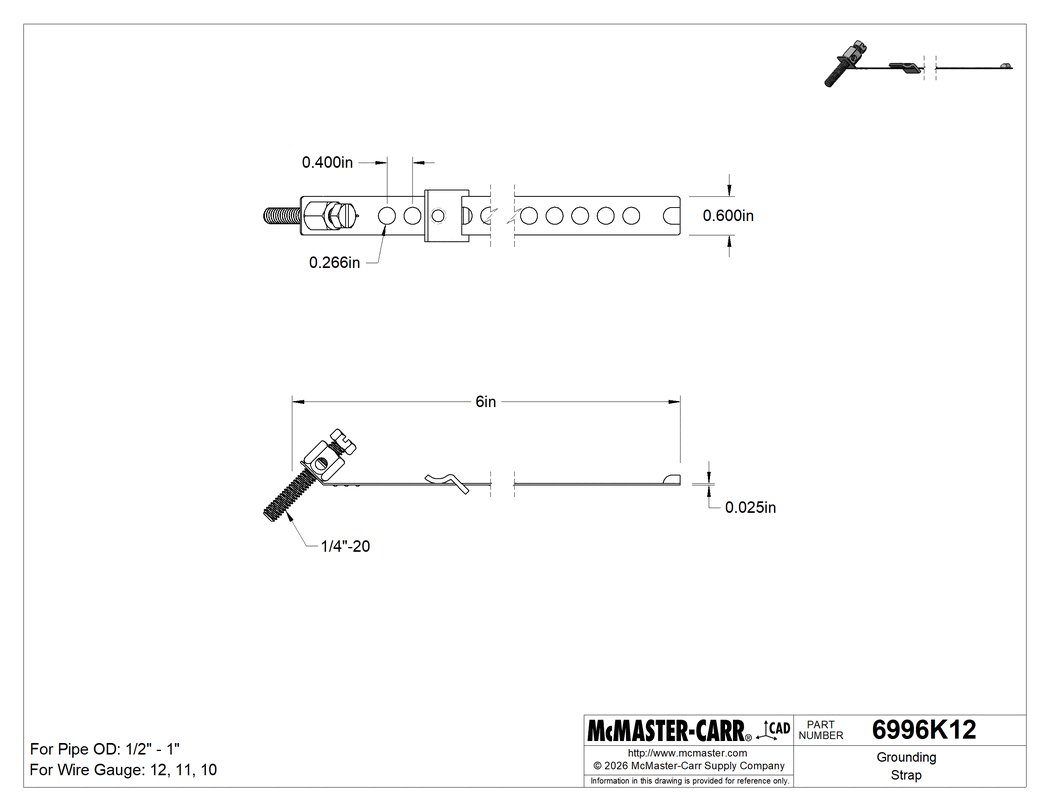

    Technical Drawing of Grounding Strap, for 1/2" to 1" Pipe OD, Galvanized Steel.

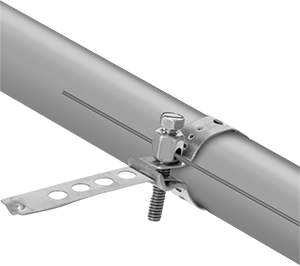

    Image of ProductInUse. Front orientation. Grounding Strap, for 1/2" to 1" Pipe OD, Galvanized Steel.
    2-D PDF
    00000 each
    6996K12
    In stock
    6996K12
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Number of Wires

    1

    For Pipe OD

    1/2" to 1"

    Length

    6"

    For Wire Gauge

    12, 11, 10

    Material

    Galvanized Steel

    Electrical Connection

    Screw Terminal

    Certification

    UL Listed

    Performance

    Grounding

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820570.0090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Straps fit around pipes and grounding rods. For best performance, match the strap material to your pipe material.

    The information in this 3-D model is provided for reference only.
