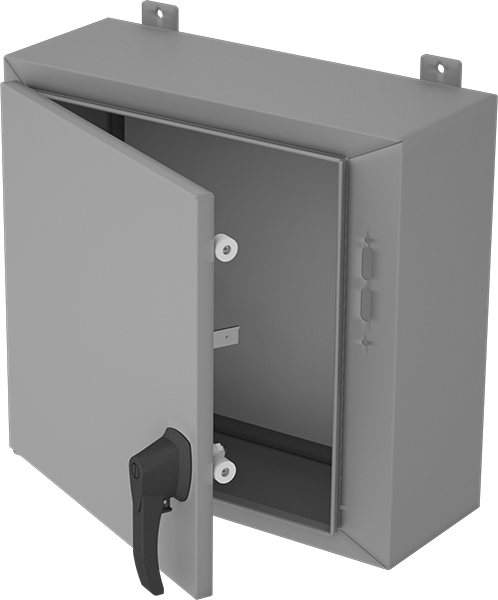

Safety-Lock Enclosure
Steel, 1 Door, 20" Height x 21" Width x 8" Depth
Cover Attachment Style | Hinged |
Material | Powder-Coated Steel |
Width | 21" |
Height | 20" |
Depth | 8" |
For Manufacturer Series | ABB Flange-Mounted Operators, Allen Bradley 1494U, C-H Westinghouse C361, C-H Westinghouse C371, General Electric STDA, Siemens Max-Flex, Square D Class 9422 |
With Knockouts | No |
Cover Closure Method | Handle Latch |
External Mount Type | Bracket |
Color | Gray |
Includes | Panel |
Certification | UL Listed, CSA Certified, CE Marked |
Component Mount Type | Removable Panel |
Cover Clarity | Opaque |
Cover Finish | Powder Coated |
Cover Material | Steel |
Enclosure Rating | NEMA 4, NEMA 13, IP66 |
Environment | Dusty, Oily, Outdoor, Washdown, Wet |
For Switch Type | Disconnect |
Hinge Location | Side |
Hinge Material | Steel |
Inside | |
Width | 21 1/4" |
Height | 19 7/8" |
Depth | 8" |
Mounting Fasteners Included | No |
Mounting Hole Diameter | 0.44" |
Number of Doors | 1 |
Number of Mounting Holes | 4 |
Panel Material | Steel |
Performance | Watertight, Safety Lock, Dust Tight, Oil Resistant, Quick Access |
UL File Number | E65324 |
Country of Origin | Canada |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Keep enclosures locked until the power is cut to prevent shock from live components. Connect the multipoint latch to a disconnect switch to hold the doors closed while power is on, enhancing your team’s safety. All of these enclosures have a gasket that locks out dust, water, oil leaks, and coolant sprays. Use them to protect switches, fuses, and wiring on your busy shop floors.
Hinged Cover—The cover swings open for fast, frequent access and remains attached to prevent drops or loss.
Powder-Coated Steel—Inherently strong, these enclosures resist denting and cracking better than our other metal options. The coating forms a barrier against water and mild detergents, but if scratched, the underlying steel may rust.
For Manufacturer Series—Make sure you purchase a disconnect switch that matches one of the manufacturer series listed.
Mount
Run wire and cable

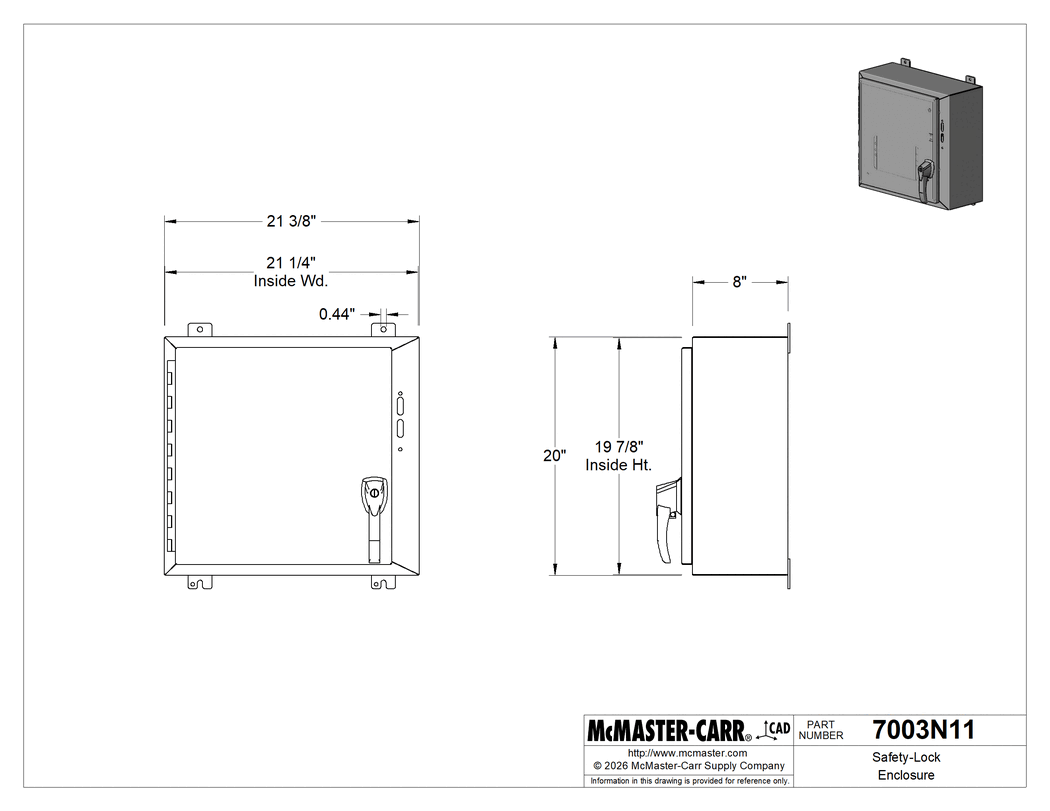

The information in this 3-D model is provided for reference only.
