    Precise-Control Screwdriver

    Black-Oxide Steel, Number 1 Phillips

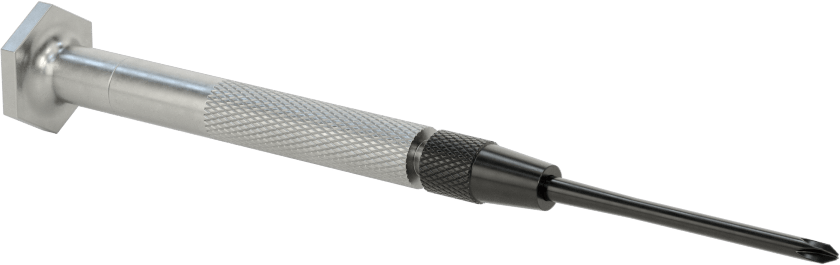

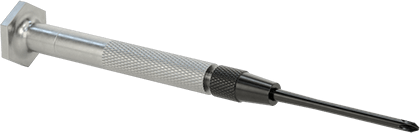

    Image of Product. Front orientation. Precise-Control Screwdriver, Black-Oxide Steel, Number 1 Phillips.

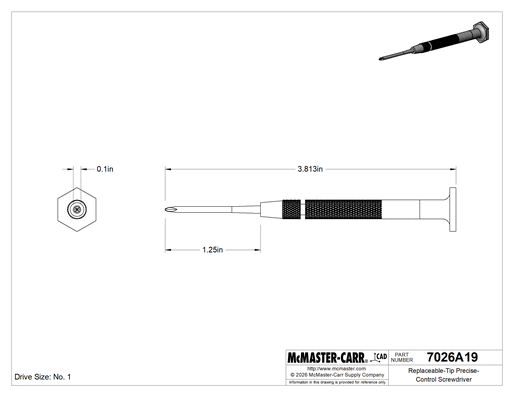

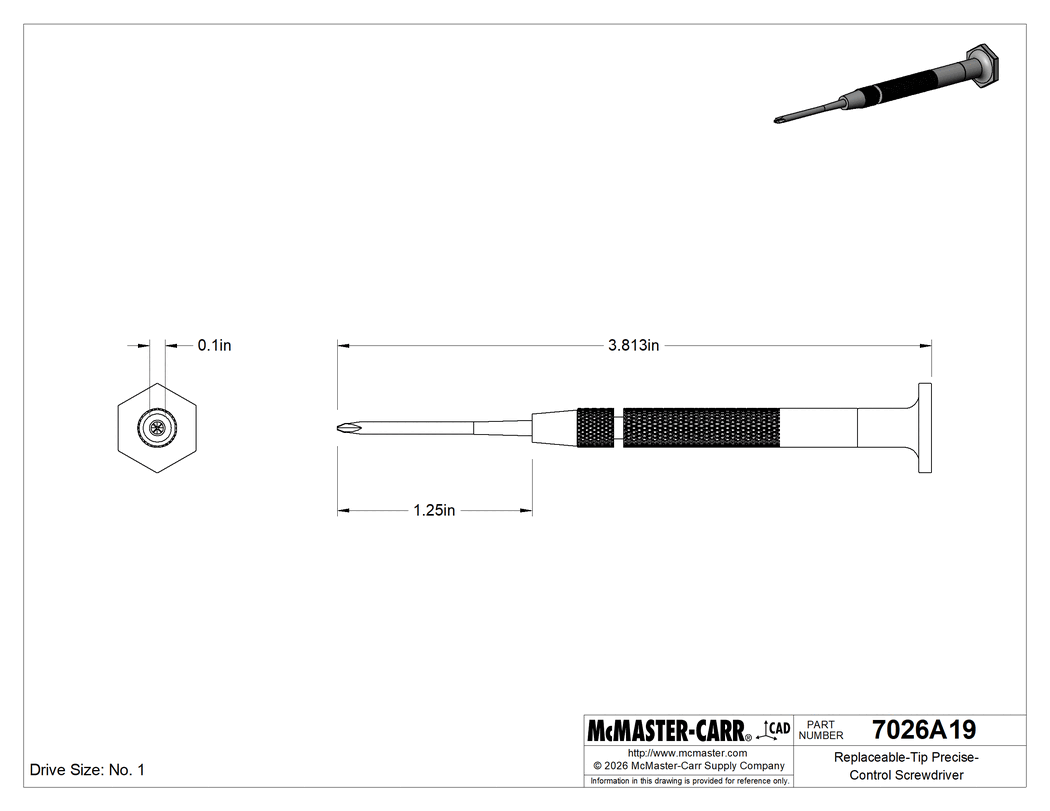

    Technical Drawing of Precise-Control Screwdriver, Black-Oxide Steel, Number 1 Phillips.

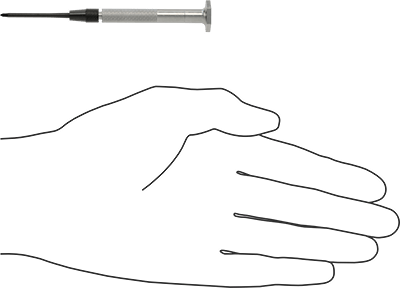

    Image of Product. Side1 orientation. Contains SizingReference. Precise-Control Screwdriver, Black-Oxide Steel, Number 1 Phillips.
    2-D PDF
    000000 each
    7026A19
    In stock
    7026A19
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Drive Style

    Phillips

    Material

    Black-Oxide Steel

    Drive Size

    No. 1

    Overall Length

    4"

    Shaft

    Length

    1 1/4"

    Overall Width

    1/8"

    Grip Texture

    Knurled

    Grip Style

    Plain

    Driver Style

    Driver

    Driver Type

    Standard

    Handle Material

    Steel

    Performance

    Precise Control

    Power Source

    Manual

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820540.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    Make fine-tuned adjustments on small, delicate components, such as electronics, miniature models, and microscopes. These screwdrivers give you better control than a standard screwdriver to avoid stripping tiny screws or cracking fragile materials. Press the end of the handle with your palm to apply constant pressure while turning the body of the screwdriver with your fingertips. They are also known as precision and miniature screwdrivers.

    Knurled GripGet the best possible grip, even with wet or oily fingers.

    The information in this 3-D model is provided for reference only.
