    Light Dimmer

    Push Button with Slide Dimmer, 1 Circuit, 3 Terminals

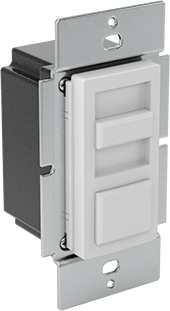

    Image of Product. Front orientation. Light Dimmer, Push Button with Slide Dimmer, 1 Circuit, 3 Terminals.

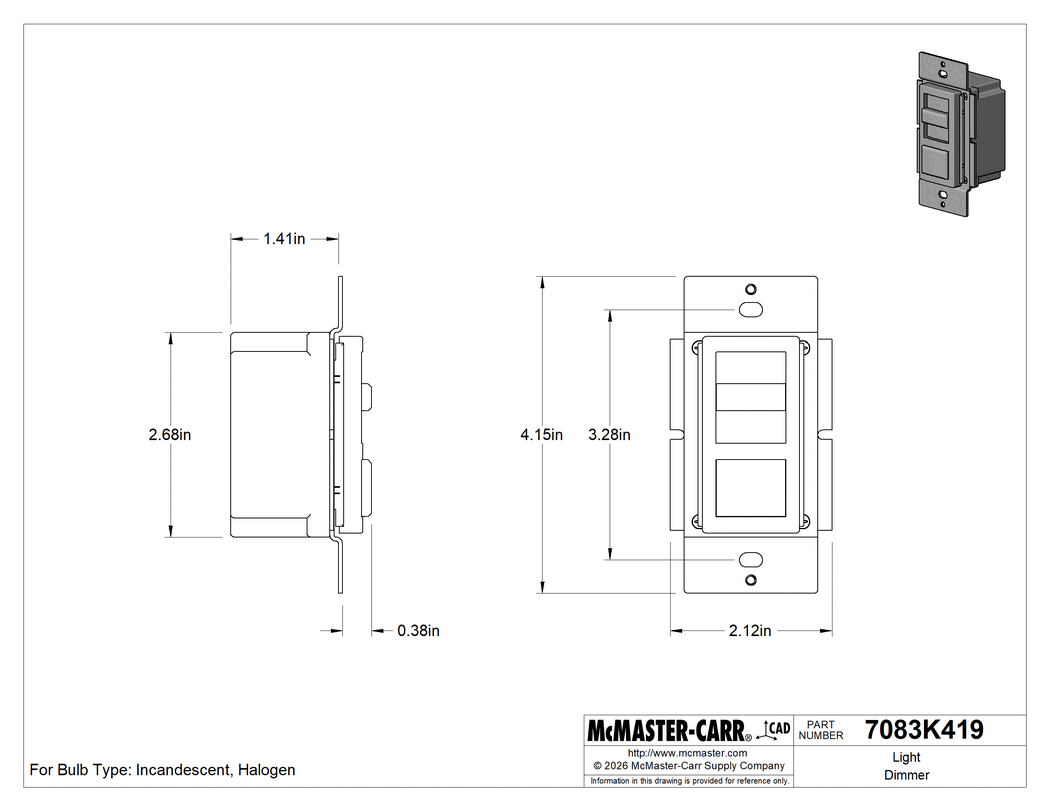

    Technical Drawing of Light Dimmer, Push Button with Slide Dimmer, 1 Circuit, 3 Terminals.
    Image of Product. Back orientation. Light Dimmer, Push Button with Slide Dimmer, 1 Circuit, 3 Terminals.
    Image of Product. Side1 orientation. Contains SizingReference. Light Dimmer, Push Button with Slide Dimmer, 1 Circuit, 3 Terminals.
    2-D PDF
    000000 each
    7083K419
    In stock
    7083K419
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Actuator Style

    Push Button with Slide Dimmer

    For Bulb Type

    Incandescent and Halogen

    Multi-Way Switch Type

    3 Way

    Number of Circuits Controlled

    1

    Number of Terminals

    3

    Input Voltage

    120V AC

    Wattage

    600 W

    Wire Connection

    Wire Leads

    Certification

    CSA Certified, CSA-US Certified

    Includes

    Almond Wall Plate, Ivory Wall Plate

    Color

    White

    CSA File Number

    003413_0_000

    Switch Type

    Light

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    Schedule B Number

    853339.0040

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Adjust the brightness of lights.

    Push Button Actuator with Slide Dimmer—Slide dimmers include both a switch and a dimmer. Use them to turn lights on and off while maintaining your desired brightness level.

    3-Way Switch—Three-way dimmers let you control the same circuit of lights from two locations, so they’re often used in large, open workspaces. Pair them with a 3-way on/off switch.

    The information in this 3-D model is provided for reference only.
