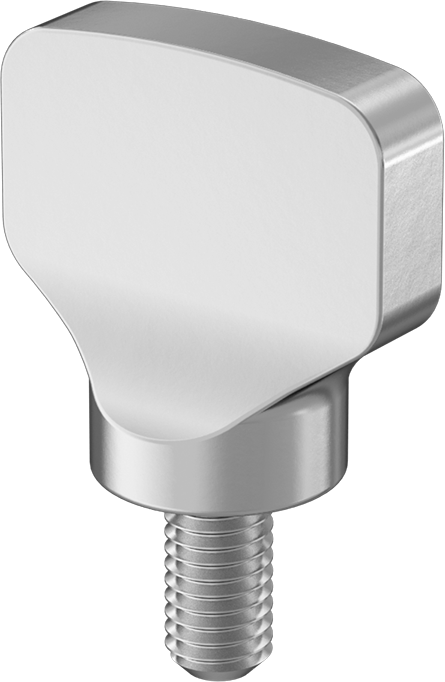

Sanitary Spade-Head Thumb Screw
M5 x 0.80 mm Thread Size, 10 mm Long
Fastener Head Type | Thumb |
Grip Style | Spade Head |
Tip Type | Flat |
Material | 316 Stainless Steel |
Thread | |
Size | M5 |
Pitch | 0.8 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Length | 10 mm |
Head | |
Height | 21 mm |
Width | 21 mm |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Environment | Food and Beverage, Sanitary |
Hardness | Not Rated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Germany |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |
Harsh cleaners and sanitizers won't corrode these stainless steel thumb screws. Fasten in areas that experience frequent washdowns, such as food and pharmaceutical plants. These screws have smooth sides and rounded edges to reduce the risk of bacteria growth. The head is slim and flat like a coin for extra leverage when twisting. Fasten with a sanitary sealing washer (sold separately) to keep contaminants out, lock fluids in, and eliminate space where bacteria can get caught.
Length is measured from under the head.
EPDM Sealing Washers—These washers are highly resistant to tearing, scuffs, and scrapes. They are more economical than Fluoroprene Fluoroelastomer, however, they aren't as heat resistant.
Fluoroprene Fluoroelastomer Sealing Washers—These sanitary sealing washers withstand higher temperatures than EPDM, so you can sterilize them with steam. They also resist more chemicals, such as oil, solvents, and acids.

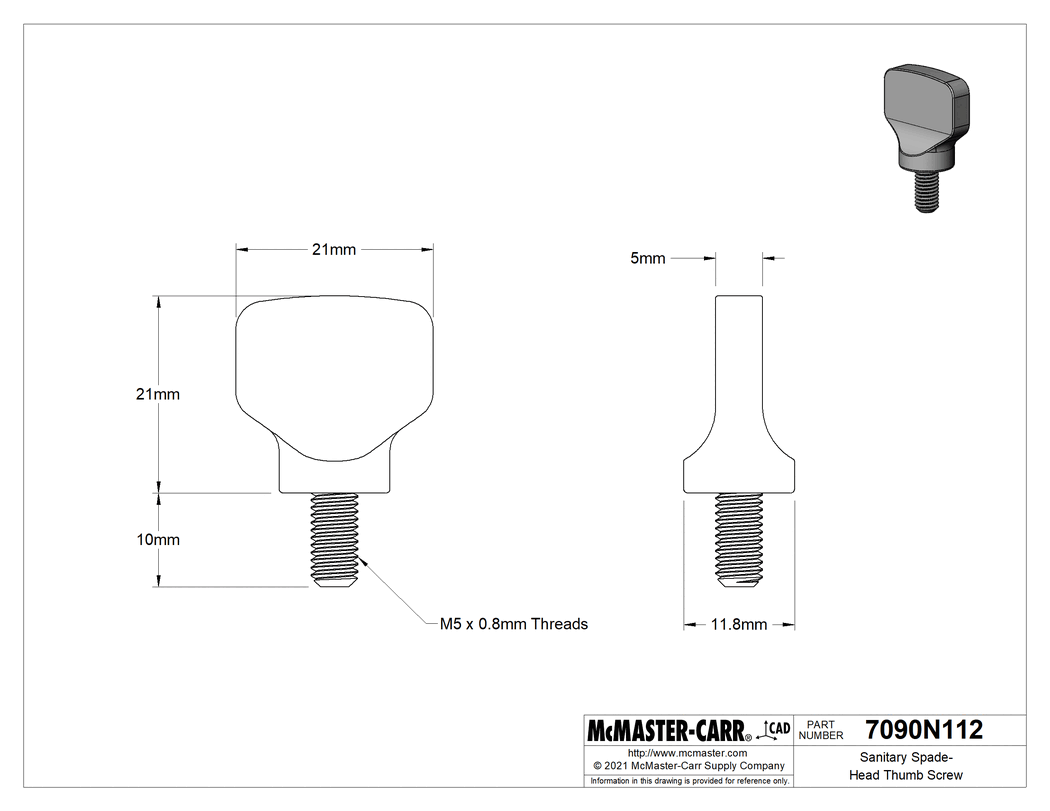

The information in this 3-D model is provided for reference only.
