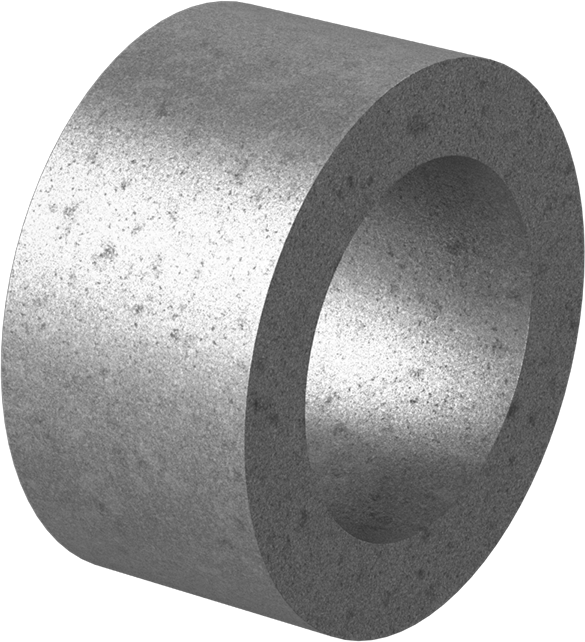

Oil-Embedded Sleeve Bearing for Food and Beverage
841 Bronze, for 8mm Shaft Diameter and 12mm Housing ID, 6mm Long
Lubrication | Lubricated |
Performance | Corrosion Resistant |
Material | 841 Bearing Bronze |
For Shaft Diameter | 8 mm |
For Housing ID | 12 mm |
Length | 6 mm |
Length Tolerance | -0.127 mm to 0.127 mm |
Dynamic Radial Load Capacity @ Speed | 145 lb. @ 120 rpm |
Base Oil | Synthetic Oil |
Temperature Range | -75° F to 300° F |
Food Industry Standard | FDA Compliant 21 CFR 178.3570 |
Bearing Type | Plain |
Environment | Food and Beverage |
For Load Direction | Radial |
For Shaft Type | Round |
ID | 8.01 mm |
ID Tolerance | 0 mm to 0.02 mm |
Lubricant | SAE 20 Oil |
Lubrication Method | Embedded |
OD | 12.03 mm |
OD Tolerance | 0 mm to 0.02 mm |
Plain Bearing Type | Sleeve |
Shaft Mount Type | Slip Fit |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These lead-free bearings are infused with a food-grade oil that is odorless, colorless, tasteless, and safe for unintended contact with food. They’re often used in food and beverage processing, packing, and handling equipment. All are made from porous metal and saturated with oil to reduce maintenance and downtime. If you need a bearing rated for contact with food, consider dry-running sleeve bearings for food and beverage. All are fabricated, lubricated, and inspected in the U.S.
With no moving parts, sleeve bearings are the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.
841 Bearing Bronze—A classic choice for a starter pick. Also known as SAE 841 bearings.
Synthetic Oil Base—A high-quality lubricant makes all the difference. Synthetic oil is less sensitive to temperature changes than mineral oil, so it won't get runny and leak away at higher temperatures.
Reduce friction
Support load

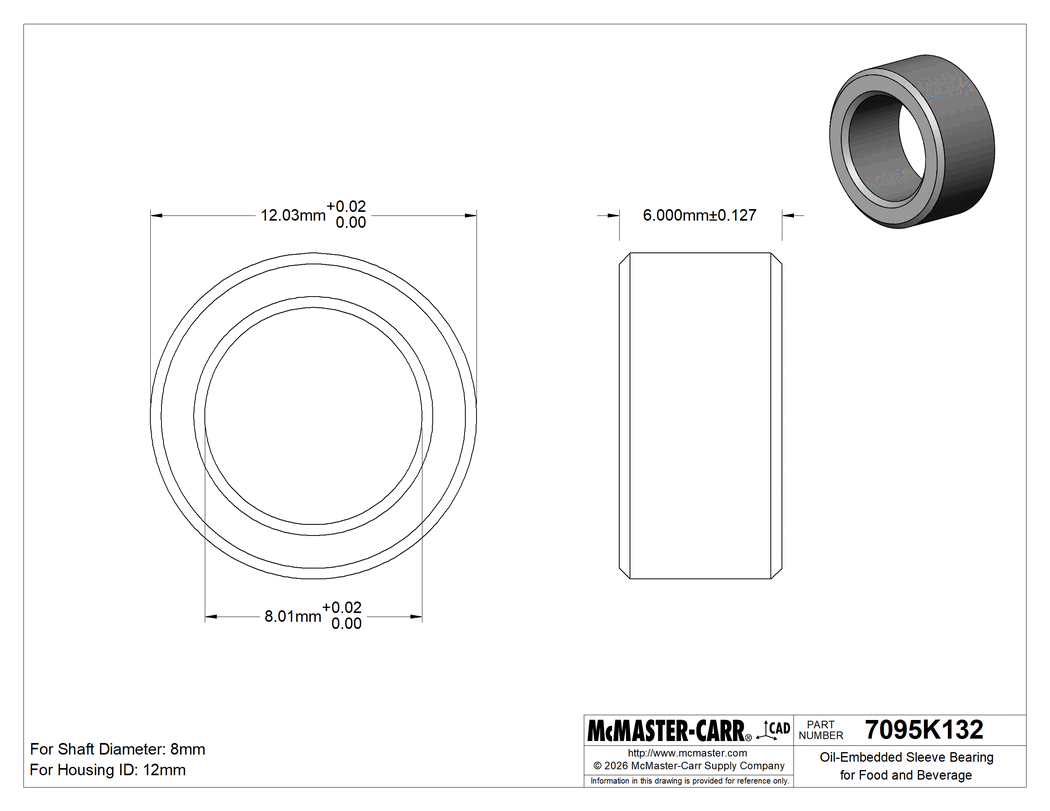

The information in this 3-D model is provided for reference only.
