Mini Connector
Male Plug with External Thread, Screw Terminal, 4 Pole
Gender | Male |
Electrical Connector Component | Plug |
Wire Connection | Screw Terminal |
Housing Thread | |
Size | 7/8"-16 |
Type | UNS |
Location | External |
Number of Poles | 4 |

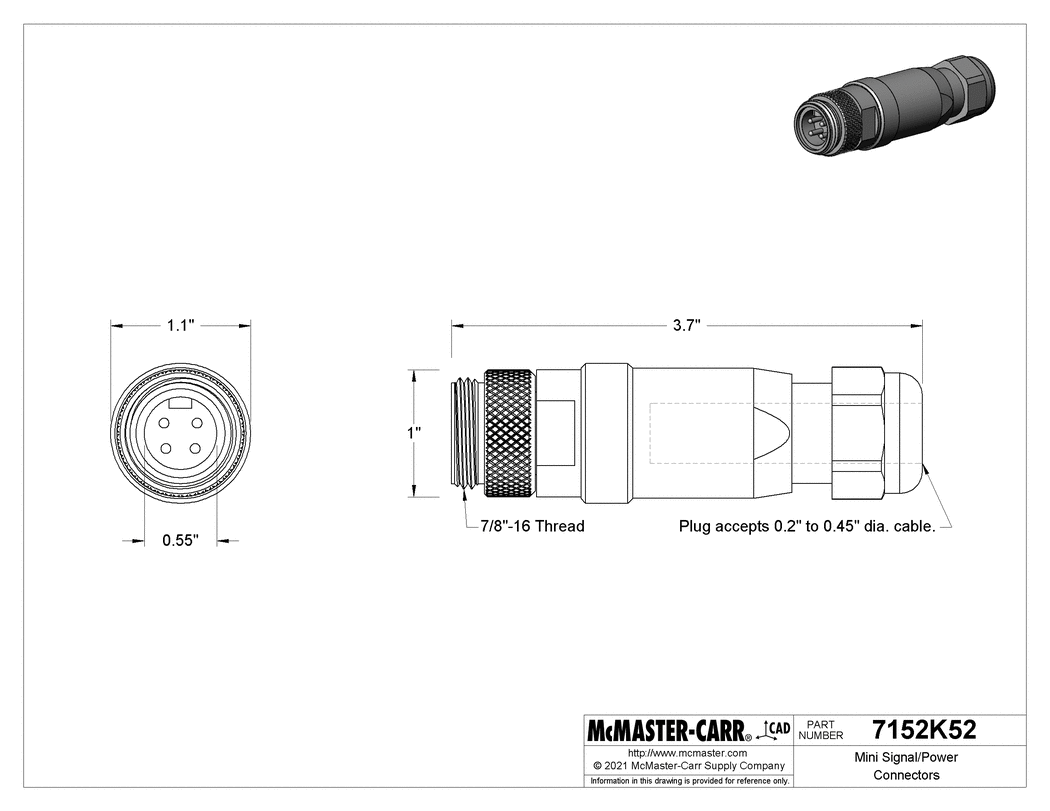

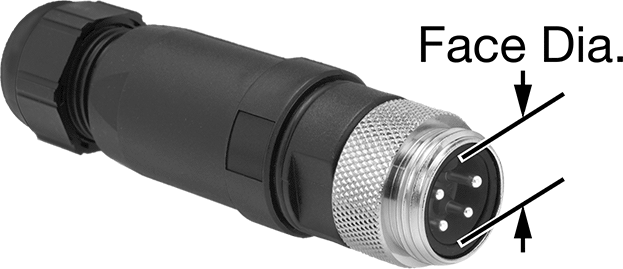

Face Diameter | 0.55" |
Voltage | 600V AC/600V DC |
Current | 10 amp |
For Wire Gauge | 24, 23, 22, 21, 20, 19, 18, 17, 16, 15 |
For Cable OD | 0.2" to 0.45" |
Color | Black |
Housing Material | Nylon |
Maximum Temperature | 175° F |
Enclosure Rating | IP67 |
Certification | CSA Certified, CSA-US Certified |
Electrical Connection | M22 |
Environment | Dusty, Submersible |
Housing Connection Method | Screw Together |
Shape | Straight |
Signal Type | Power/Control |
Country of Origin | Poland |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 853669.4020 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Often used to send power and signal to automated systems, motors, and pumps, these mini connectors carry higher currents than M5, M8, and M12 connectors. A threaded housing securely mates with other mini connectors and won’t come loose from shaking or vibration. They have a standard pole layout and housing thread size to reduce the chance you’ll mis-mate connectors.
When mated, these connectors meet IP or NEMA ratings.
Screw-Terminal Wire Connection—Tighten screws to join connectors with screw terminal wire connections to cable. They do not require tools to wire to cable to make single- and double-ended cords.
IP67 Enclosure Rating—IP67 rated connectors protect against dust and temporary submersion.
The information in this 3-D model is provided for reference only.
