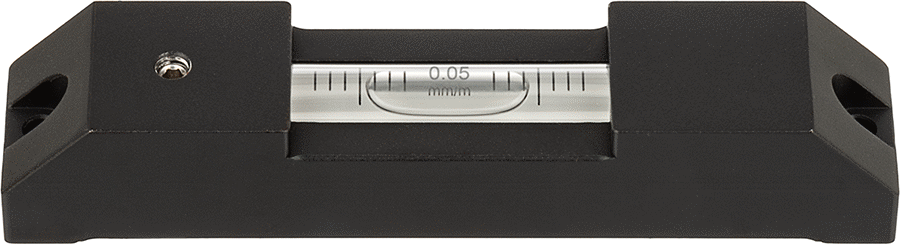

Surface-Mount Precision Level
0.0006 in./Feet, 0 min./0.1" Sensitivity
Mounting Profile | Surface |
Mount Type | Screw On |
Mounting Surface Orientation | Horizontal |
Length | 4 23/32" |
Width | 1" |
Height | 7/8" |
Sensitivity | 0.0006"/1 ft., 0 min/0.1" |
Number of Horizontal Vials | 1 |
Vial Material | Glass |
Housing | |
Material | Steel |
Finish | Black Zinc Plated |
Color | Black |
Mounting Holes | |
Number of | 2 |
Diameter | 0.17" |
Center-to-Center | 4.33" |
Mounting Fasteners Included | No |
Performance | Precision, Mountable |
Professional Trade | Machinist |
Shape | Straight |
System of Measurement | Inch |
Working Orientation | Horizontal |
Country of Origin | United Kingdom |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 903180.8080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Screw these levels onto CNC machines and other equipment to keep them perfectly level over time. With a highly sensitive glass vial and a heavy steel base for stability against surfaces, they detect even the smallest horizontal tilts and misalignments, so you can correct them before they affect machine performance.
Screw-On Levels—Fasten these levels to any drillable surface for the most secure mount that won't shake loose, even on vibrating equipment. Fasteners are not included.
