    Vacuum Cup

    Push-on, 0.190" Cup Diameter, 0.480" Cup Height

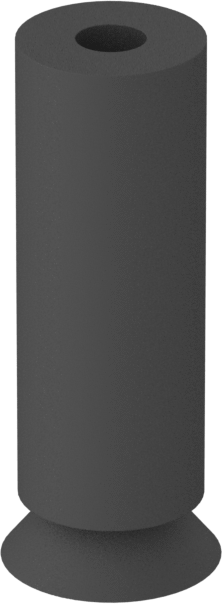

    Image of Product. Front orientation. Vacuum Cup, Push-on, 0.190" Cup Diameter, 0.480" Cup Height.

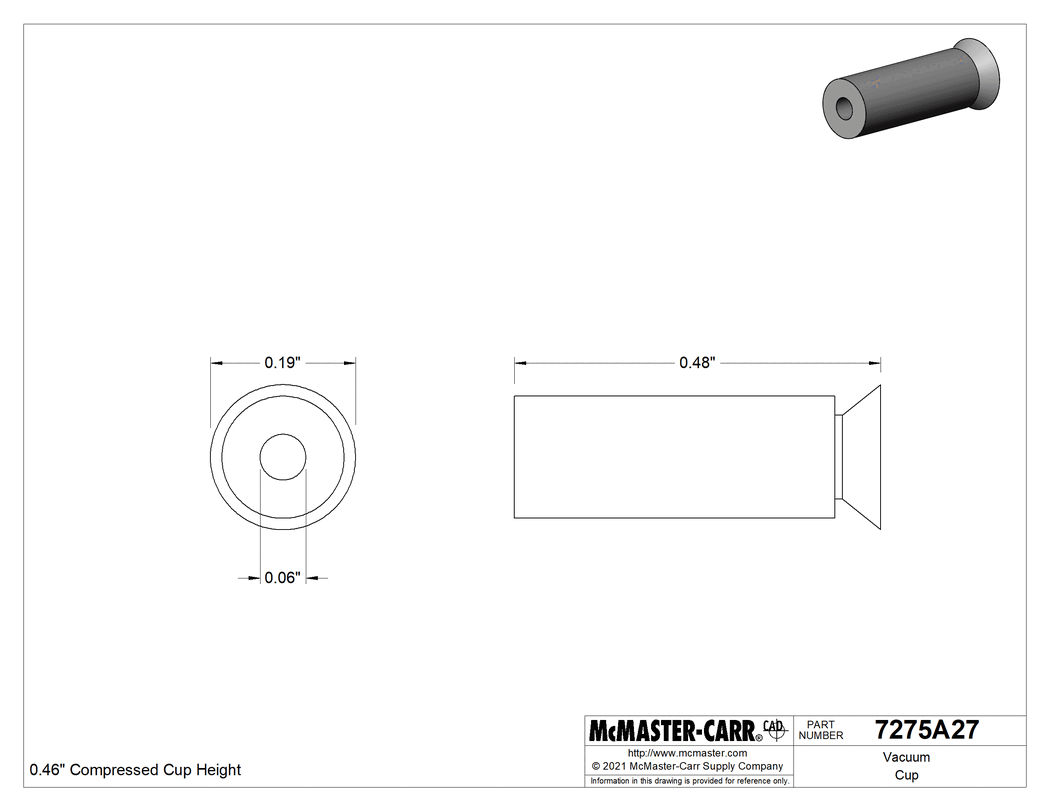

    Technical Drawing of Vacuum Cup, Push-on, 0.190" Cup Diameter, 0.480" Cup Height.
    2-D PDF
    00000 each
    7275A27
    In stock
    7275A27
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mount Type

    Push On

    For Surface Texture

    Smooth

    Cup Material

    Vinyl Plastic

    Weight Capacity @ Vacuum

    0.08 lb. @ 24 in. Hg

    Cup Diameter

    0.19"

    Compressed Cup Height

    0.46"

    Cup Height

    0.48"

    For Use With

    Sheet Metal, Plastic

    Temperature

    Minimum

    32° F

    Maximum

    125° F

    Application

    For Lifting

    Cup Color

    Blue

    Cup Shape

    Round

    For Surface Type

    Flat

    Mounting Hole Diameter

    0.06"

    Nonmarking

    No

    Vacuum Cup Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    392690.9988

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These cups have an unthreaded mounting hole for use with vacuum systems that have an unthreaded fitting, such as a barbed fitting.

    Warning: Never use to lift people or items over people.

    Vinyl Plastic Cups—Vinyl plastic cups have excellent wear resistance.

    The information in this 3-D model is provided for reference only.
