Enclosure Disconnect Switch
with Lockout, Yellow with Red Actuator, 4 Circuits, 32A
Features | Lockout |
Housing Color | Yellow |
Housing Material | Plastic |
Actuator Color | Red |
Number of Circuits Controlled | 4 |
For Panel Cutout Diameter | 1 3/16" |
Switching | |
Current | 32 amp |
Voltage | 600V AC |
Electrical Phase (hp) | Single (1 hp @ 120V AC) |
Height | 2 5/8" |
Width | 2 5/8" |
For DIN Rail Height | 35 mm |
Mounting Depth | 4 7/8" to 15 3/4" |
Enclosure Rating | IP40 |
Certification | UL Listed, C-UL Listed, CE Marked |
For Maximum Padlock Shackle Diameter | 5/16" |
Maximum Voltage | 600V AC |
Mounting Fasteners Included | Yes |
Mounting Hole Diameter | 0.17" |
Number of Mounting Holes | 4 |
Number of Terminals | 8 |
Shaft Diameter | 0.24" |
Shaft Length | 11 13/16" |
Shaft Material | Metal |
Switch Type | Disconnect |
UL File Number | E224737 |
Country of Origin | France |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 853650.9065 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |
Install these switches inside an enclosure to prevent it from opening when power is on—turn the switch to disconnect power and release the door. Cut the shaft to fit the enclosure. Use a padlock (not included) to lock switches in the off position.
Use additional switch power poles to control more than three circuits. Add neutral poles to open and close the neutral leg of a three-phase system.

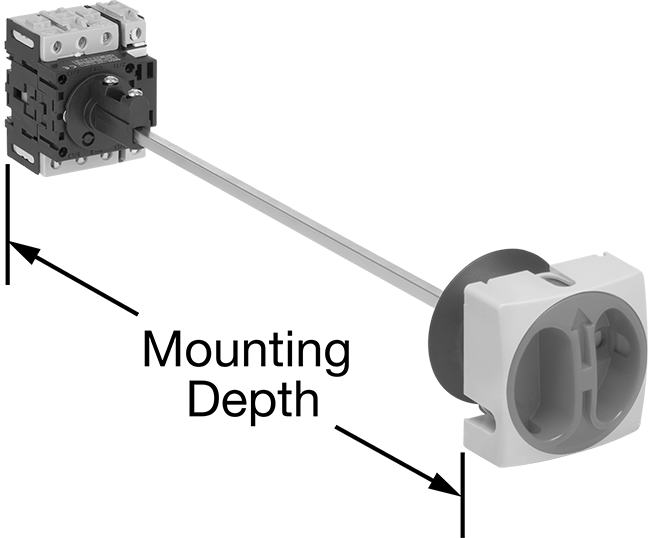

Mounting Depth—Mount to DIN rail inside an enclosure; mounting depth is the distance from the panel door to the DIN rail.
Enclosure Rating—All meet at least one safety standard.
Sealing Gaskets—Use sealing gaskets in washdown environments; they create an IP65 rated seal around the actuator.
