    Muffler

    3/8 BSPP Male, 53 scfm @ 100 PSI Flow Rate

    Image of Product. Front orientation. Muffler, 3/8 BSPP Male, 53 scfm @ 100 PSI Flow Rate.

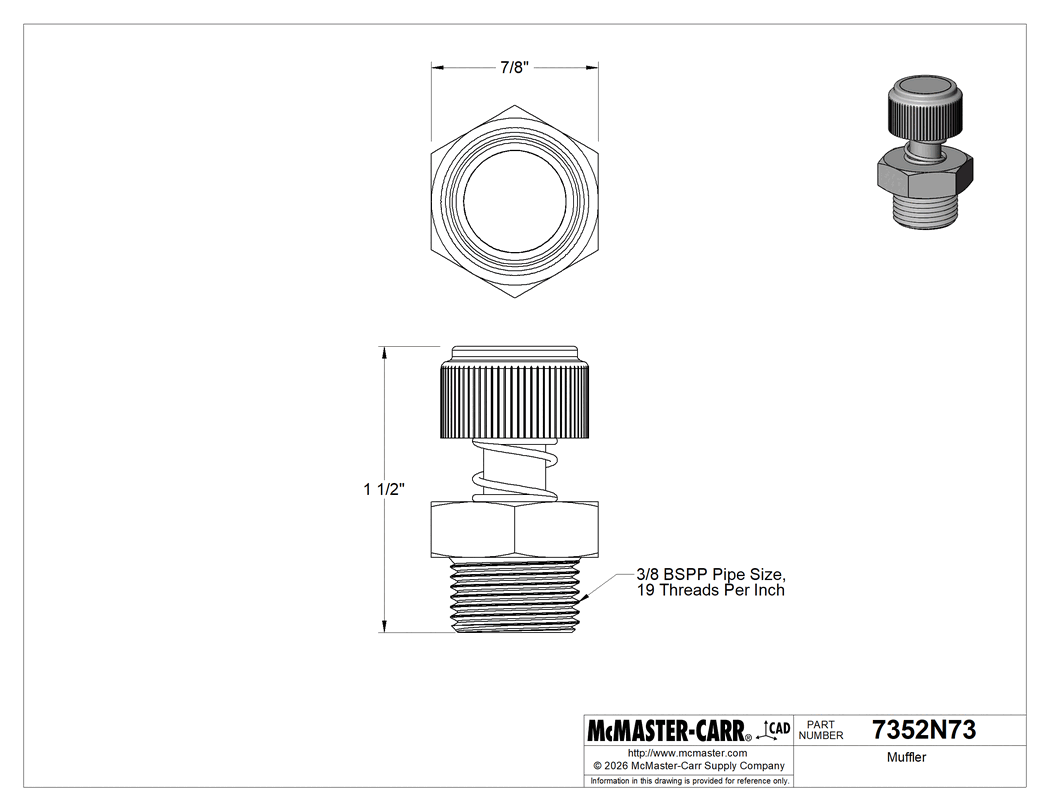

    Technical Drawing of Muffler, 3/8 BSPP Male, 53 scfm @ 100 PSI Flow Rate.
    2-D PDF
    000000 each
    7352N73
    In stock
    7352N73
    1-24 each000000
    25-99 each00000
    100 or more00000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Connects To

    Pipe

    Style

    J

    Thread Type

    BSPP

    Fitting Connection

    Threaded

    Gender

    Male

    Material

    Body

    Brass

    Fitting

    Brass

    Pipe Size

    3/8

    Maximum Flow Rate @ Pressure

    53 scfm @ 100 psi

    Maximum Pressure

    175 psi

    Maximum Temperature

    175° F

    Height

    1 1/2"

    For Use With

    Air, Inert Gas

    Removes Particle Size Down To

    100 μm

    Noise Reduction Rating

    10 dB to 20 dB

    Drive Style

    External Hex

    For Reducing

    Noise, Particles

    Hex Size

    7/8"

    Country of Origin

    Italy

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a), 6(b), 6(c)

    Schedule B Number

    842139.0190

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Use these mufflers with air-powered tools, valves, and cylinders to reduce noise and filter exhaust fumes.

    Brass Body—Brass, bronze, and copper mufflers offer good corrosion resistance.

    The information in this 3-D model is provided for reference only.
