    Multimeter

    Average Sensing, 0.5%V DC Accuracy, 10 Amps AC Current

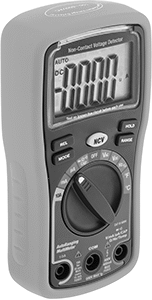

    Image of Product. Front orientation. Multimeter, Average Sensing, 0.5%V DC Accuracy, 10 Amps AC Current.

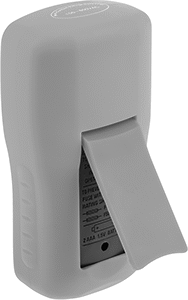

    Image of Product. Back orientation. Multimeter, Average Sensing, 0.5%V DC Accuracy, 10 Amps AC Current.

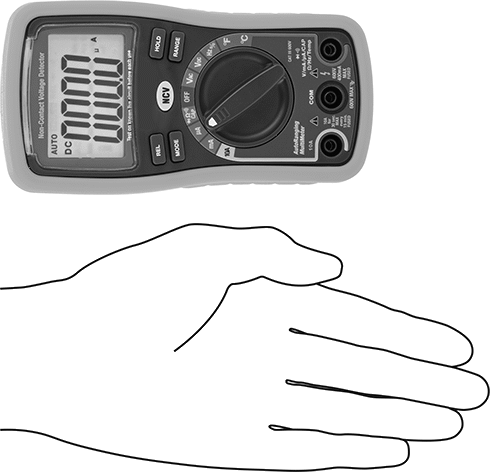

    Image of Product. Side1 orientation. Contains SizingReference. Multimeter, Average Sensing, 0.5%V DC Accuracy, 10 Amps AC Current.
    000000 each
    7420K47
    In stock
    7420K47
    000000 each
    Each
    In stock
    Display Type

    Digital

    AC Calculation

    Average Sensing

    Electrical Safety Rating

    CAT III, 600V

    Measures

    AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature

    Maximum AC Voltage

    600V AC

    Maximum DC Voltage

    600V DC

    DC Voltage Accuracy

    0.5%

    Maximum AC Current

    10 amp

    Maximum DC Current

    10 amp

    Hardware Features

    Overload Protection

    Display Count

    4,000

    Includes

    Temperature Probe, Test Leads

    Batteries

    Required

    Yes

    Included

    Yes

    Size

    AAA

    Number Required

    2

    Replaceable

    Yes

    Calculation Features

    Autoranging, Touch Hold

    Certification

    UL Listed, C-UL Listed

    Depth

    1.6"

    Diagonal Screen Size

    2.3"

    Digital Display Type

    LCD

    Drop Height

    3 ft.

    Height

    5.7"

    Maximum Capacitance

    200 µF

    Maximum Frequency

    40 MHz

    Maximum Resistance

    40 Mohm

    Measurement Unit

    Amps, Microamps, Microfarads, Millivolts, Nanofarads, Volts

    Number of Connections

    3

    Software Features

    Auto Power Off, Diode Check, Sound Alert for Continuity

    Width

    2.9"

    Country of Origin

    China, Vietnam

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    3A992

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    903031.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Additional Specifications

    SDS

    Take current, voltage, resistance, and other electrical measurements.

    Average-Sensing AC Calculation—Average-sensing multimeters take accurate AC measurements when testing equipment that has a linear load and draws current in a smooth sine wave, such as standard induction motors.

    Display Count—Display count is an industry designation and not an actual value. For example, a 6,000-count multimeter shows numbers up to 5,999. A higher display count means the multimeter can give a more precise measurement.
