Static-Control Precise-Control Screwdriver
T5 Torx
Drive Style | Torx |
Material | Chrome-Plated Steel |
Drive Size | T5 |
Overall Length | 5 5/16" |
Shaft | |
Length | 1 5/8" |
Overall Width | 3/32" |
Grip Style | Plain |
Static Control Rating | Static Dissipative |
Surface Resistivity | 1× 10^6Ω⋅cm to 1× 10^9Ω⋅cm |
Specifications Met | IEC 61340-5-1 |
Driver Style | Driver |
Driver Type | Standard |
Handle Material | Plastic |
Performance | Precise Control, Static Control |
Power Source | Manual |
Torx Tip Type | Straight |
Country of Origin | Germany |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820540.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Protect delicate microelectronics from harmful static shocks. Also known as ESD-safe screwdrivers, they drain static away from your workpiece before it causes damage. Precise-control screwdrivers allow for nimble, fine-tuned adjustments. Press the end of the handle with your palm to apply constant pressure while turning the body of the screwdriver with your fingertips.
Warning: These screwdrivers conduct electricity. Do not use them near active power sources.
Static Dissipative—Drain static charges faster than antistatic screwdrivers. They meet IEC requirements for preventing the buildup of electrostatic discharge.

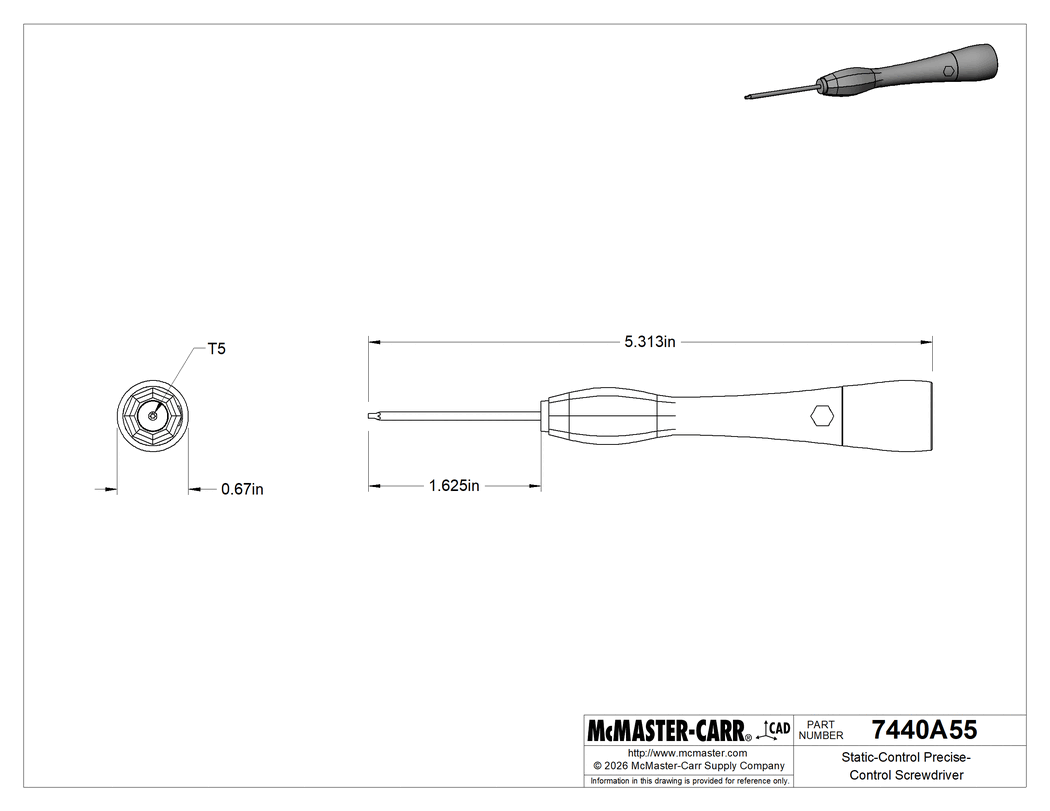

The information in this 3-D model is provided for reference only.
