    Large-Diameter Conveyor Roller

    Aluminum, 1/4" Round Axle, 2" Diameter, for 8" Between Frame Width

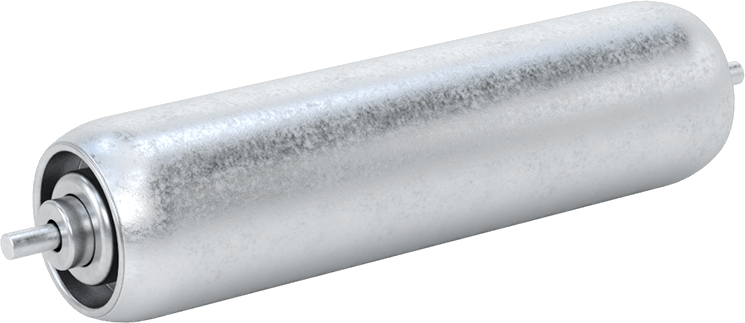

    Image of Product. Front orientation. Large-Diameter Conveyor Roller, Aluminum, 1/4" Round Axle, 2" Diameter, for 8" Between Frame Width .

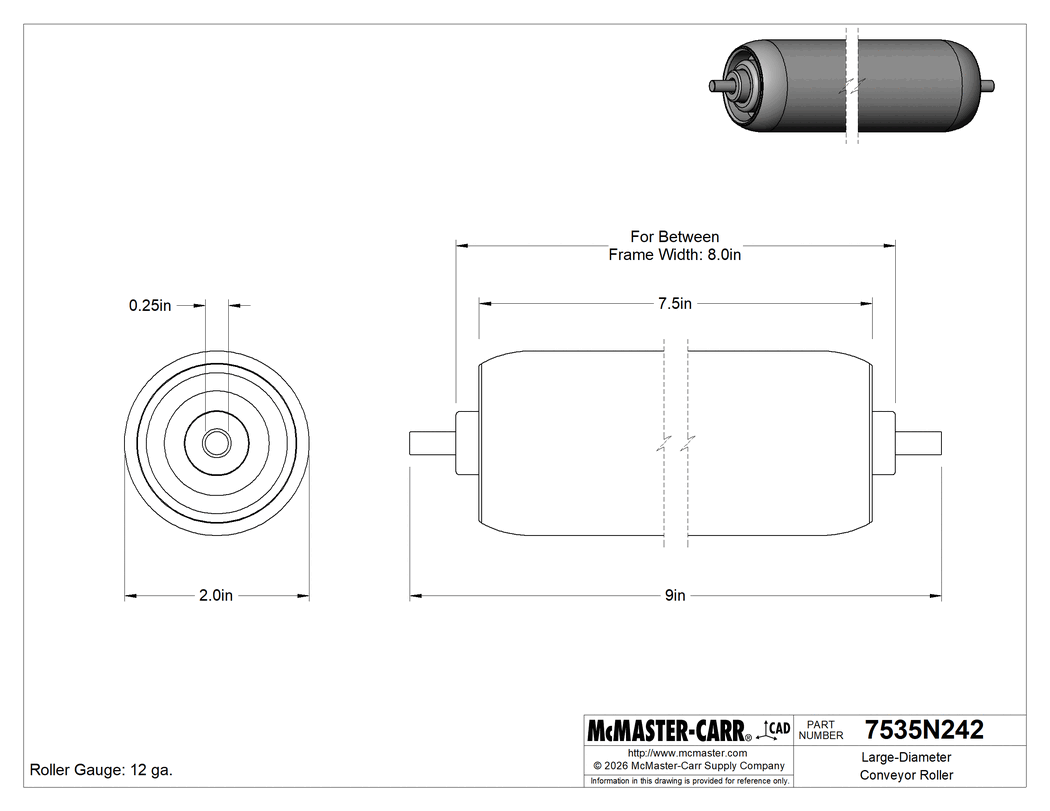

    Technical Drawing of Large-Diameter Conveyor Roller, Aluminum, 1/4" Round Axle, 2" Diameter, for 8" Between Frame Width .
    Image of Product. Side1 orientation. Contains SizingReference. Large-Diameter Conveyor Roller, Aluminum, 1/4" Round Axle, 2" Diameter, for 8" Between Frame Width .
    2-D PDF
    000000 each
    7535N242
    In stock
    7535N242
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Axle Diameter

    1/4"

    Axle Shape

    Round

    Roller

    Diameter

    2"

    Width

    7 1/2"

    Material

    Aluminum

    Gauge

    16

    For Between Frame Width

    8"

    Weight Capacity

    65 lb.

    Overall Width

    9"

    Bearing

    Type

    Ball

    Material

    Galvanized Steel

    Temperature Range

    -15° F to 220° F

    Axle Grip Type

    Spring Loaded

    Ball Bearing Material

    Galvanized Steel

    Motorized

    No

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    843139.0010

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Aluminum Rollers—Aluminum rollers are lightweight and corrosion resistant.

    The information in this 3-D model is provided for reference only.
