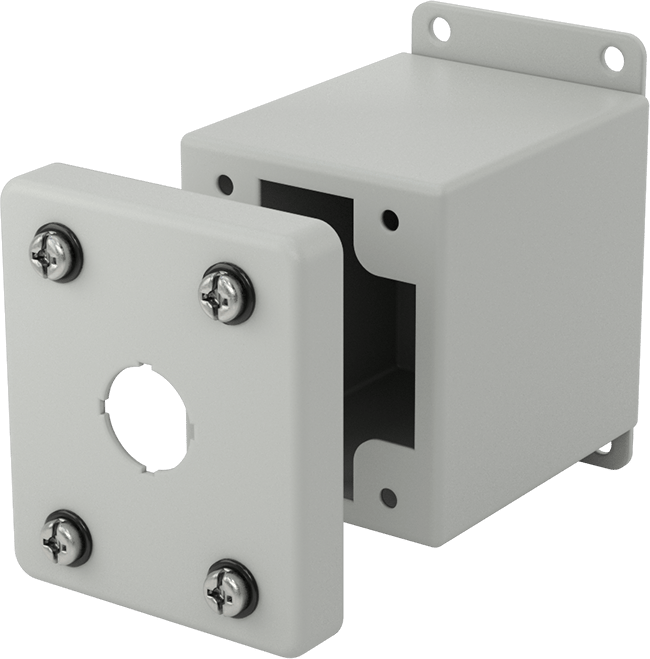

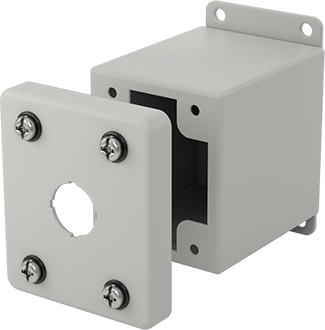

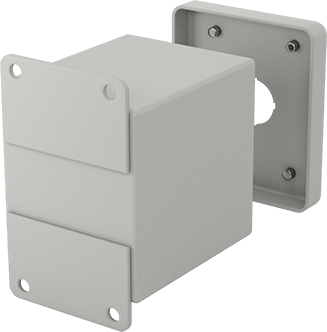

Dust-Tight Enclosure for 22 mm Push-Button
with Lift-Off Cover, 1 Hole, 3-1/2" x 3-3/4"
Cover Attachment Style | Lift Off |
Material | Powder-Coated Steel |
For Push-Button Size | 22 mm |
Number of | |
Holes | 1 |
Columns | 1 |
Rows | 1 |
Width | 3" |
Height | 3 1/2" |
Depth | 3 3/4" |
Cover Closure Method | Screw |
With Knockouts | No |
External Mount Type | Bracket |
Color | Gray |
Certification | UL Listed, CSA Certified |
Closure Screw Material | Steel |
Closure Screw Type | Captive |
Cover Clarity | Opaque |
Cover Material | Steel |
Enclosure Rating | NEMA 13, IP54 |
Environment | Dusty, Oily, Wet |
Features | Gasketed Cover |
Hole Diameter | 7/8" |
Inside | |
Width | 2 5/8" |
Height | 3 1/8" |
Depth | 3 3/8" |
Mounting Hole Diameter | 1/4" |
Number of Mounting Holes | 4 |
Performance | Push-Button Ready, Dust Tight, Oil Resistant |
Country of Origin | Canada |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Add control switches, emergency stops, and indicating lights while safeguarding internal power supplies and wiring from dust on your busy shop floors. These enclosures have a gasket that completely seals out swirling particles which are often created by grinding or drilling jobs. They also protect against oil leaks, water drips, and coolant sprays from milling machines.
Lift-Off Cover—The removable, screw-secured cover is best for full access during setup or service, but not for frequent entry.
Powder-Coated Steel—Inherently strong, these enclosures resist denting and cracking better than our other metal options. The coating forms a barrier against water and mild detergents, but if scratched, the underlying steel may rust.
Mount

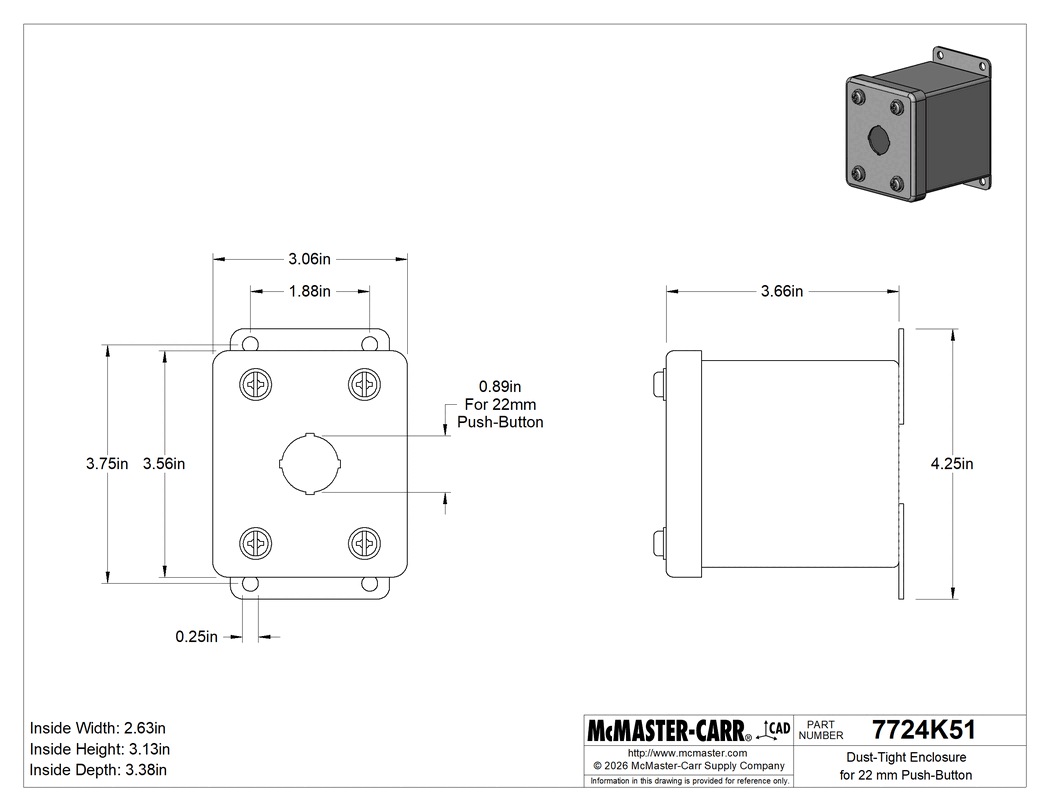

The information in this 3-D model is provided for reference only.
