Thrust Ball Bearing
for 7/8" Diameter Shaft Ends
Bearing Type | Ball |
Lubrication | Required |
Material | Steel |
For Shaft Diameter | 7/8" |
OD | 7/8" |
OD Tolerance | -0.002" to 0" |
Thickness | 11/16" |
Thickness Tolerance | -0.005" to 0.005" |
Dynamic Thrust Load Capacity | 2,150 lb. |
Maximum Rotation Speed | 1,500 rpm |
Temperature Range | -40° F to 250° F |
Ball Bearing Profile | Standard |
Ball Material | Steel |
Bearing Seal Type | Open |
Construction | One Piece |
For Load Direction | Thrust |
For Shaft Type | Round |
Performance | Ultra Low Friction, Tight Clearance |
Static Thrust Load Capacity | 3,500 lb. |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C999 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5008 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

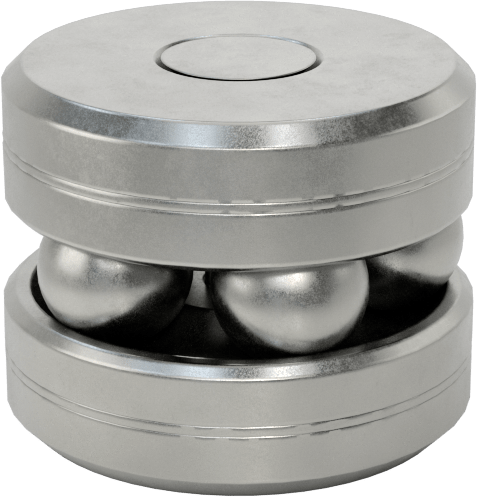

Save space around your shaft—set the end of your shaft vertically on top of these bearings instead of inserting it through. They work similar to miniature turntables, so you can even use them to precisely rotate equipment. Fastened by a center rivet, these bearings don’t require you to assemble cages and washers like three-piece designs. They have thick washers, deeply grooved raceways, and oversized balls to support higher loads than bearings of the same size. The balls are exposed, which makes them easy to lubricate, but the oil may attract dust and grime.
Steel—Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.
Open—With no rubber seal to block airflow, these bearings dissipate heat quickly, extending the life of the lubricant and reducing friction over time.

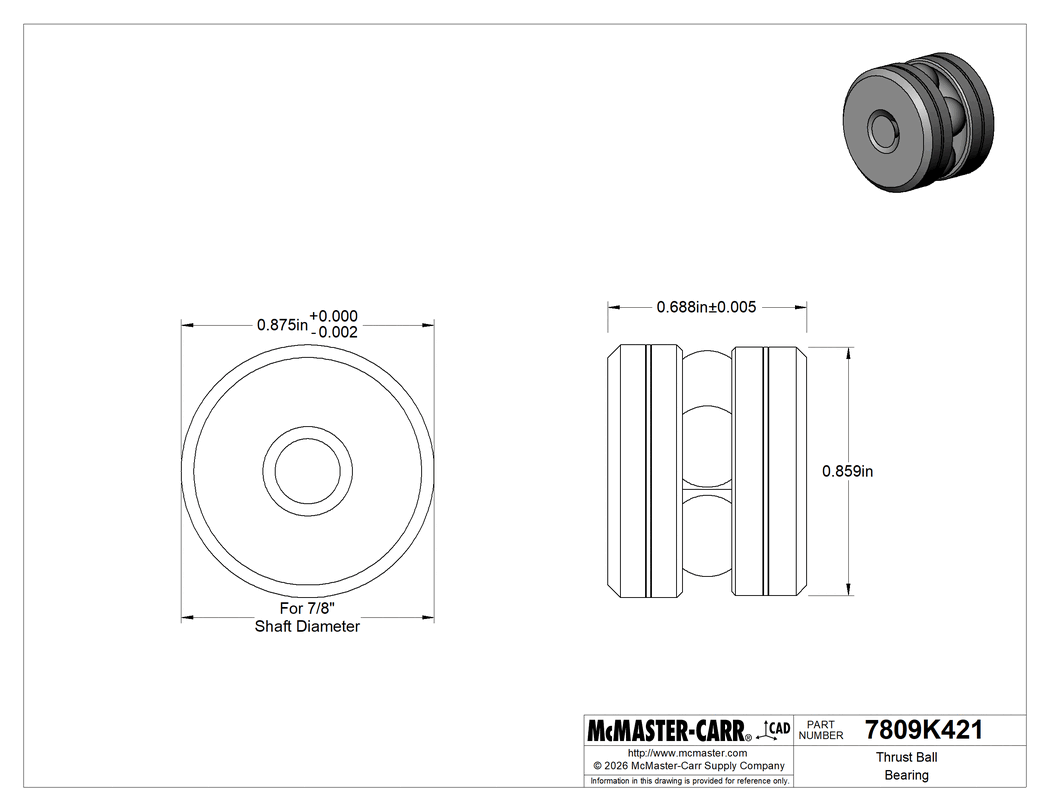

The information in this 3-D model is provided for reference only.
