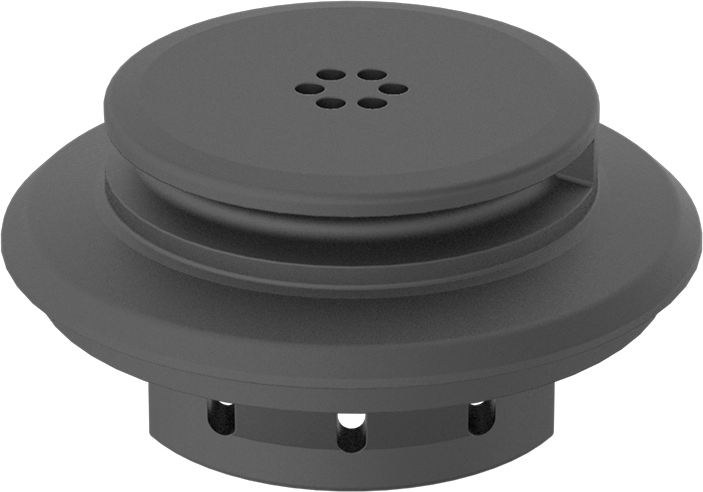

Submersible Snap-in Breather Vent
for 7/8" Diameter Hole
Material | Nylon |
For Hole Diameter | 7/8" |
Head Diameter | 7/8" |
For Maximum Panel Thickness | 1/8" |
Temperature | -40° F to 220° F |
Environment | Corrosive, Dusty, Outdoor, Submersible, Washdown, Wet |
Enclosure Rating | IP68, NEMA 4X |
Certification | UL Recognized Component |
Color | Black |
Features | Pressure Compensating Seal |
Filter Material | Acrylic Plastic |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392350.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
No threaded hole or tools needed—snap these vents into enclosures with a maximum 1/8” panel thickness to let airflow in and keep water out even when submerged. Use them to maintain consistent pressure inside your enclosure as temperatures change. These vents have a pressure compensating seal that prevents pressure buildup. They also have an acrylic filter that resists dust, water, and oil.

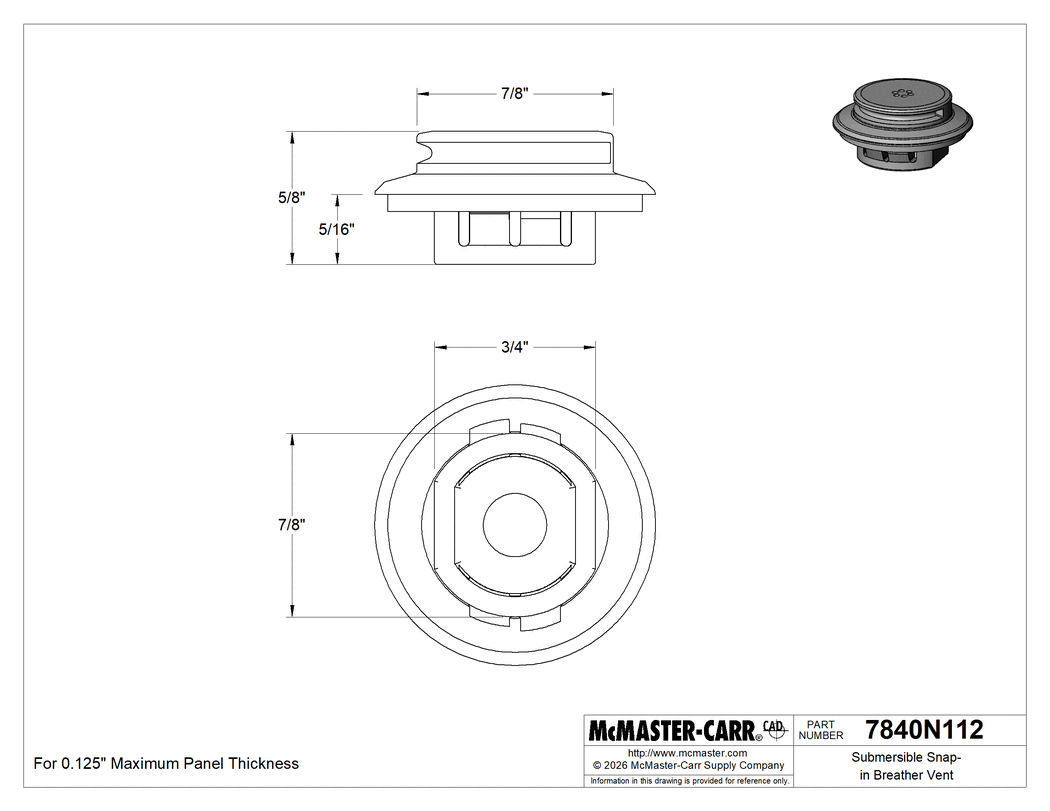

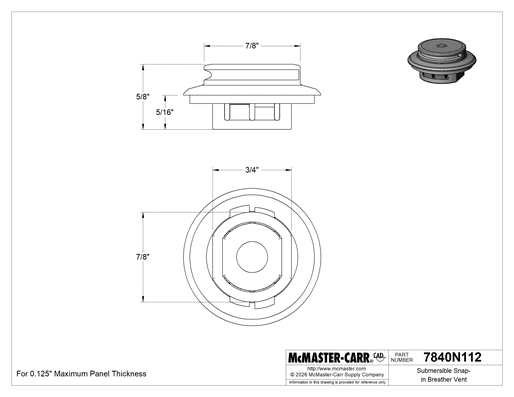

The information in this 3-D model is provided for reference only.
