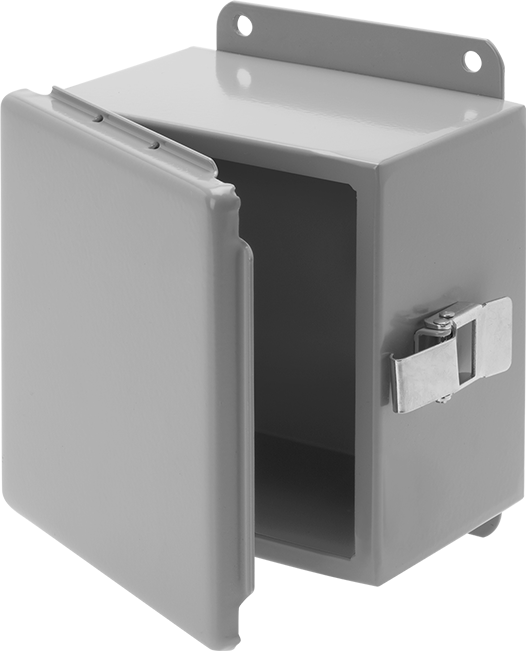

Oil-Resistant Steel Enclosure
with Hinged Cover and Quick-Release Latch, 6" x 6" x 4"
Hinge Location | Side |
Cover Attachment Style | Hinged |
Material | Powder-Coated Steel |
Width | 6" |
Height | 6" |
Depth | 4" |
Cover Closure Method | Quick-Release Latch |
With Knockouts | No |
External Mount Type | Bracket |
Color | Gray |
Certification | UL Listed, C-UL Listed |
Color Code | ANSI 61 |
Cover Clarity | Opaque |
Cover Material | Steel |
Enclosure Rating | NEMA 13, IP65 |
Environment | Dusty, Oily, Washdown, Wet |
Features | Continuous Hinge, Gasketed Cover |
Hinge Material | Steel |
Inside | |
Width | 5 1/4" |
Height | 5 1/4" |
Depth | 3 1/2" |
Mounting Fasteners Included | No |
Mounting Hole Diameter | 5/16" |
Number of Doors | 1 |
Number of Mounting Holes | 4 |
Performance | Dust Tight, Oil Resistant, Quick Access |
Specifications Met | UL 508A |
UL File Number | E27567, E61997 |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
A step up from indoor-only enclosures, these have a gasket that completely seals out dust which is often created by grinding or drilling jobs. They also guard against oil leaks, water drips, and coolant sprays from milling machines. Use them to keep switches, fuses, and wiring protected on your busy shop floors.
Hinged Cover—The cover swings open for fast, frequent access and remains attached to prevent drops or loss.
Powder-Coated Steel—Inherently strong, these enclosures resist denting and cracking better than our other metal options. The coating forms a barrier against water and mild detergents, but if scratched, the underlying steel may rust.
Mount

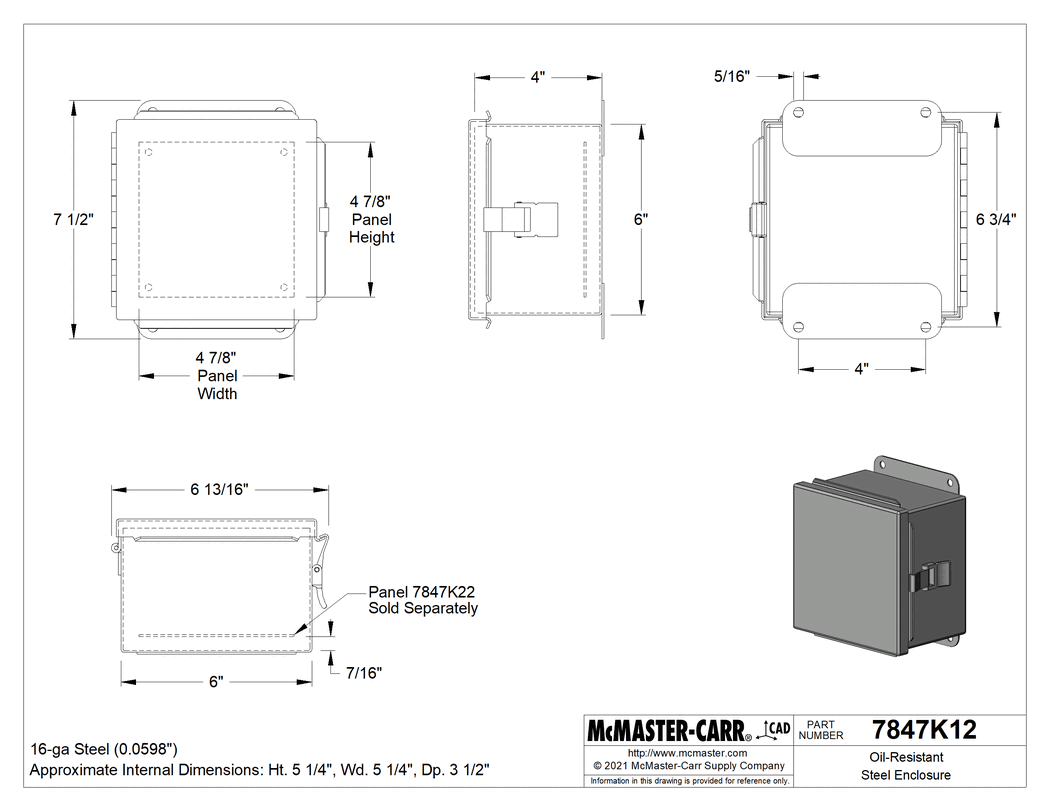

The information in this 3-D model is provided for reference only.
