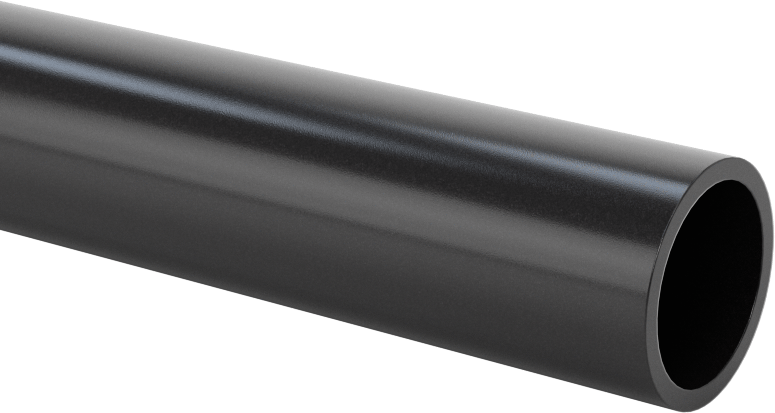

Moisture-Seal Heat-Shrink Tubing
Semi-Rigid, 3:1 Shrink, 0.5" ID Before Shrink, 4' Long
Shrink Ratio | 3:1 |
Material | Polyolefin |
Flexibility | Semi-Rigid |
Length | 4 ft. |
ID | |
Before Shrinking | 0.5" |
Minimum After Shrinking | 0.16" |
Minimum Wall Thickness After Shrinking | 0.07" |
Shrink Temperature | 250° F |
Temperature Range | -65° F to 230° F |
Dielectric Strength | 700 V/mil |
Certification | UL Recognized Component |
Color | Black |
Clarity | Opaque |
Heat-Shrink Tubing Type | Tubing |
Liner Material | Adhesive |
Performance | Moisture Resistant |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Create a water-resistant seal—this tubing has an adhesive lining that melts when the tubing is heated and bonds to the underlying surface. Choose tubing with a larger shrink ratio to cover irregularly shaped objects or cable assemblies that have a large size difference between the cable and connector.
Semi-Rigid—Semi-rigid tubing bends only slightly.
Dielectric Strength—Dielectric strength is the maximum voltage a material can handle before it starts to breakdown. The higher the dielectric strength of a material, the better it is for preventing electricity, heat, or signal from dissipating from wire and cable.

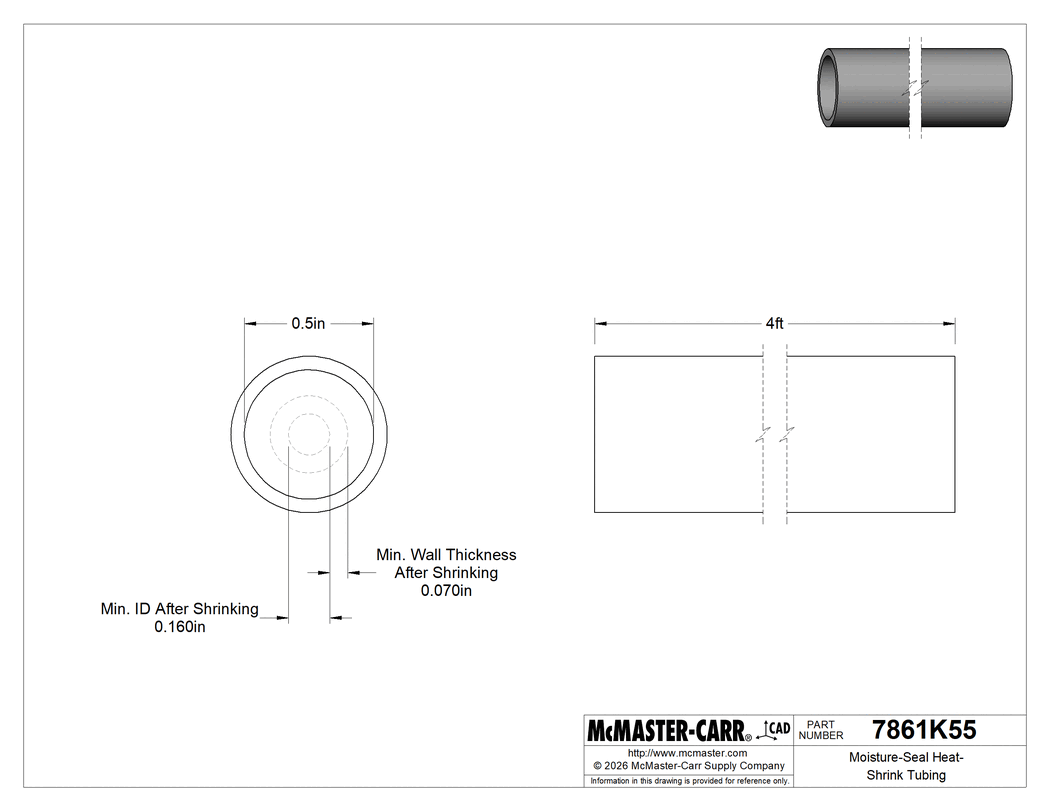

The information in this 3-D model is provided for reference only.
