    Timing Belt with Teeth on Both Sides

    XL Series, 3/8" Width, Trade No. TP150xL037

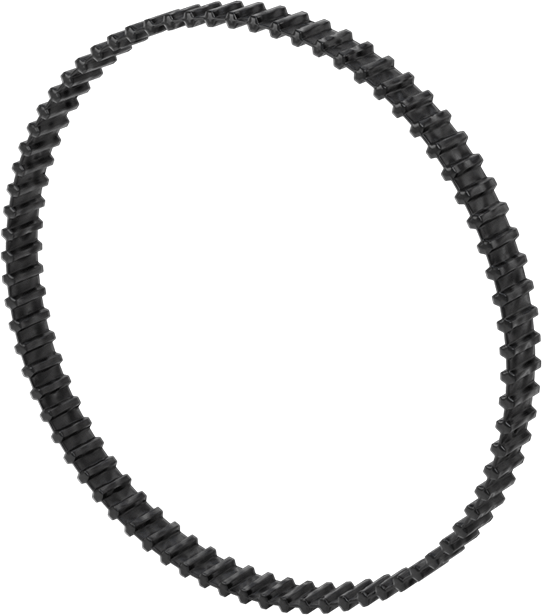

    Image of Product. Front orientation. Timing Belt with Teeth on Both Sides, XL Series, 3/8" Width, Trade No. TP150xL037.

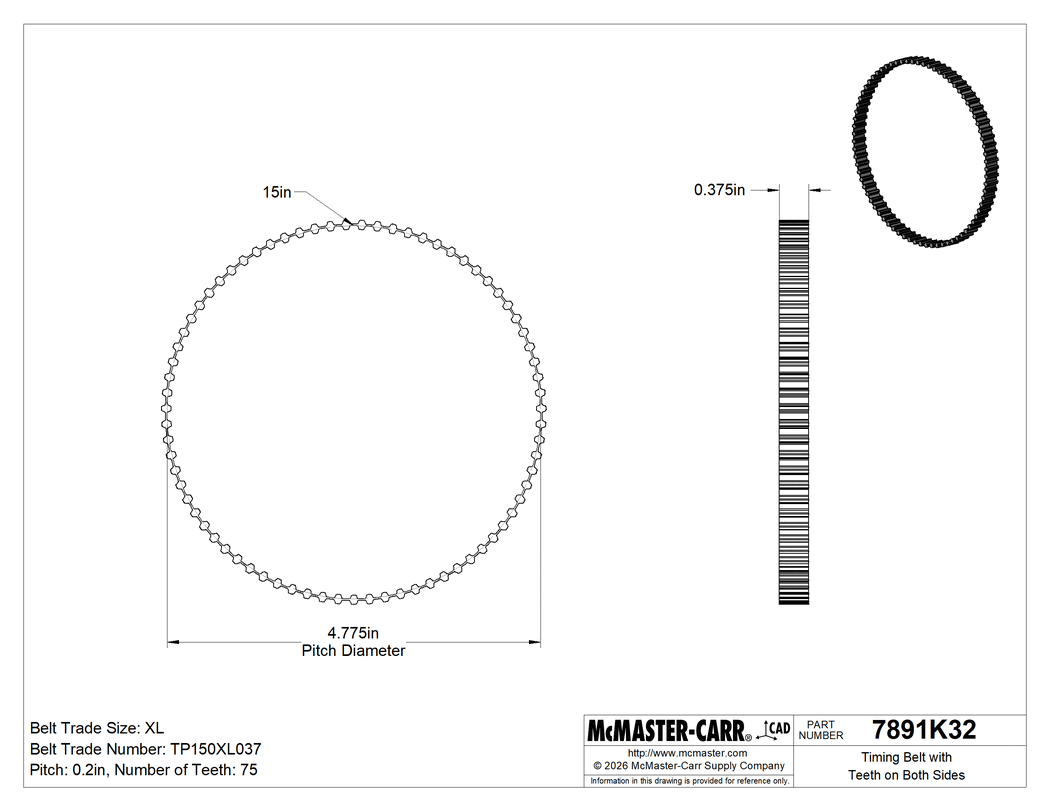

    Technical Drawing of Timing Belt with Teeth on Both Sides, XL Series, 3/8" Width, Trade No. TP150xL037.

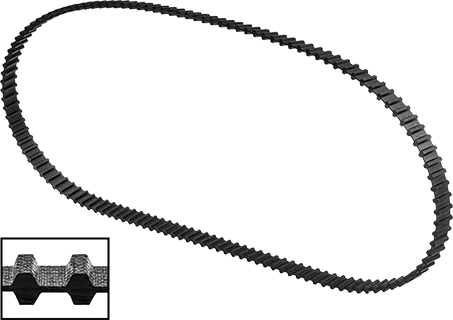

    Image of Product. Front orientation. Contains Inset. Timing Belt with Teeth on Both Sides, XL Series, 3/8" Width, Trade No. TP150xL037.
    Image of System. Front orientation. Timing Belt with Teeth on Both Sides, XL Series, 3/8" Width, Trade No. TP150xL037.
    Image of Product. Side1 orientation. Contains SizingReference. Timing Belt with Teeth on Both Sides, XL Series, 3/8" Width, Trade No. TP150xL037.
    2-D PDF
    000000 each
    7891K32
    In stock
    7891K32
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tooth Profile

    Trapezoidal

    Tooth Location

    Both Sides

    Material

    Neoprene

    Belt Trade Size

    XL

    Width

    3/8"

    Outer Circle

    15"

    Number of Teeth

    75

    Pitch

    0.200"

    Reinforcement Material

    Fiberglass

    Tooth Finish

    Nylon Coated

    Temperature Range

    -22° F to 212° F

    Belt Trade Number

    150DXL037

    Belt Type

    Timing

    Color

    Black

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    401039.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Drive three or more pulleys in reversing and serpentine drive systems with one belt. With trapezoidal teeth on both sides, these belts transmit power from either side. They also rotate pulleys in opposite directions without slipping.

    Neoprene—Durable and weather resistant, but lose elasticity if exposed to oil and fuel. These belts are reinforced, so they're strong enough to transmit power without stretching. Plus, nylon-coated teeth minimize friction and protect the surface from wear.

    The information in this 3-D model is provided for reference only.
