    High-Strength HTD Timing Belt

    15 mm Wide, Trade Number 450-5m-15

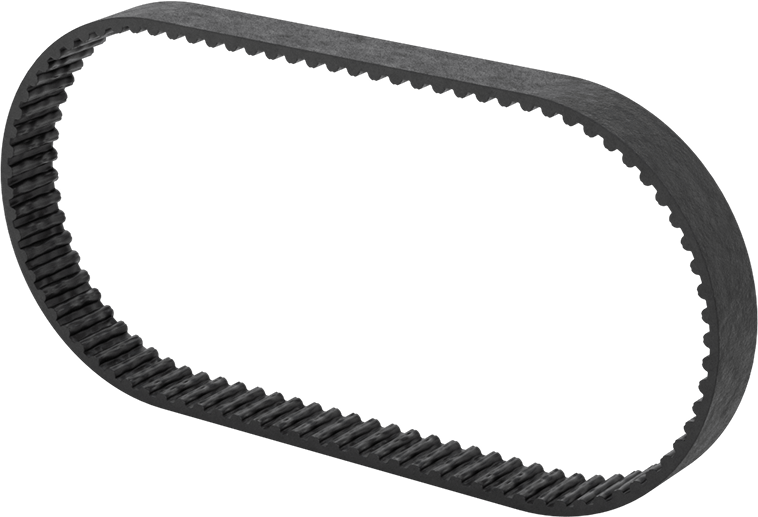

    Image of Product. Front orientation. High-Strength HTD Timing Belt, 15 mm Wide, Trade Number 450-5m-15.

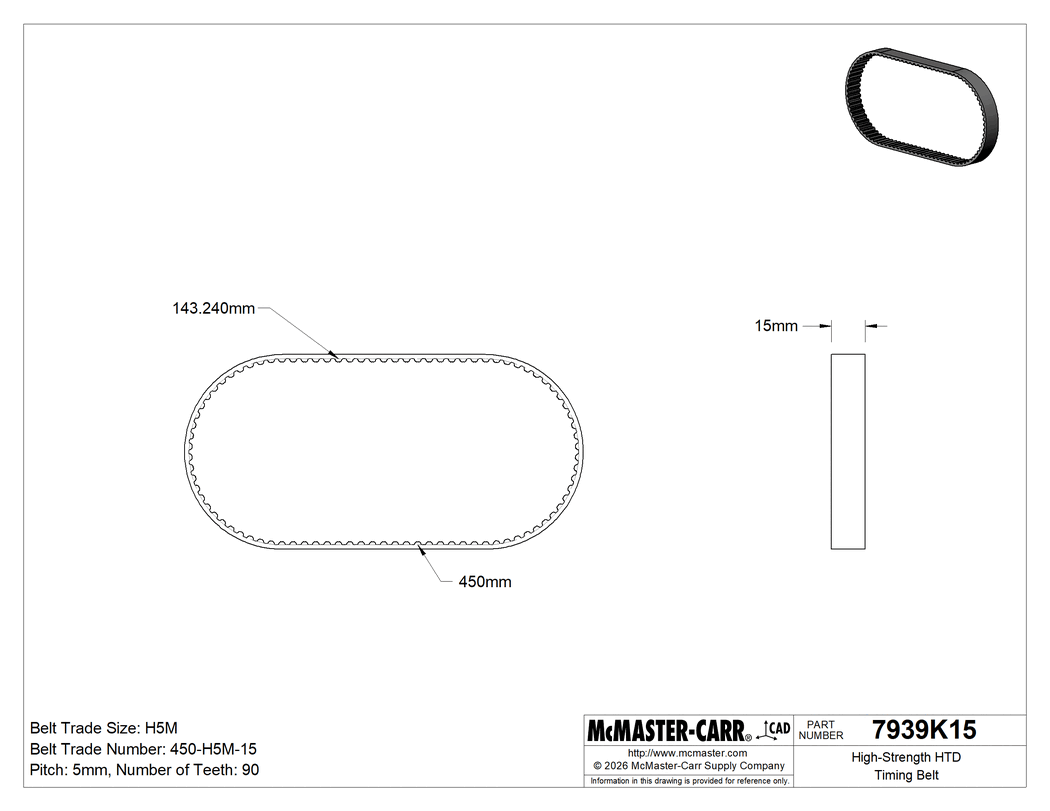

    Technical Drawing of High-Strength HTD Timing Belt, 15 mm Wide, Trade Number 450-5m-15.

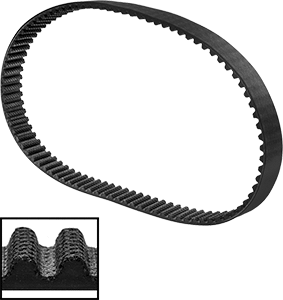

    Image of Product. Front orientation. Contains Inset. High-Strength HTD Timing Belt, 15 mm Wide, Trade Number 450-5m-15.
    Image of Product. Side1 orientation. Contains SizingReference. High-Strength HTD Timing Belt, 15 mm Wide, Trade Number 450-5m-15.
    2-D PDF
    000000 each
    7939K15
    In stock
    7939K15
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tooth Profile

    Curved (HTD)

    Tooth Location

    One Side

    Material

    Neoprene

    Belt Trade Size

    H5M

    Width

    15 mm

    Outer Circle

    450 mm

    Number of Teeth

    90

    Pitch

    5 mm

    Reinforcement Material

    Fiberglass

    Tooth Finish

    Nylon Coated

    Temperature Range

    -40° F to 180° F

    Belt Trade Number

    450-R5M-15

    Belt Type

    Timing

    Color

    Black

    Manufacturer Equivalent Series

    Carlisle RPP, Gates PowerGrip HTD, Omega HP

    Performance

    High Torque

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    401039.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Curved teeth engage with the matching pulley better than standard trapezoidal teeth, so these belts transmit about twice the torque. All are compatible with Gates PowerGrip HTD, Omega HP, and Carlisle RPP series.

    Neoprene—Durable and weather resistant, but lose elasticity if exposed to oil and fuel. These belts are reinforced, so they're strong enough to transmit power without stretching. Plus, nylon-coated teeth minimize friction and protect the surface from wear.

    The information in this 3-D model is provided for reference only.
