    High-Strength Ultra-Quiet Timing Belt

    Tire Track Teeth, 16 mm Wide, y-1280

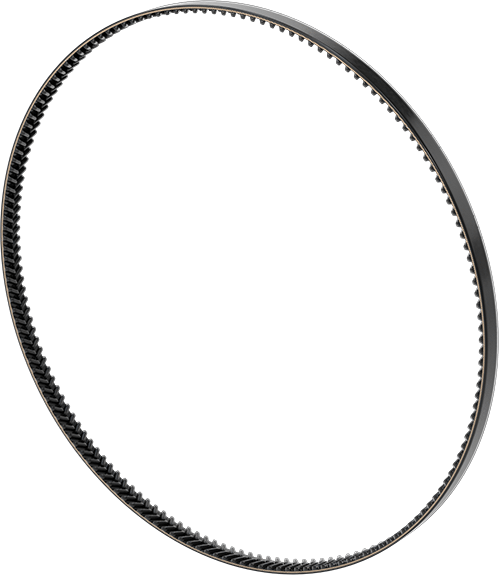

    Image of Product. Front orientation. High-Strength Ultra-Quiet Timing Belt, Tire Track Teeth, 16 mm Wide, y-1280.

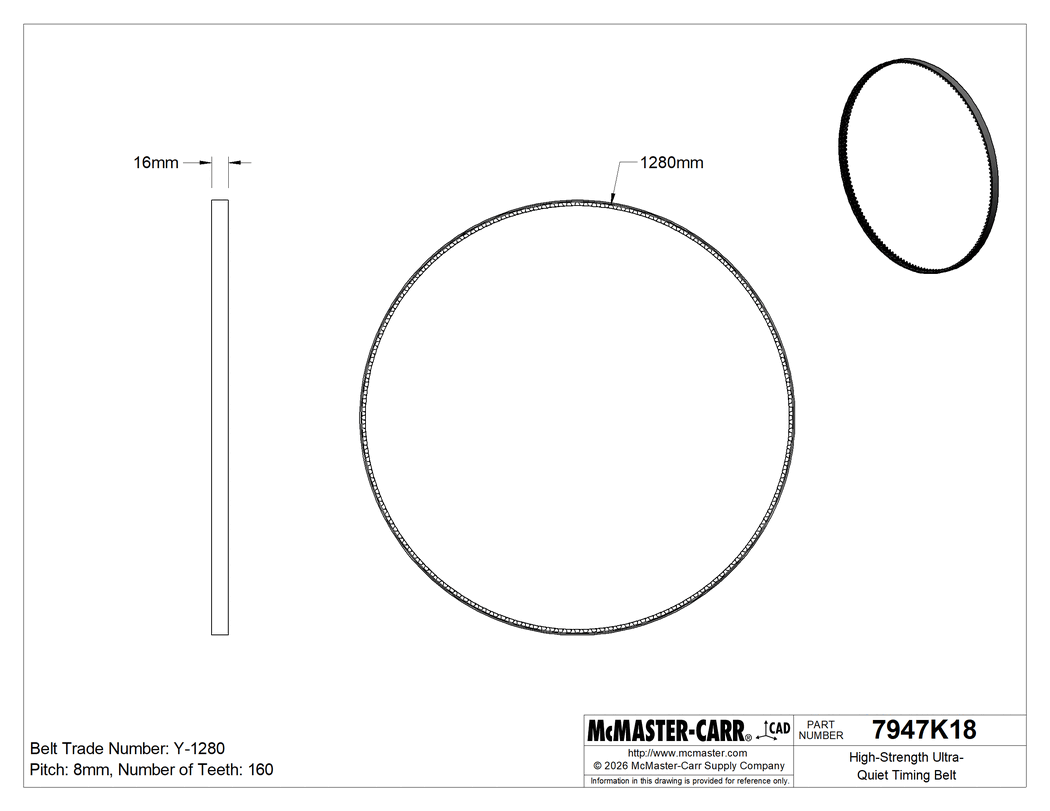

    Technical Drawing of High-Strength Ultra-Quiet Timing Belt, Tire Track Teeth, 16 mm Wide, y-1280.

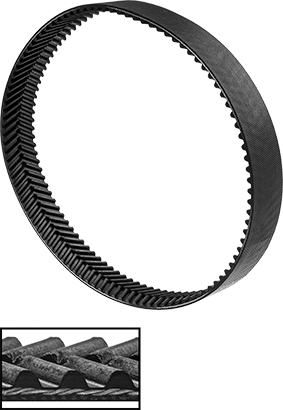

    Image of Product. Front orientation. Contains Inset. High-Strength Ultra-Quiet Timing Belt, Tire Track Teeth, 16 mm Wide, y-1280.
    Image of Product. Side1 orientation. Contains SizingReference. High-Strength Ultra-Quiet Timing Belt, Tire Track Teeth, 16 mm Wide, y-1280.
    2-D PDF
    000000 each
    7947K18
    Ships in 3-6 weeks
    7947K18
    000000 each
    Each
    Ships in 3-6 weeks
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tooth Profile

    Tire Track

    Tooth Location

    One Side

    Material

    Buna-N

    Belt Trade Size

    NRG

    Width

    16 mm

    Outer Circle

    1,280 mm

    Number of Teeth

    160

    Pitch

    8 mm

    Reinforcement Material

    Aramid

    Temperature Range

    -40° F to 200° F

    Belt Type

    Timing

    Color

    Black

    Performance

    High Torque, Quiet Drive

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    401035.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Crank up the power and turn down the noise. With curved teeth arranged in a tire-track pattern, these belts fit snugly into matching pulleys. The flush fit reduces play (backlash) for more precise movement and up to 25% less operating noise. Compared to belts with trapezoidal teeth, they deliver higher torque with less vibration and smoother performance.

    Buna-N—Resist oil, fuel, and abrasion. However, avoid using Buna-N belts outdoors because they will quickly crack. Reinforced with aramid, these belts offer very high strength and low stretch.
