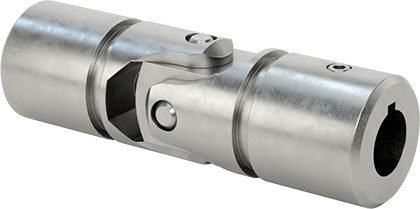

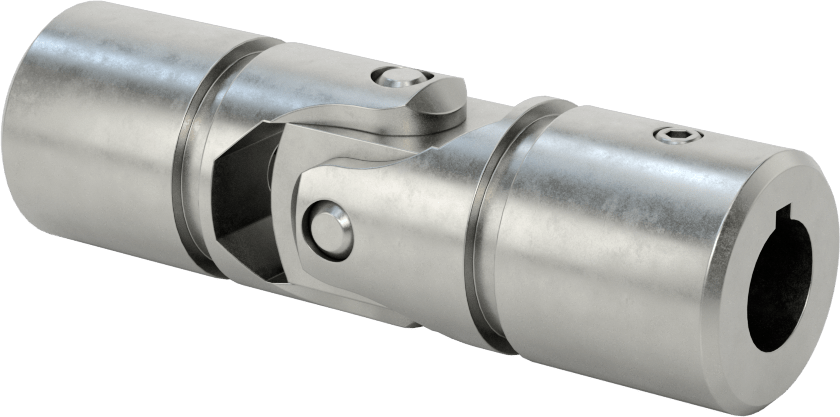

Pin-and-Block Single U-Joint
Steel, for 1/2" Diameter x 1" Deep Keyed Shaft
Joint Type | Pin and Block |
Material | Steel |
For Shaft Type | Keyed |
For Shaft | |
Diameter | 1/2" |
Depth | 1" |
Joint Dia. | 1" |

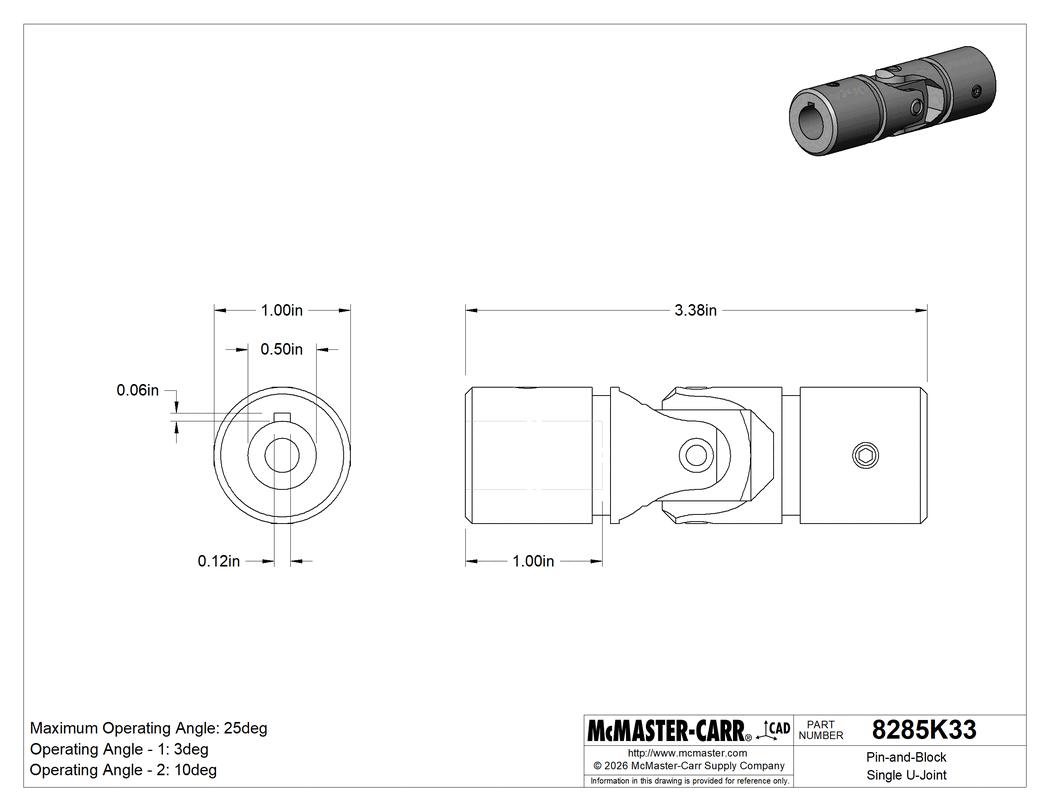

Overall Length | 3 3/8" |
Maximum Operating Angle | 25° |
Maximum Rotation Speed | 1,750 rpm |
Maximum Torque | 1,560 in·lbf |
Torque | |
3° Operating Angle | 595 in·lbf @ 300 rpm |
10° Operating Angle | 200 in·lbf @ 300 rpm |
Shaft Mount Type | Set Screw |
Features | Retaining Grooves |
For Shaft Misalignment Type | Angular |
Keyway | |
Width | 1/8" |
Depth | 1/16" |
Lubrication | Required |
Number of Keyways | 1 |
Number of Set Screws Required | 2 |
Set Screw | |
Drive Style | Hex |
Material | Steel |
Set Screw Included | Yes |
U-Joint Type | Single |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848360.4000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Connect and transfer torque between two shafts that are misaligned at an angle. Your shafts’ misalignment will affect the speed and torque these U-joints will be able to transmit. The more the shafts are misaligned, the less speed and torque they’ll be able to transmit.
Pin-and-Block Joint—Pin-and-block U-joints handle higher torque at lower speeds than other joint types such as those with needle bearings, making them a good choice for most applications. To extend their life by keeping lubricant in and contaminants out, use the grooves on their body to add a cover (sometimes called bellows or boots).
Steel—Steel U-joints are strong and handle more torque than zinc alloy U-joints.
For Keyed Shafts—U-joints for keyed shafts connect to shafts with set screws. Unlike U-joints that use spring pins, there’s no drilling required.
