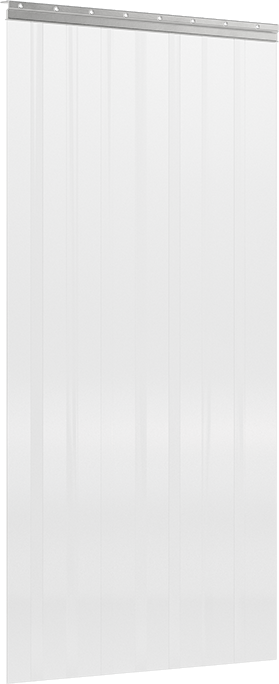

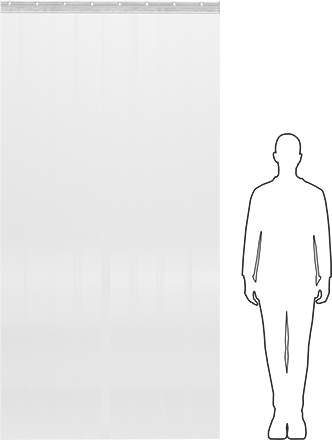

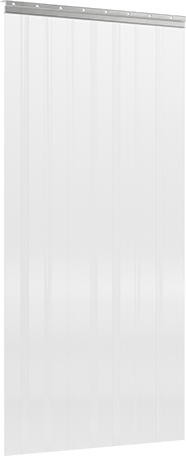

Bolt-on Strip Door
4 Feet Wide x 8 Feet High, with 8" Wide Strips
Strip | |
Texture | Smooth |
Overlap | 2" |
Mounting Hole Center-to-Center | 2" |
Clarity | Clear |
Color | Clear |
Material | Vinyl Plastic |
Mount Type | Bolt On |
Thickness | 0.08" |
Width | 8" |
Door Width | 4 ft. |
Door Height | 8 ft. |
Number of Strips | 8 |
For Use Outdoors | Yes |
Temperature Range | 0° F to 150° F |
Mounting Plate | |
Material | Aluminum |
Mounting Fasteners Included | No |
Mounting Hole Diameter | 1/2" |
Door Type | Strip |
Environment | Outdoor |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392520.0010 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

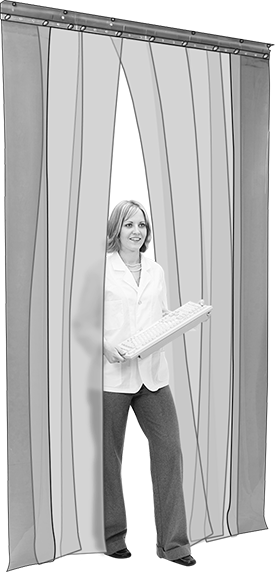

Allow personnel and vehicles to move freely through doorways while keeping heated or cooled air in and dirt, dust, and debris out. These strip doors consist of a mounting plate and vinyl strips. The strips overlap each other to prevent gaps and come in different widths. Narrow strips are easier to pass through while wider strips create a better seal. Each door has two orange strips to mark the wall location on each side.

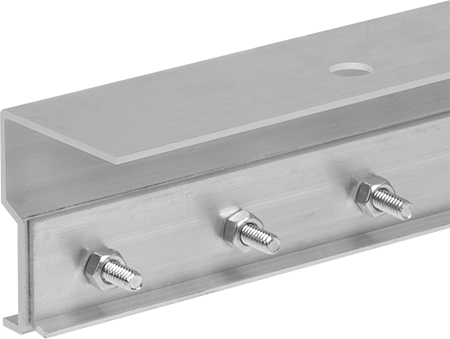

Bolt-On Strip—Place strips on the threaded studs and use the included nuts to hold them securely in place.

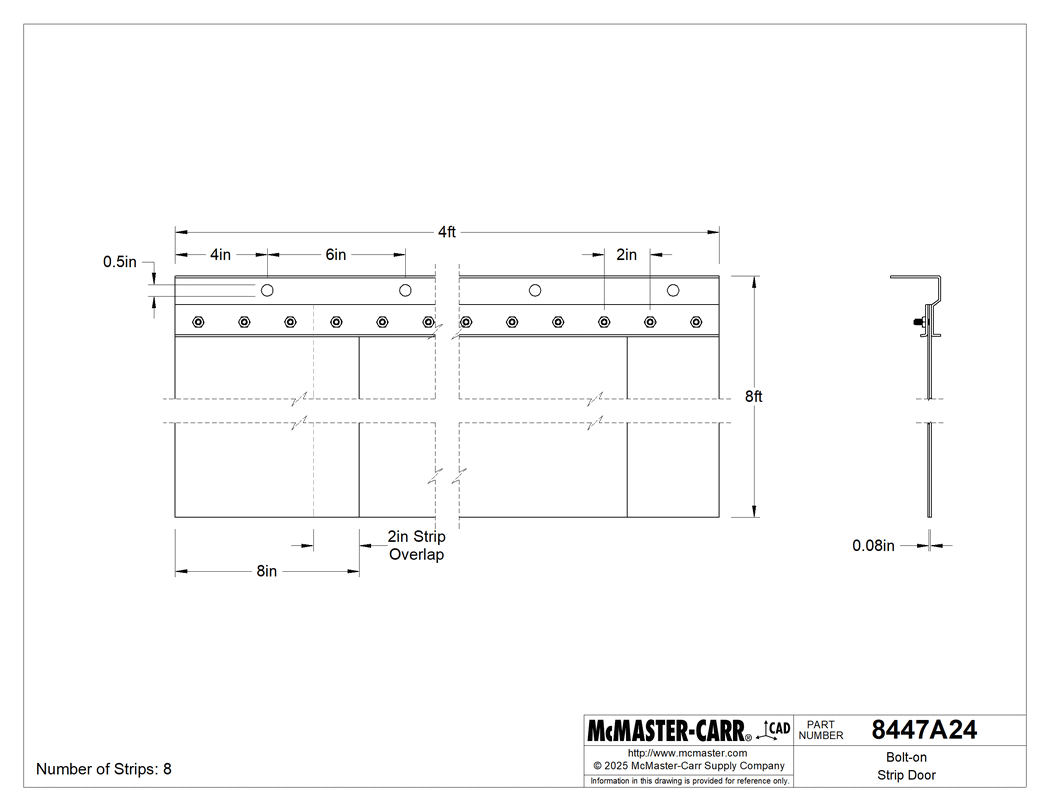

The information in this 3-D model is provided for reference only.
