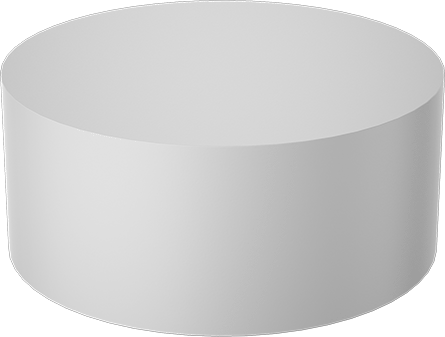

Easy-to-Machine Wear-Resistant Cast Nylon Disc

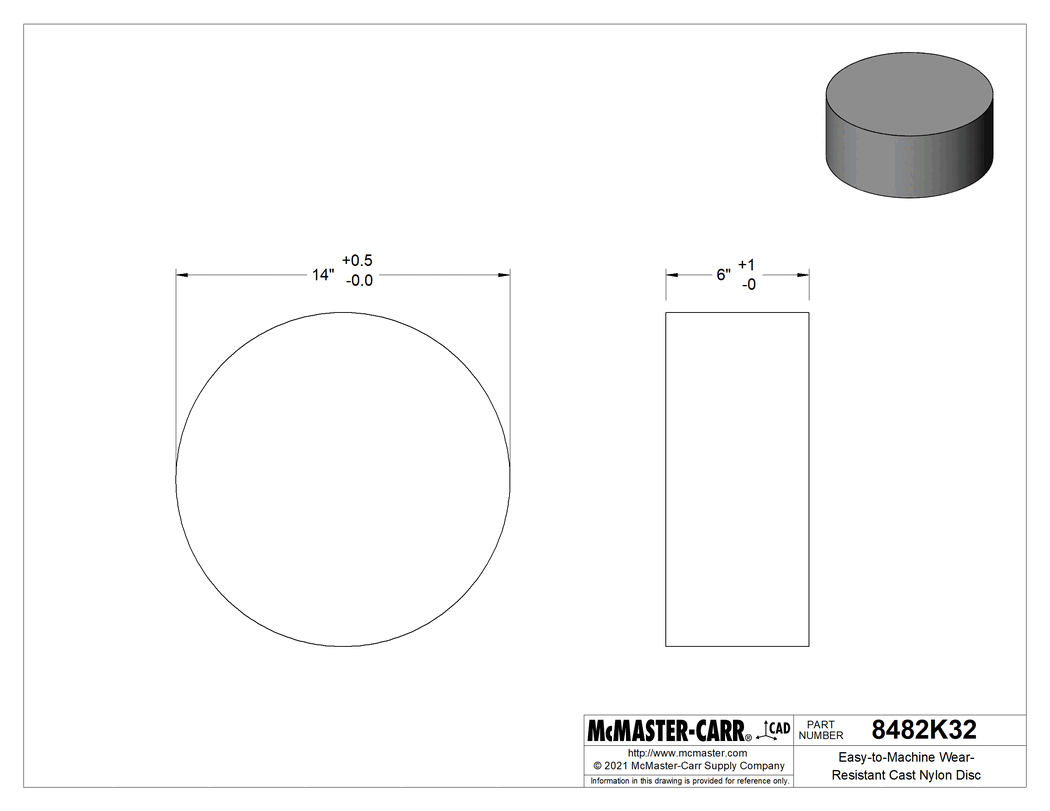

14" Diameter, 6" Long
Relative Length | Short |
Color | Off-White |
Length | 6" |
Length Tolerance | 0" to 1" |
Diameter | 14" |
Diameter Tolerance | 0.000" to 0.500" |
Fabrication | Cast |
Temperature | -20° F to 200° F |
Tensile Strength | 10,000 psi |
Impact Strength | 1.5 ft·lbf/in |
Flammability Rating | UL 94 HB |
Application | Multipurpose |
Chemical Resistance | |
Excellent | Acetone, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Water |
Not Recommended | Acetic Acid (White Vinegar), Chlorine, Hydrochloric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil |
Clarity | Opaque |
Coefficient of Friction | 0.26 |
Coefficient of Thermal Expansion | 5× 10^-5 /°F |
Comparable To | Ertalon, Nycast, Nylatron |
Density | 0.042 lb/in³ |
Dielectric Strength | 500 V/mil |
Environment | Food and Beverage |
Flexibility | Semi-Rigid |
Flexural Modulus | 420,000 psi to 500,000 psi |
Food Industry Standard | FDA Compliant 21 CFR 177.1500 |
For Use Outdoors | No |
For Use With | Beverage, Food, Acetone, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Water |
Hardness | Rockwell R110 to Rockwell R115 |
Hardness Rating | Hard |
Material | Nylon |
Material Grade | Nylon 6 |
Performance | Chemical Resistant, Extra High Strength, Flame Retardant, Machinable, Thermally Stable, Ultra Electrically Insulating, Ultra Low Friction, Wear Resistant |
Specifications Met | ASTM D5989 |
Texture | Smooth |
Shape | Disc, Rod |
Tolerance Rating | Oversized |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.5% to 0.6% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391690.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |

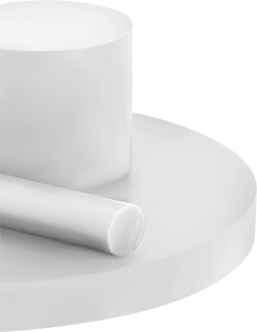

Because these cast nylon 6 rods and discs are easier to machine than standard nylon 6/6, they’re often made into pulleys, screws, bushings, and bearings. They’re also better electrical insulators. They have a wear-resistant, slippery surface that reduces friction. This material is comparable to Nylatron and Nycast.

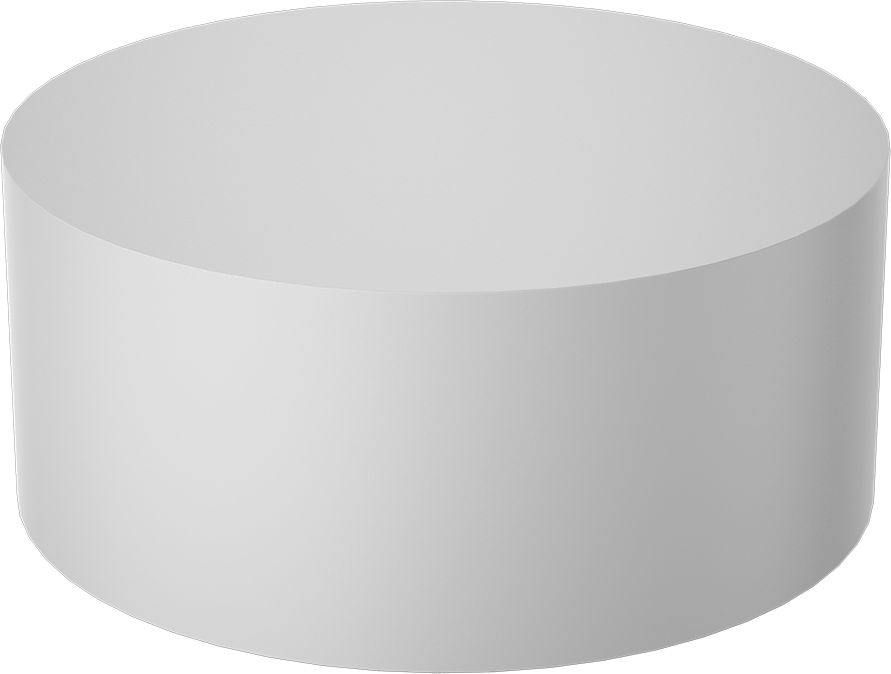

The information in this 3-D model is provided for reference only.
