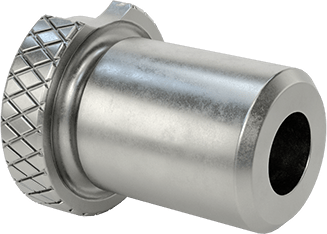

Removable Drill Bushing
0.377" ID, 3/4" OD, 1" Long
ID | 0.377" |
OD | 3/4" |
Length | 1" |
For Drill Bit Size | V |
For Drill Bit Size Decimal Equivalent | 0.377" |
Head | |
OD | 1 3/64" |
Thickness | 1/4" |
Lock Screw/Bushing Center-to-Center | 3/4" |
Tolerance | |
ID | 0.0001" to 0.0005" |
OD | -0.0002" to 0" |
Length | -0.01" to 0.01" |
Drill Bushing Type | SF |
Material | Steel |
Hardness | Rockwell C61 |
Drill Bushing Texture | Serrated, Smooth |
Installation Permanence | Removable |
Country of Origin | India |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
Schedule B Number | 846620.8035 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Replace worn bushings and quickly change IDs without needing to repeatedly use a lever press. Instead of pressing bushings in and out of your jig fixture, which can cause damage, these bushings slide in and out of sleeves (sold separately). By swapping in a bushing with a different ID, you can change the size of your bit and still use the same hole in your fixture. All are made to tight dimensional tolerances for consistent, accurate results, even as you change them in and out. They're also known as slip-fixed and renewable bushings.
Choose a sleeve with a length that matches the length of your bushing. To prevent bushings from spinning inside the sleeve as you drill, pair a standard sleeve with a lock screw, or use a locking sleeve. For faster placement in and removal from sleeves, use a handle.

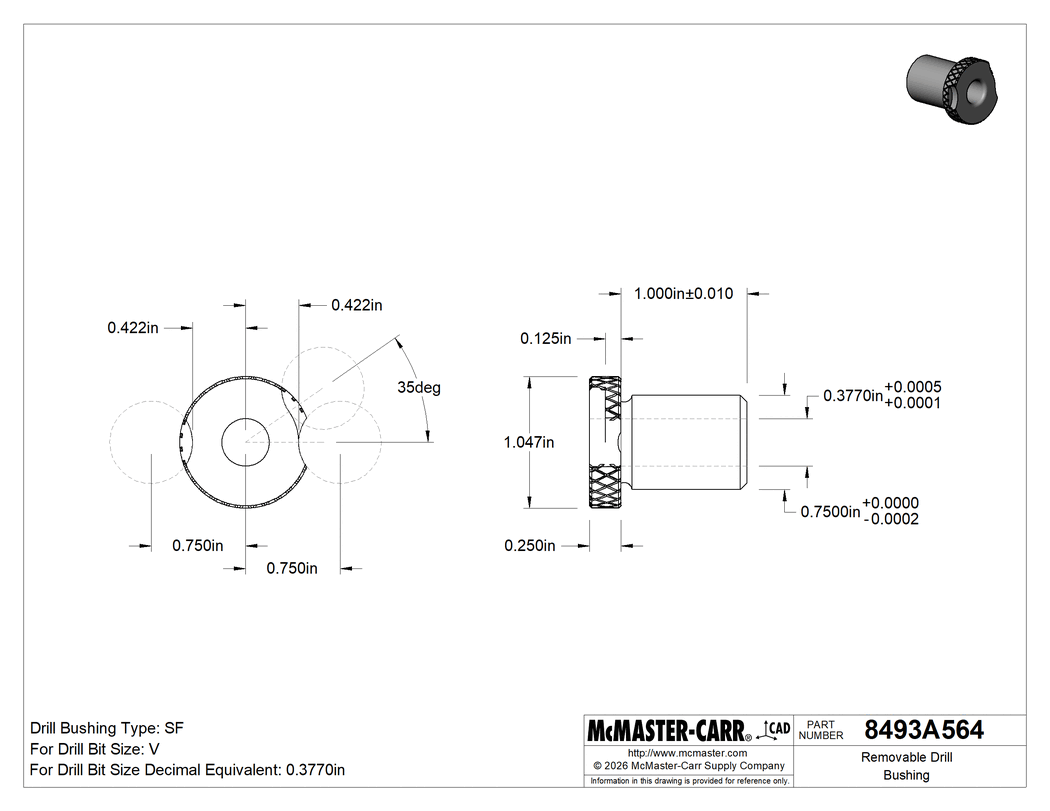

The information in this 3-D model is provided for reference only.
