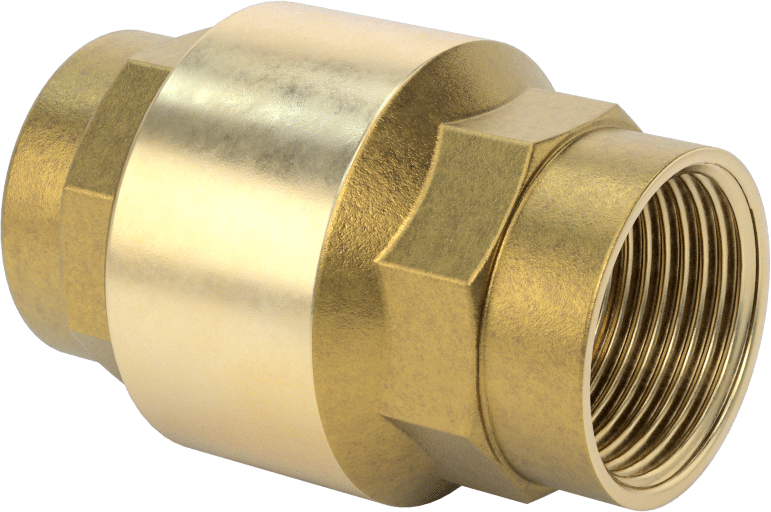

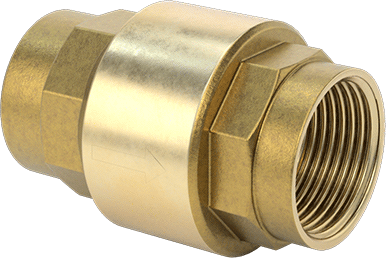

Heavy Duty Threaded Check Valve
for Drinking Water, 1 NPT Female
Body Material | Brass |
Check Valve Type | Spring-Loaded Piston |
Inlet | |
Connects to | Pipe |
Fitting Connection | Threaded |
Gender | Female |
Thread Type | NPT |
Connection Port | Inlet |
Outlet | |
Connects to | Pipe |
Fitting Connection | Threaded |
Gender | Female |
Thread Type | NPT |
Connection Port | Outlet |
Pipe Size | 1 |
Flow Coefficient (Cv) | 16.9 |
Maximum Pressure @ Temperature | 400 psi @ 170° F |
Minimum Opening Pressure | 0.5 psi |
Temperature Range | 10° F to 210° F |
End-to-End Length | 2 7/8" |
Mounting Position | Any Angle, Horizontal, Vertical |
Food Industry Standard | NSF/ANSI 61 |
For Use With | Drinking Water |
Piston Material | PEI |
Spring Material | 302 Stainless Steel |
Seal Material | Buna-N |
Actuation | Pressure |
Chemical Resistance | |
Excellent | Air, Diesel Fuel, Drinking Water, Ethanol, Fuel Oil, Gasoline, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Natural Gas, Oil, Propane, Water |
Moderate | Argon, Butane, Carbon Dioxide, Ethylene Glycol, Helium, Krypton, Neon, Oxygen, Soap Solutions, Steam, Xenon, Sodium Hydroxide (Caustic Soda) (25% Concentration) |
Poor | Acetone, Ammonia, Chlorine, Methyl Ethyl Ketone (MEK), Mineral Spirits, Salt Water, Sulfuric Acid, Toluene (Methylbenzene), Xylene, Citric Acid (25% Concentration), Citric Acid (50% Concentration), Citric Acid (100% Concentration), Hydrochloric Acid (25% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Nitric Acid (25% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Phosphoric Acid (25% Concentration), Phosphoric Acid (50% Concentration), Phosphoric Acid (100% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (75% Concentration), Sodium Hydroxide (Caustic Soda) (100% Concentration), Sodium Hypochlorite (Bleach) (25% Concentration), Sodium Hypochlorite (Bleach) (50% Concentration), Sodium Hypochlorite (Bleach) (100% Concentration) |
Environment | Food and Beverage |
Fitting Type | Connector |
Shape | Straight |
Valve Function | Backflow Prevention |
Valve Type | Check |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Country of Origin | Italy |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848130.1090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
For more durability than plastic, these valves have a metal body. They meet NSF/ANSI 61 for drinking water service. All open to allow flow in one direction and close when flow stops or reverses.
Flow Coefficient (Cv)—Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

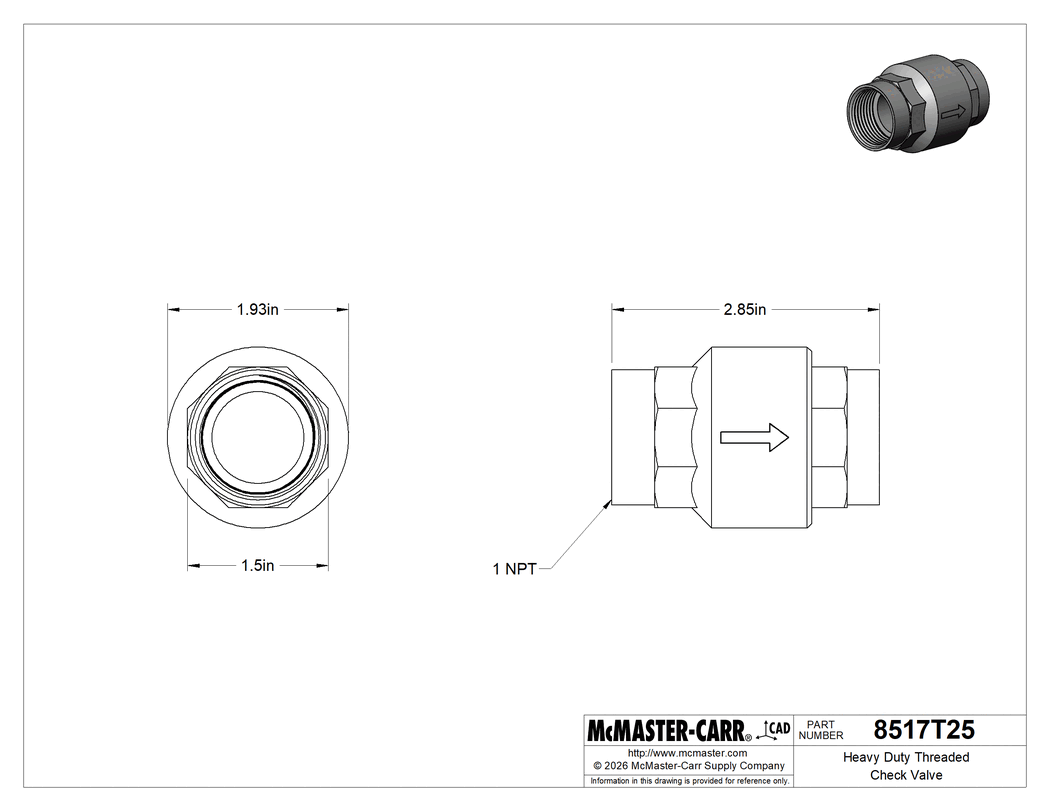

The information in this 3-D model is provided for reference only.
