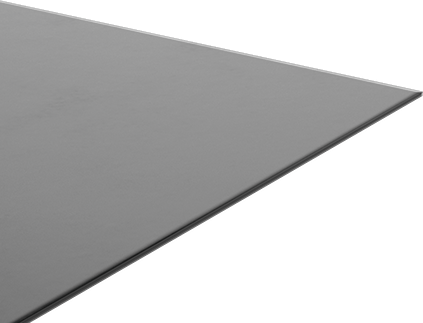

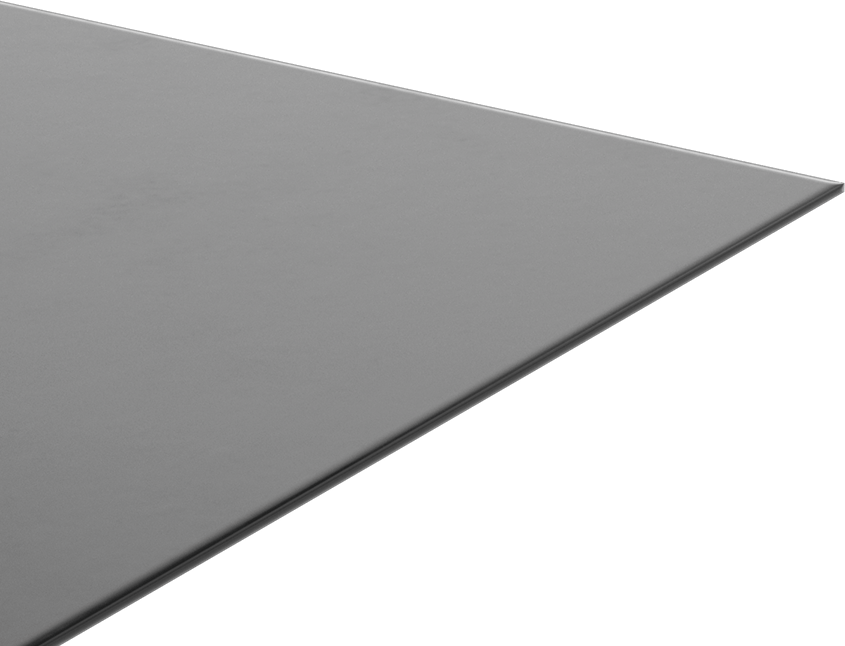

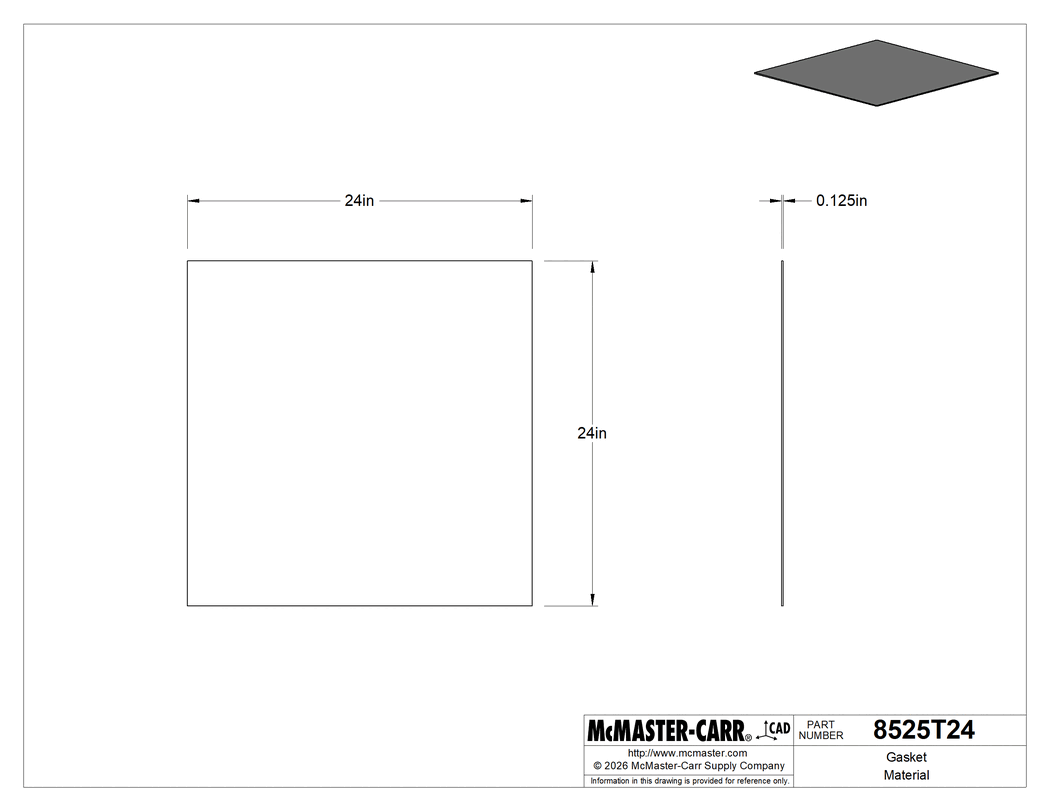

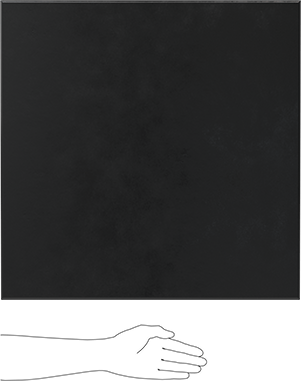

Gasket Material
Oil-Resistant Compressible Buna-N, 24" x 24" Sheet, 1/8" Thick
2-D PDF
000000 each
8525T24
In stock
8525T24
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Backing Type | Plain |
Shape | Sheet |
Thickness | 1/8" |
Width | 24" |
Length | 24" |
Maximum Pressure | 700 psi |
Temperature Range | -20° F to 170° F |
Hardness | Durometer 60A |
Hardness Rating | Medium Hard |
Color | Black |
Specifications Met | ASTM D2000 |
Material | Buna-N |
Performance | Compressible, Oil Resistant |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 400821.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Resistant to oil, water, and salts, these resilient Buna-N gasket sheets compress to ensure a tight seal. Cut with scissors or a utility knife.
The information in this 3-D model is provided for reference only.
