    Gasket Material

    Water- and Refrigerant-Resistant Neoprene, 12" x 12", 1/8" Thick

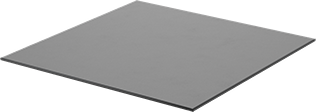

    Image of Product. Front orientation. Gasket Material, Water- and Refrigerant-Resistant Neoprene, 12" x 12", 1/8" Thick.

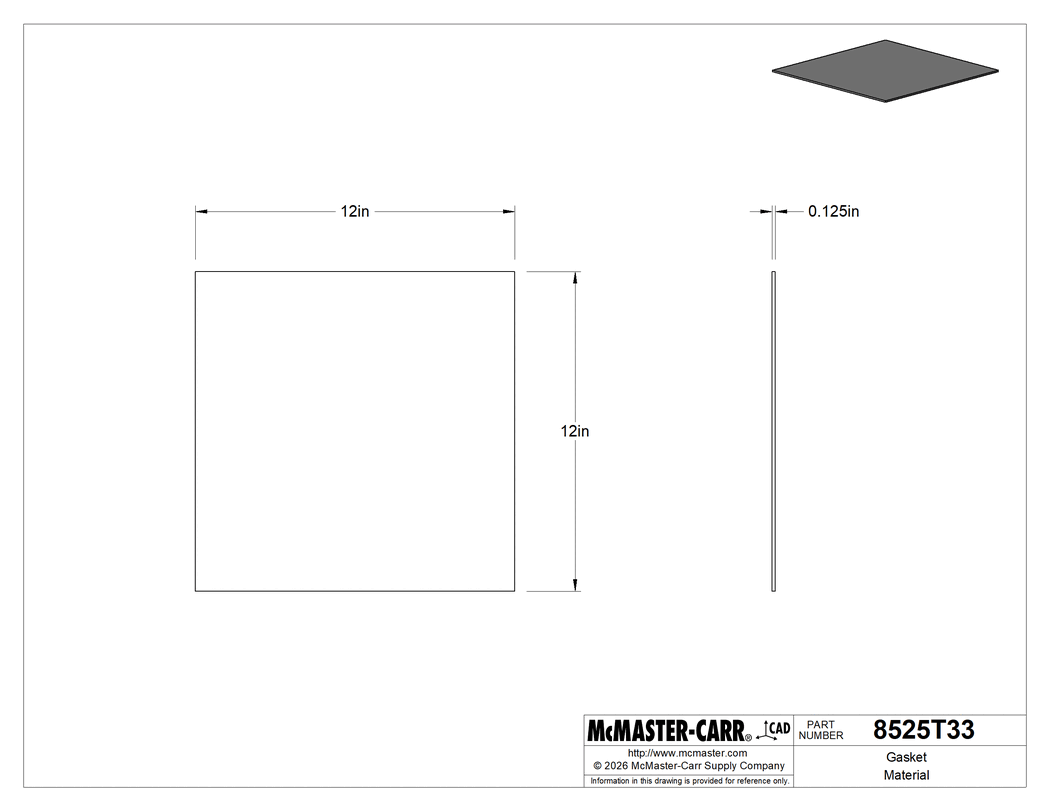

    Technical Drawing of Gasket Material, Water- and Refrigerant-Resistant Neoprene, 12" x 12", 1/8" Thick.

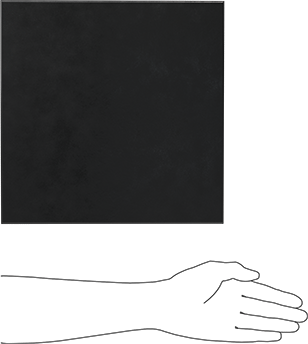

    Image of Product. Side1 orientation. Contains SizingReference. Gasket Material, Water- and Refrigerant-Resistant Neoprene, 12" x 12", 1/8" Thick.
    2-D PDF
    00000 each
    8525T33
    In stock
    8525T33
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    Shape

    Sheet

    Thickness

    1/8"

    Width

    12"

    Length

    12"

    Maximum Pressure

    1,000 psi

    Temperature Range

    -20° F to 170° F

    Hardness

    Durometer 70A

    Hardness Rating

    Hard

    Color

    Black

    Specifications Met

    ASTM D2000

    Material

    Neoprene

    Performance

    Refrigerant Resistant, Water Resistant

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    400811.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Use these neoprene gasket sheets in sealing applications. They damp vibration and bounce back after compression. Cut with scissors or a utility knife.

    The information in this 3-D model is provided for reference only.
