    Gasket Material

    High-Temperature Silicone Strip, 2" Wide x 36" Long x 1/16" Thick

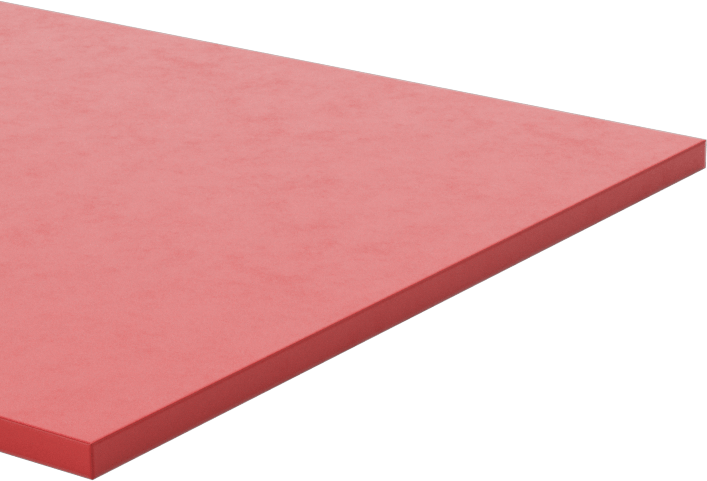

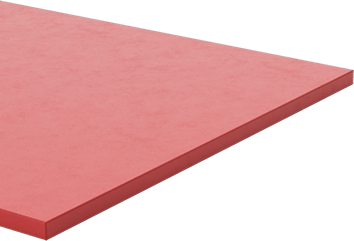

    Image of Product. Front orientation. Gasket Material, High-Temperature Silicone Strip, 2" Wide x 36" Long x 1/16" Thick.

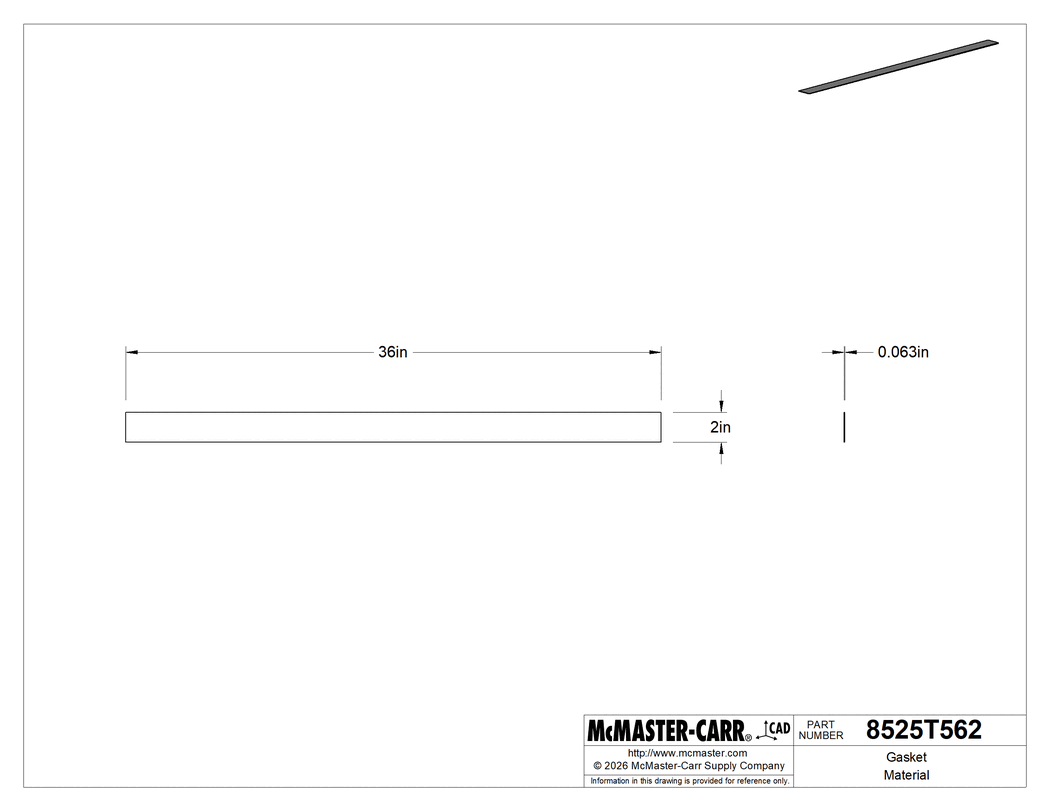

    Technical Drawing of Gasket Material, High-Temperature Silicone Strip, 2" Wide x 36" Long x 1/16" Thick.
    Image of Product. Side1 orientation. Contains SizingReference. Gasket Material, High-Temperature Silicone Strip, 2" Wide x 36" Long x 1/16" Thick.
    2-D PDF
    000000 each
    8525T562
    In stock
    8525T562
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    Shape

    Sheet

    Thickness

    1/16"

    Width

    2"

    Length

    36"

    Maximum Pressure

    700 psi

    Temperature Range

    -80° F to 450° F

    Hardness

    Durometer 60A

    Hardness Rating

    Medium Hard

    Color

    Red

    Specifications Met

    ASTM D2000

    Material

    Silicone Rubber

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    400821.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    In addition to withstanding temperatures up to 450° F, these silicone rubber gasket sheets resist water and salts. They will bounce back after compression. Cut with scissors or a utility knife.

    The information in this 3-D model is provided for reference only.
