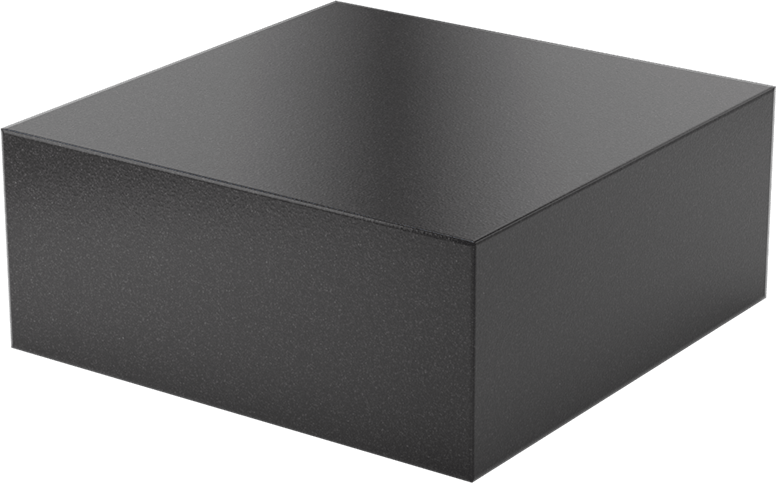

Wear-Resistant Black Nylon Sheet
6" x 6" x 2-1/2"
Thickness | 2 1/2" |
Thickness Tolerance | 0" to 0.025" |
Color | Black |
Width | 6" |
Width Tolerance | -1/8" to 1/8" |
Length | 6" |
Length Tolerance | -1/8" to 1/8" |
Fabrication | Extruded |
Minimum Temperature | -40° F |
Maximum Temperature | 185° F |
Tensile Strength | 11,200 psi to 12,300 psi |
Impact Strength | 0.6 ft·lbf/in to 1.4 ft·lbf/in |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Diesel Fuel, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Vegetable Oil |
Moderate | Acetone, Sodium Hydroxide (Caustic Soda), Water |
Not Rated | Coolant, Fuel Oil, Heating Oil, Synthetic Oil |
Not Recommended | Acetic Acid (White Vinegar), Chlorine, Hydrochloric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Sodium Hypochlorite (Bleach), Sulfuric Acid |
Clarity | Opaque |
Coefficient of Friction | 0.26 |
Coefficient of Thermal Expansion | 4× 10^-5 /°F to 5.6 × 10^-5 /°F |
Comparable To | Ertalon, Tecamid, Ultramid, Zytel |
Density | 0.041 lb/in³ |
Dielectric Strength | 300 V/mil to 400 V/mil |
Flexibility | Semi-Rigid |
Flexural Modulus | 400,000 psi to 500,000 psi |
For Use Outdoors | No |
For Use With | Acetone, Diesel Fuel, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Water |
Hardness | Rockwell R108 to Rockwell R121 |
Hardness Rating | Hard |
Material | Nylon |
Material Grade | Nylon 6/6 |
Performance | Extra High Strength, Highly Electrically Insulating, Thermally Stable, Ultra Low Friction, Wear Resistant |
Shape | Bar, Sheet |
Specifications Met | ASTM D5989, ASTM D6779 |
Texture | Smooth |
Tolerance Rating | Oversized |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 1% to 1.2% |
Country of Origin | Mexico, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392092.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
With a slippery surface that reduces friction, these wear-resistant nylon 6/6 sheets are often machined into bearings, gears, and valve seats.

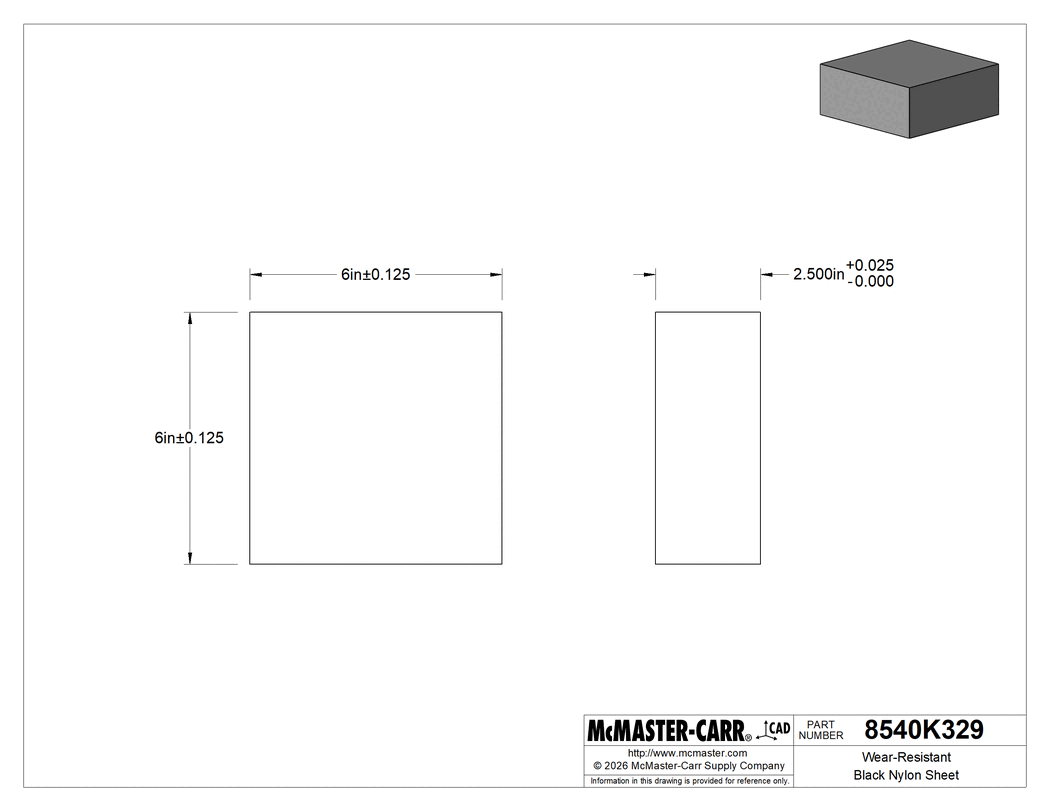

The information in this 3-D model is provided for reference only.
