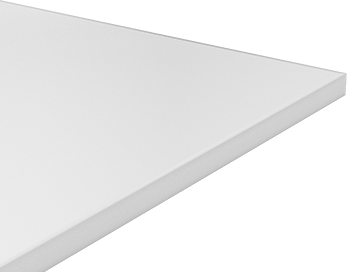

Chemical-Resistant Slippery Teflon® PTFE Sheet
White, 3/8" Thick, 12" Wide, 12" Long
Texture | Smooth Texture |
Thickness | 3/8" |
Thickness Tolerance | -0.019" to 0.038" |
Color | White |
Width | 12" |
Width Tolerance | -1/4" to 1/4" |
Length | 12" |
Length Tolerance | -1/4" to 1/4" |
Fabrication | Molded |
Temperature | -350° F to 500° F |
Tensile Strength | 2,170 psi to 2,800 psi |
Impact Strength | 3.5 ft·lbf/in |
Flammability Rating | UL 94 V-0 |
Backing Type | Plain |
Chemical Resistance (Excellent) | Acetic Acid (White Vinegar), Acetone, Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Coefficient of Friction | 0.05 to 0.08 |
Coefficient of Thermal Expansion | 7× 10^-5 /°F |
Comparable To | Teflon® PTFE |
Dielectric Strength | 500 V/mil |
Environment | Food and Beverage, Outdoor |
Flexibility | Flexible |
Flexural Modulus | 72,000 psi to 102,000 psi |
Food Industry Standard | FDA Compliant 21 CFR 177.1550 |
For Use Outdoors | Yes |
For Use With | Food, Acetic Acid (White Vinegar), Acetone, Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Durometer 52D to Durometer 55D |
Hardness Rating | Medium Soft |
Material | Teflon® PTFE |
Performance | Chemical Resistant, Flame Retardant, Highly Impact Resistant, Machinable, Ultra Electrically Insulating, Ultra High Temperature, Ultra Low Friction, Ultra Moisture Resistant, Ultra-Low Temperature, Wear Resistant |
Density | 0.077 lb/in³ |
Shape | Sheet |
Specifications Met | ASTM D3294 |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.01% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392099.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Made with Teflon® PTFE resins, these sheets surpass most plastic when it comes to chemical resistance and performance in extreme temperatures. In addition to resisting most solvents, they are excellent electrical insulators. They're easy to machine and have a naturally slippery surface that makes them a good choice for bearings, gears, and parts that slide and roll.

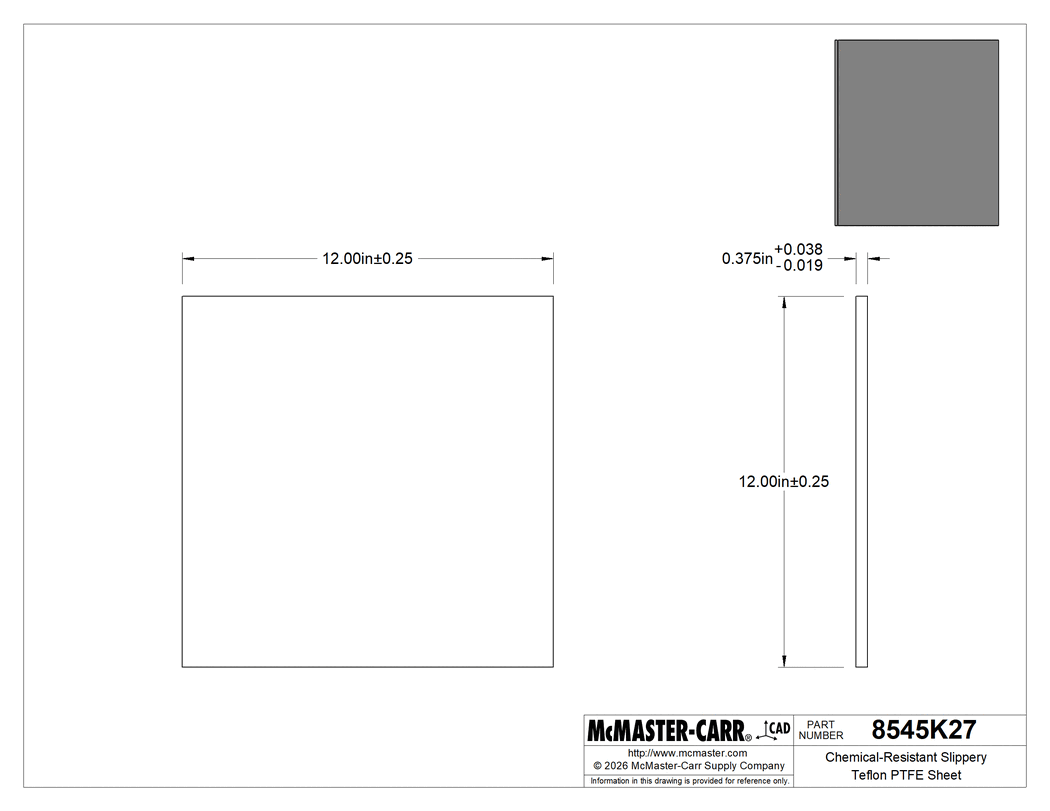

The information in this 3-D model is provided for reference only.
