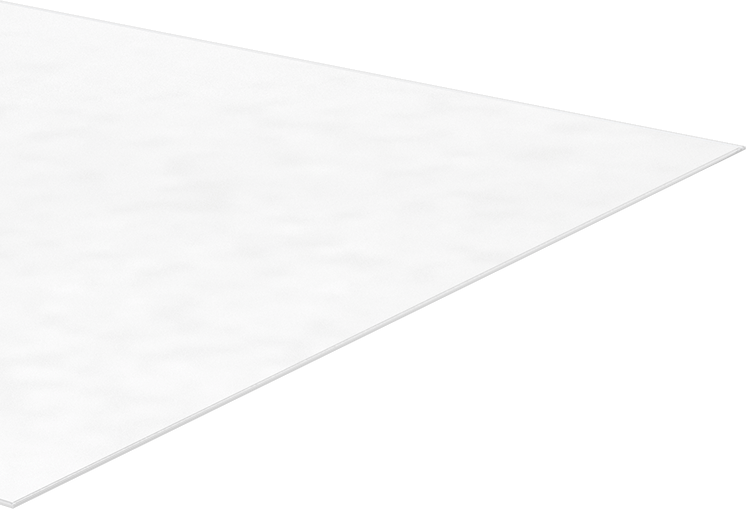

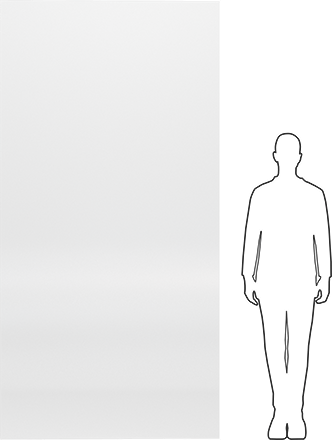

Clear Impact-Resistant Polycarbonate
UV-Resistant, 96" x 48" x 1/8"
Thickness | 1/8" |
Thickness Tolerance | -0.013" to 0" |
Width | 48" |
Width Tolerance | 0" to 1/4" |
Length | 96" |
Length Tolerance | 0" to 1/4" |
Fabrication | Extruded |
Temperature | -40° F to 212° F |
Color | Clear |
Tensile Strength | 9,500 psi |
Impact Strength | 18 ft·lbf/in |
Specifications Met | UL 972 |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Mineral Oil, Nitric Acid, Phosphoric Acid, Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Moderate | Diesel Fuel, Fuel Oil, Heating Oil, Kerosene |
Not Recommended | Acetone, Chlorine, Coolant, Gasoline, Hydraulic Fluid, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach) |
Clarity | Clear |
Coefficient of Friction | Not Rated |
Coefficient of Thermal Expansion | 3.75 × 10^-5 /°F |
Comparable To | Hygard, Hyzod, Lexan, Lexgard, Makrolon, Margard, Tuffak, Zelux |
Density | 0.043 lb/in³ |
Dielectric Strength | 380 V/mil |
Environment | Outdoor |
Flammability Rating | UL 94 HB |
Flexibility | Semi-Rigid |
Flexural Modulus | 345,000 psi |
For Use Outdoors | Yes |
For Use With | Acetic Acid (White Vinegar), Diesel Fuel, Fuel Oil, Heating Oil, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Mineral Oil, Nitric Acid, Phosphoric Acid, Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Rockwell R118 |
Hardness Rating | Hard |
Light Transmission | 86% |
Material | Polycarbonate |
Performance | Clear, Easy Thermoform, Extra High Strength, Flame Retardant, Highly Electrically Insulating, Moisture Resistant, Thermally Stable, Ultra Impact Resistant, UV Resistant |
Shape | Sheet |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.15% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392061.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
Enhanced UV resistance makes these polycarbonate sheets better than standard polycarbonate for outdoor use. Polycarbonate is half the weight of glass and is comparable to Lexan, Hyzod, Tuffak, and Makrolon. This material has greater impact strength than Plexiglas® acrylic and can be used in similar applications.
UL 972—Sheets rated UL 972 are burglar resistant.

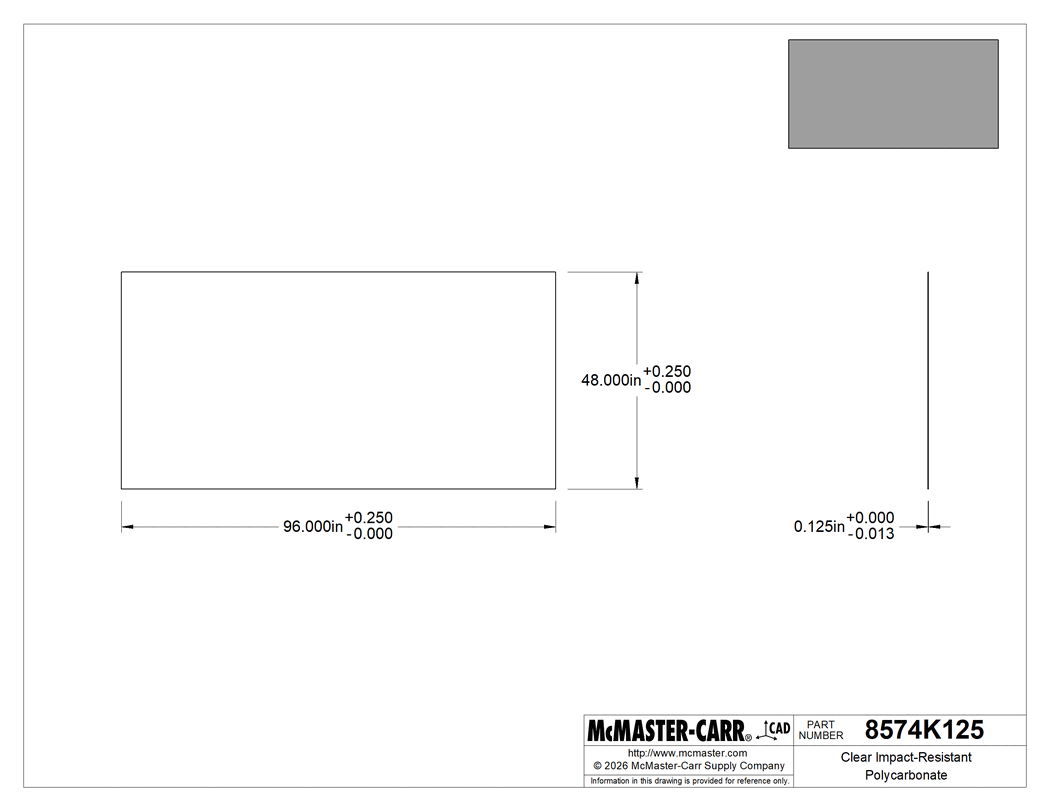

The information in this 3-D model is provided for reference only.
